Page 358 of 458 Installing earthquake bracing
NN43021-310 Standard 02.02 October 2008
6 For a multiple-column system, install NT8D49AA Spacer Kits between
adjacent columns:
a. Attach gaskets to both sides in the front section of each spacer (see
Figure 122 on page 358).

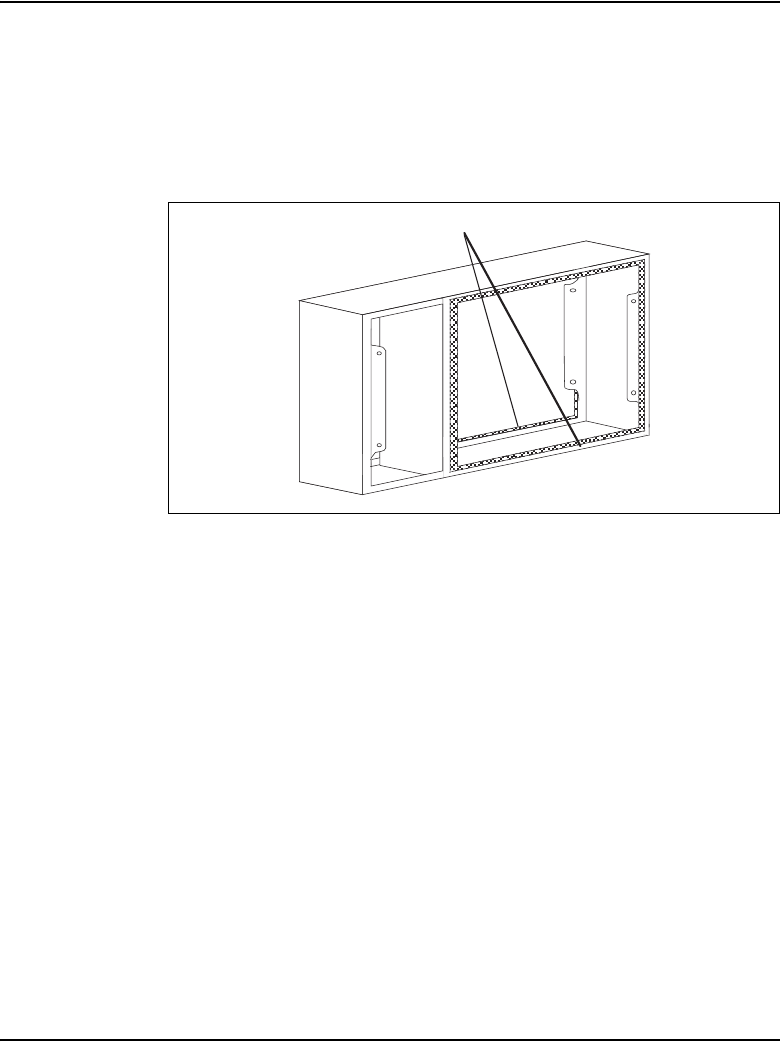

Figure 122
Positioning spacer gaskets
b. Attach a spacer to one side of each module that will be next to
another module, except on the end column (see Figure 122 on
page 358 and Figure 123 on page 359). Insert the screws through
holes in the trim panels.
FrontRear
Gasket placement
553-5641
