Connecting the Network modules to the Core/Net modules
Each Network shelf contains one 3PE card. These 3PE cards are connected to
the Fanout panel in the back of the Core/Net shelves.
Figure 105 on page 247, Figure 106 on page 248, and Figure 107 on
page 249 show the location of the Fanout panel and 3PE cables on the Core/
Net backplane.

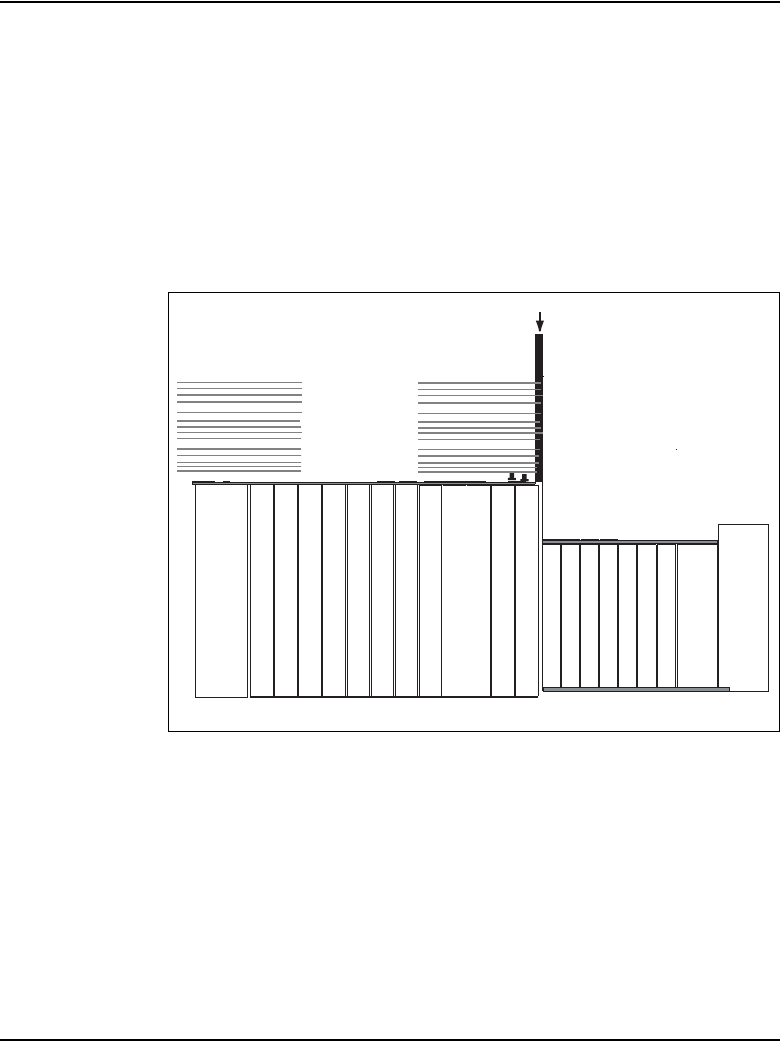

Figure 105
3PE Fanout panel in the Core/Net module (top view)
PS
Conference/TDS
Network card
Superloop Network card
NET
Superloop Network card
NET
Superloop Network card
Peripheral Signaling card
3-Port Extender card
cCNI Slot c9
cCNI Slot c10
cCNI Slot c11
cCNI Slot c12
Sys Util
CP PIV
Termination Panel
553-9488
IGS/FIJI card
NET
NT8D76 cables
to Network module
(factory installed)
