Cabling Common Equipment in a Multi Group system Page 235 of 458
Communication Server 1000M and Meridian 1 Large System Installation and Commissioning
FIJI to FIJI cabling
The FIJI cards in Shelf 0 and Shelf 1 of each Network group (except Group 0)
must be directly connected with a NTRC47AA FIJI to FIJI Synch Cable
cable.
Procedure 36
Connecting the FIJI to FIJI cables
1 Connect a NTRC47AA cable from J4 to J4 of the FIJI cards in each
Network group, except Group 0 (Figure 99 on page 235).
2 Do NOT connect a cable in Group 0. The FIJI to FIJI connection in
Group 0 is made as part of the Clock Controller connections described on
page 236.

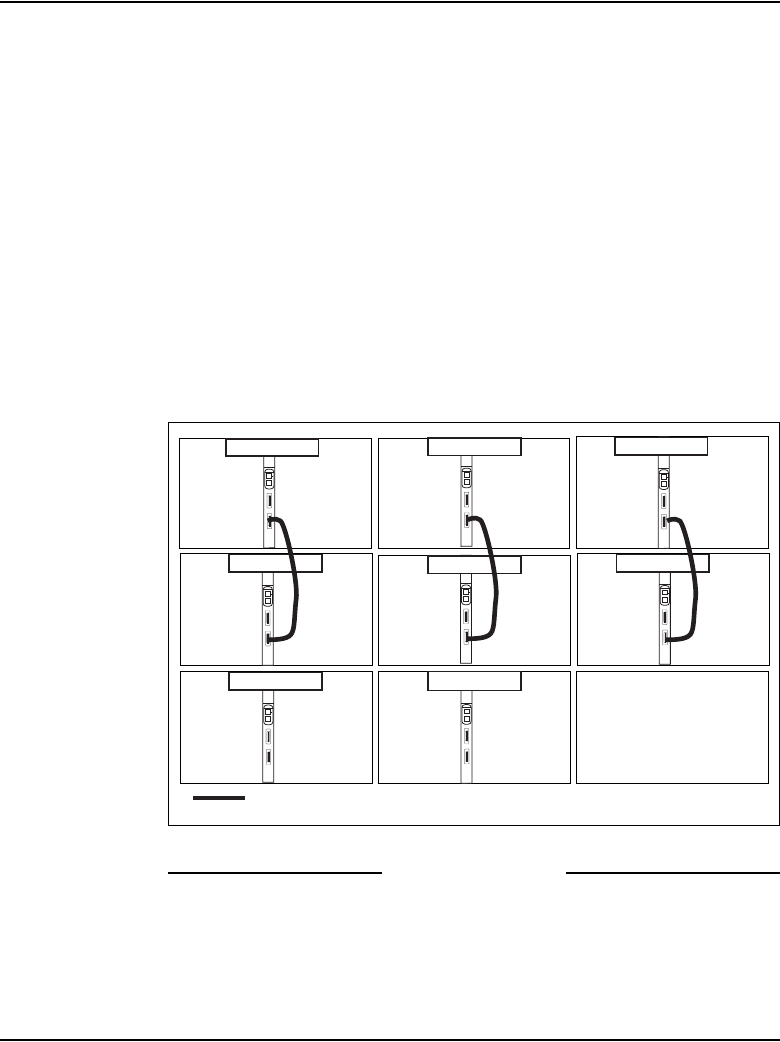

Figure 99
FIJI Shelf 0 to FIJI Shelf 1 connections
End of Procedure
