26 Chassis installation fundamentals
• Ethernet Routing Switch 8348TX-PWR module or
• Ethernet Routing Switch 8348GTX-PWR module
CAUTION
Risk of equipment damage
Do not install Ethernet Routing Switch 8300 modules and
Ethernet Routing Switch 8100 or 8600 modules within the same
chassis. Ethernet Routing Switch 8300 Series software does
not support mixed configurations. A mixed configuration can
damage the modules and void your warranty.

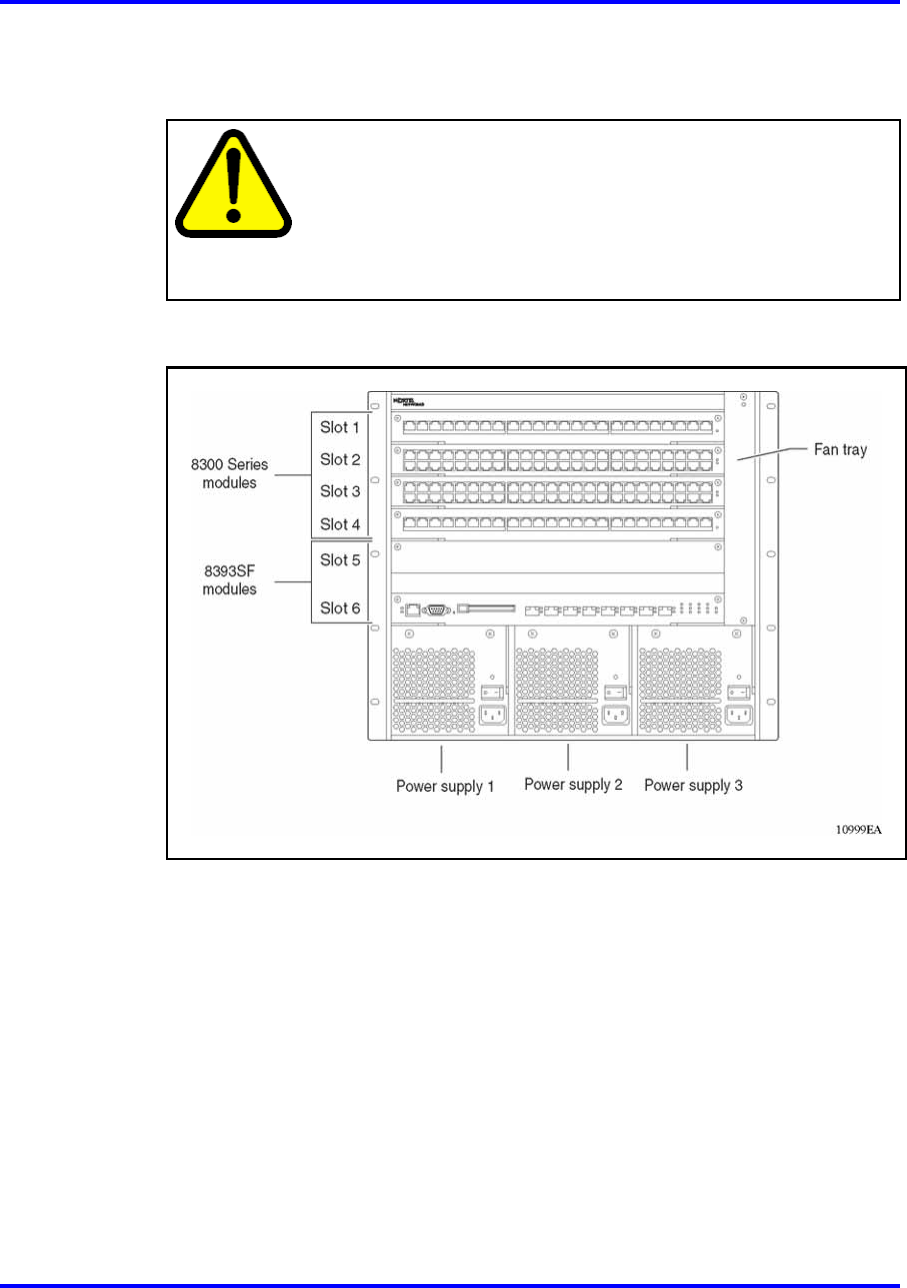

Figure 2
8306 chassis and components
Power supplies
The Ethernet Routing Switch 8306 and 8310 chassis each provide three
bays for either AC or DC power supplies.
The Ethernet Routing Switch 8306 and 8310 chassis supports the
following AC power supplies:
• 8301AC
• 8302AC
The Ethernet Routing Switch 8306 and 8310 chassis supports the
following DC power supplies:
Nortel Ethernet Routing Switch 8300
Installation — Chassis
NN46200-309 01.01 Standard
16 June 2008
Copyright © 2008 Nortel Networks
.
