22 Power supply installation
4

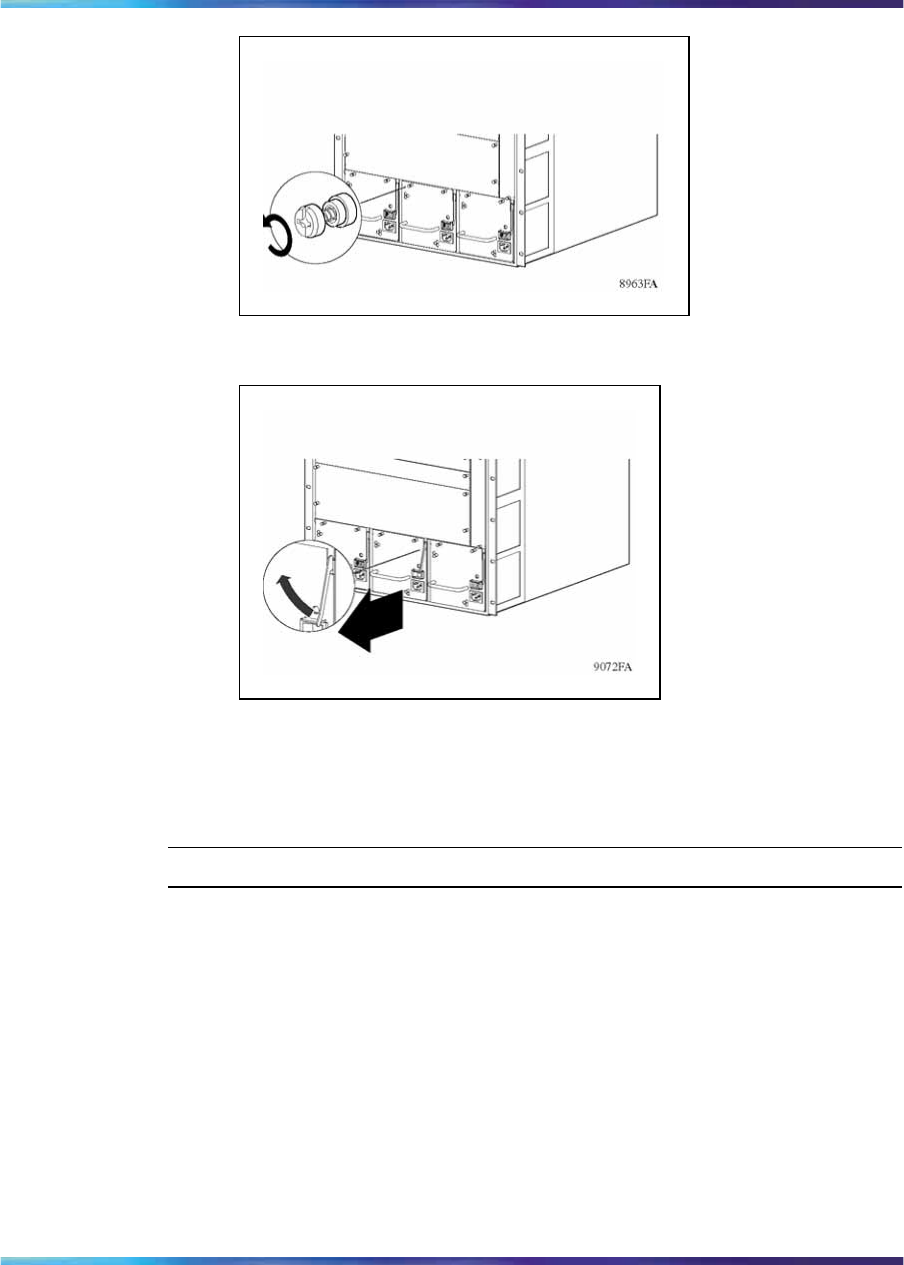

Lift the extractor lever to disconnect the power supply from the
backplane connector.
5
Pull the power supply out of the chassis.
6
Install a new power supply (see "Installing the AC power supply"
(page 18)) or install a power filler panel (see "Removing and
installing a power filler panel" (page 17)).
—End—
