User's Manual

62 Chapter 4 Web management interface basics
209321-A
RADIUS Authentication—sets a password for remote dial-in. If you
select this password type, you must also set up RADIUS authentication
from the Radius management page.
4 Type the password for read-only and read-write user access.
5 Click Submit to save the changes.
Setting remote dial-in access security
To set the parameters for remote dial-in access security:
1 From the main menu, select Administration > Security > Radius.
The Radius management page opens (Figure 26).

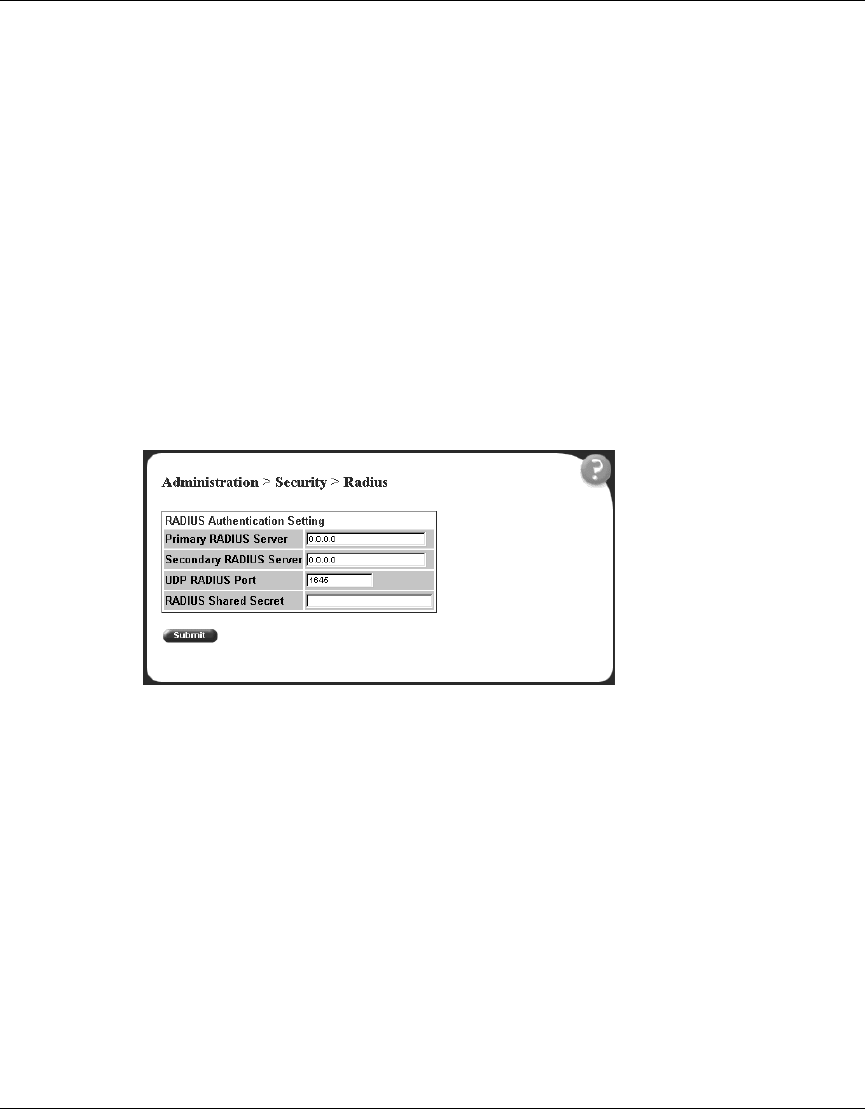

Figure 26 Radius management page
2 Type the IP addresses of the primary and secondary RADIUS servers.
3 Type the number of the user datagram protocol (UDP) port for the RADIUS
server. The default value is 1645.
4 Type a character string for the RADIUS Shared Secret. This parameter is a
special switch security code that provides authentication to the RADIUS
server. The value can be any contiguous ASCII string that contains at least
one printable character, up to a maximum of 35.
5 Click Submit.
