Chapter 3 Device Manager basics 39
Getting Started with the Business Policy Switch 2000 Management Software

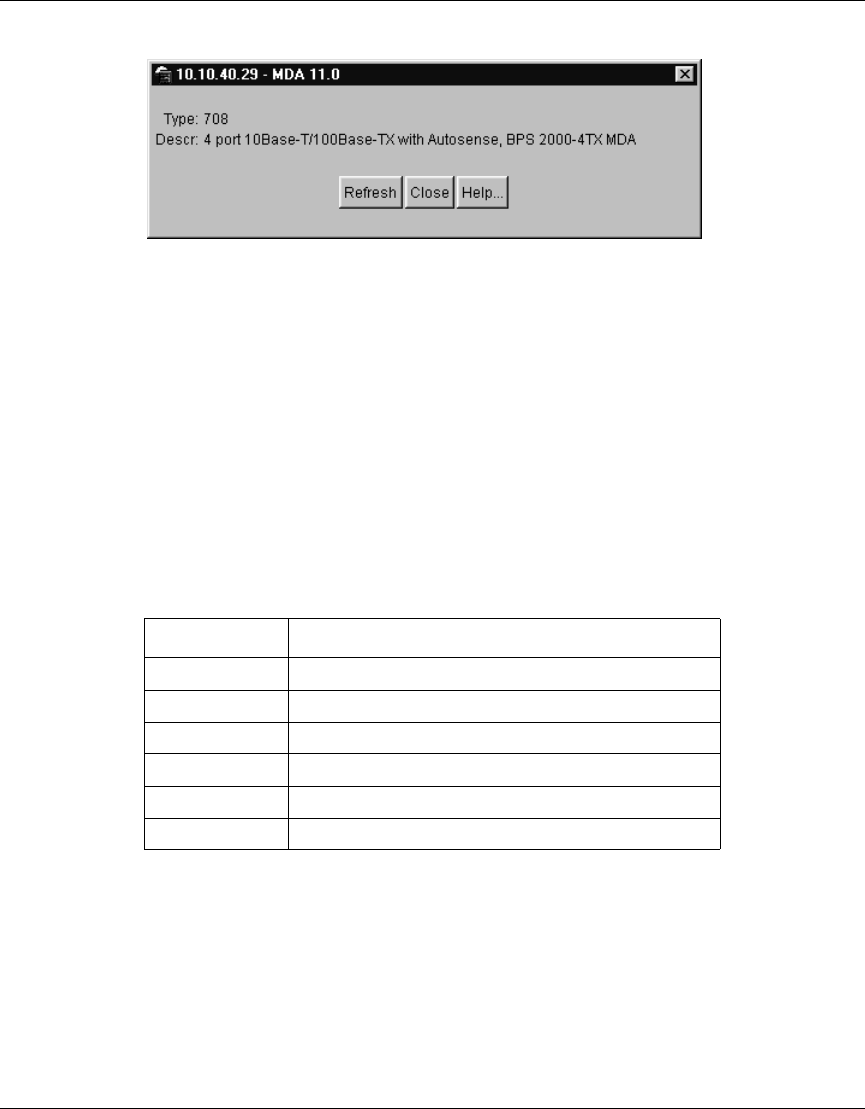

Figure 9 MDA dialog box
LEDs and ports
The color of LEDs in the device view is the same as the colors of the LEDs on the
physical switch. However, the device view does not show blinking activity of the
LEDs.
For a full description of the LEDs for the Business Policy Switch, refer to Using
the Business Policy Switch 2000.
The ports on the device view are color coded to show port status. Table 6 shows
the status assigned to each color.
In addition, the Help menu provides a legend that identifies the port colors and
their meanings (Figure 10).
Table 6 Port color codes
Color Description
Green Port is operating.
Red Port has been manually disabled.
Orange Port has no link.
Light Blue Port is in standby mode.
Dark Blue Port is being tested.
Gray Port is unmanageable.
