Chapter 3
Configuration via Local Pages
E-DOC-CTC-20051017-0169 v0.1
50
Starting and stopping a
connection.
A VPN connection is started automatically when data is sent or received that
complies with the traffic policy.

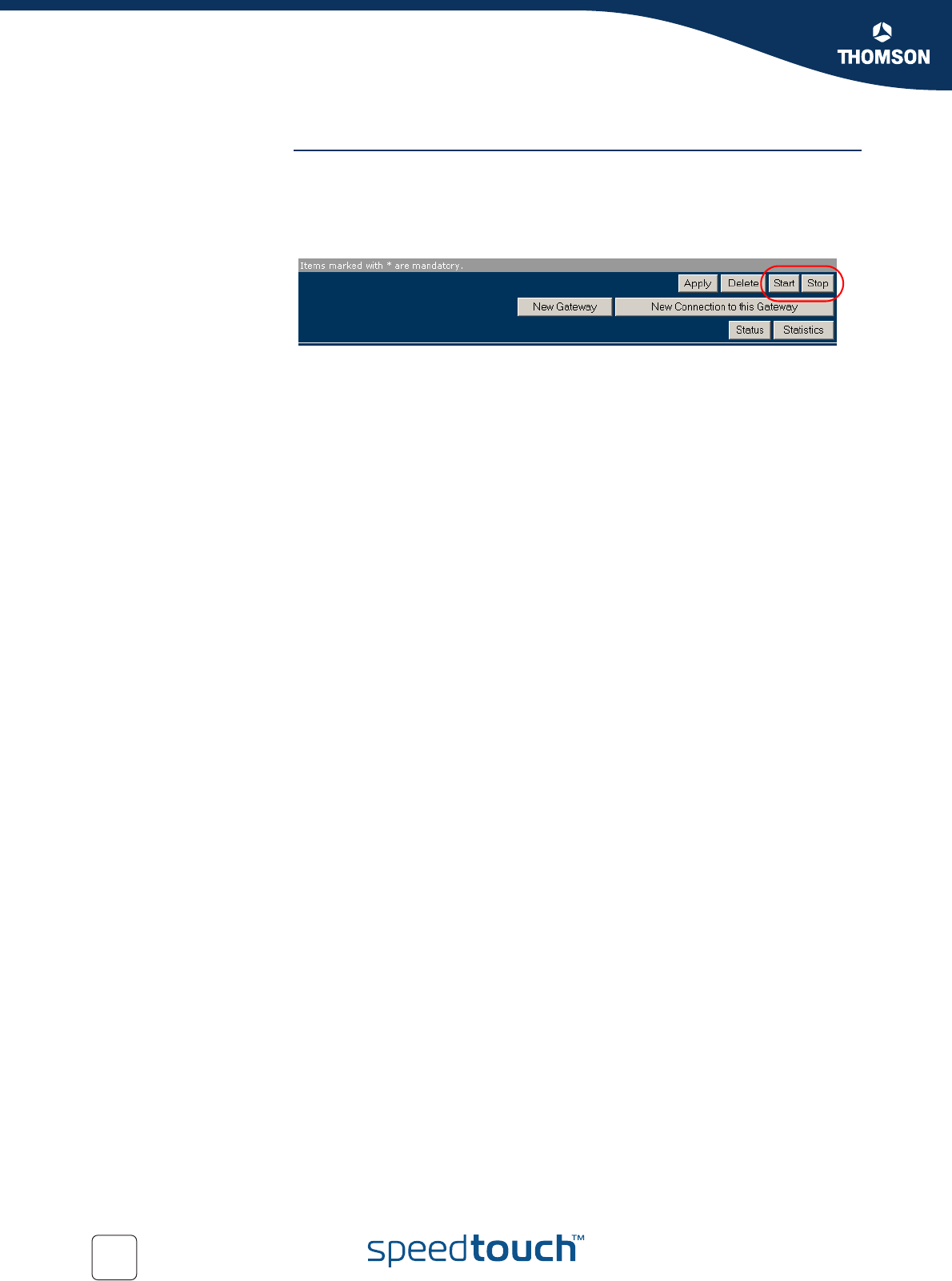

Alternatively, you can manually start and stop a VPN connection by selecting it in
the table. At the bottom of the page, Start and Stop buttons appear, as shown
below.
