SpeedTouchTM608WL and SpeedTouchTM620 only SpeedTouchTM608(WL)/620

Chapter 1
IPSec: Concept for secure IP connections
E-DOC-CTC-20051017-0169 v1.0
13
Internet Key Exchange The Internet Key Exchange (IKE) protocol is the negotiation protocol used to establish
an SA by negotiating security protocols and exchanging keys. First the IKE SA is set
up, then the IKE channel acts as a signalling channel to negotiate a general purpose
SA.

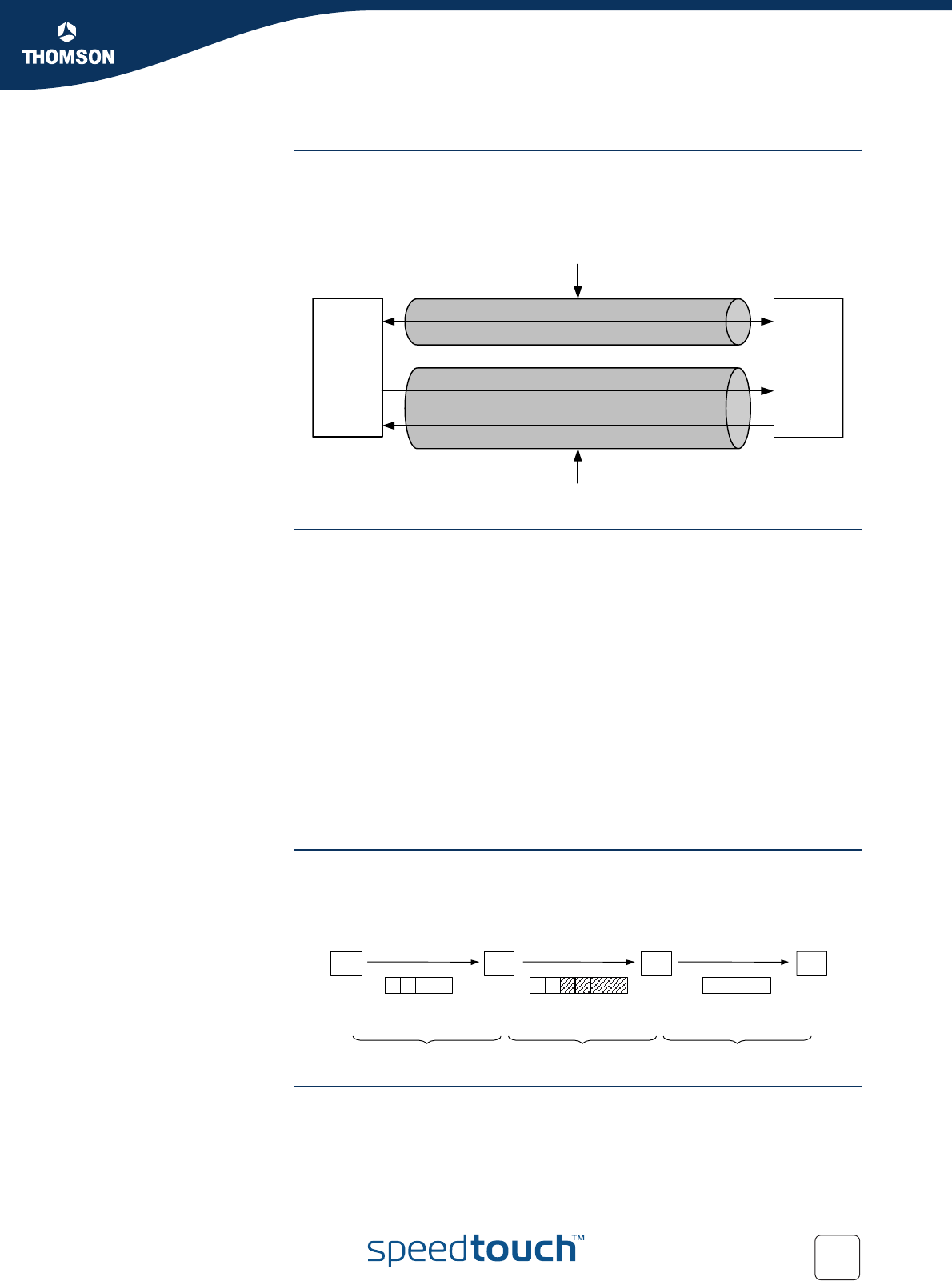

Security Associations Within the IKE protocol, two phases are distinguished to set up a tunnel between
two peers:
 Phase 1: negotiate a bi-directional IKE SA functioning as a signalling channel to
negotiate the Phase 2 SAs.
 Phase 2: negotiate unidirectional IPSec Security Associations that will carry
general purpose traffic.
The IKE SA is bidirectional, whereas the Phase 2 SA is unidirectional: one Security
Association must be set up in each direction. The initiator and responder cookies
uniquely identify an IKE SA while each PH2 SA is uniquely identified by a SPI
(Security Parameter Index) value.
Per convention, throughout this document the IKE SA is referred to as the Phase 1
SA and the ESP SAs are referred to as the Phase 2 SA:
 Phase 1 SA = IKE SA = secure Phase 1 tunnel
 A pair of Phase 2 SAs = a secure Phase 2 tunnel
Tunnel Mode Using tunnel mode, the complete IP packet (including its IP header) is encapsulated
and a new IP header is attached. This allows for the original source and destination IP
addresses to be hidden from the outside world.
Transport Mode In transport mode, the IP header is transported unmodified. The use of transport
mode is limited to connections where the security gateway is acting as a host, e.g.,
for network management applications. When the SpeedTouch™ is managed from a
remote location via a VPN connection, transport mode can be used, because in this
case the SpeedTouch™ is the end user of this information stream.
Phase 1
Phase 2 tunnel
Phase 1 (IKE) SA
SA (ESP/AH)
SA (ESP/AH)
CDAB
AB C D
AB AB
Red network
node
Red network
node
SpeedTouch620 [1] SpeedTouch620 [2]
Red LAN Black LAN Red LAN
