bias set on any of the WSS switches configured for the AP. Only in the event of a physical port failure would
the AP attempt to boot from its port 2.

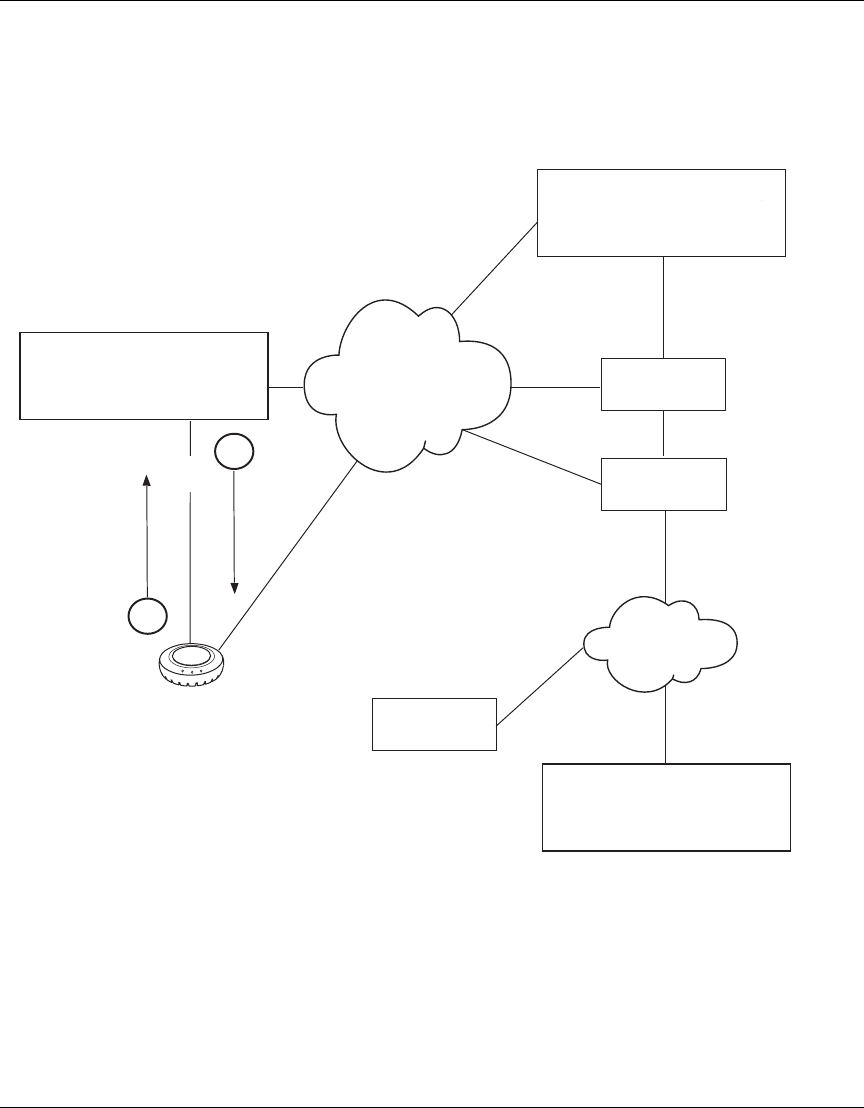

Figure 14. Dual-Homed AP Booting
1 AP sends a DHCP Discover message from the AP’s port 1.
2 Because WSS1 is configured for direct attachment, WSS1 responds privately to the AP and
provides the AP with its software image and configuration from WSS1. Only in the event of a
physical port failure would the AP attempt to boot from its port 2, in which case both WSS1
and WSS2 would respond to the broadcast Find WSS message.
Router
Router
Layer 2
Layer 2
1
DHCP Server
DAP 1
serial_id 0322199999
model ap-2330
DAP 1
serial_id 0322199999
model ap-2330
AP port 4
model ap-2330
PoE enabled
serial_id 0322199999
model ap-2330
Port
4
2
System IP address
10.10.10.4
WSS1
active APs = 49
System IP address
10.10.40.4
active APs = 34
WSS2
System IP address
10.10.50.4
active APs = 62
WSS3
