Configuring AP access points 235
Nortel WLAN Security Switch 2300 Series Configuration Guide
Example AP Boot over Layer 2 Network
Figure 12 shows an example of the boot process for an AP access point connected through a Layer 2 network. WSS1,
WSS2, and WSS3 each have a Distributed AP configuration for the AP.

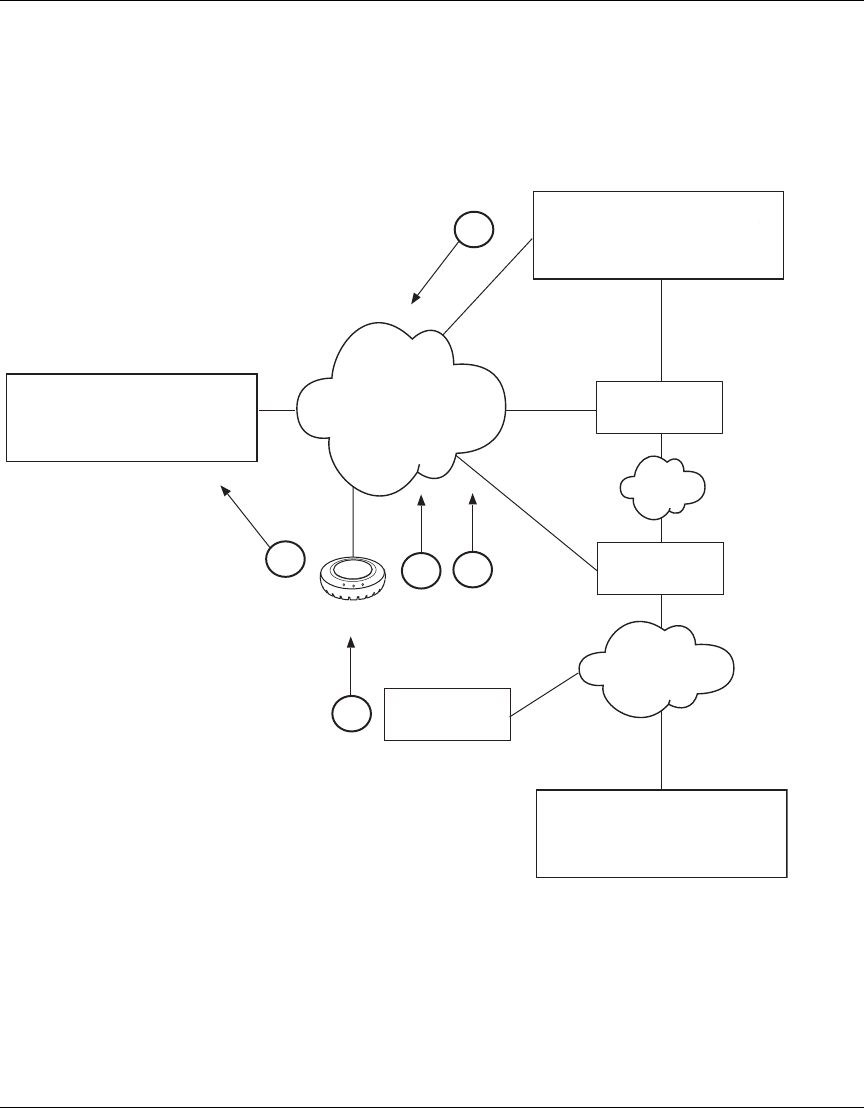

Figure 12. AP Booting over Layer 2 Network
1 The AP sends a DHCP Discover message from the AP’s port 1.
2 DHCP server receives the Discover message (through a relay agent) and replies with a DHCP Offer
message containing IP address for the AP, the gateway IP address for the AP’s IP subnet, the DNS server
address, and the domain name. AP then sends a DHCP Request message to the server and receives an
Ack from the server.
Router
Router
System IP address
10.10.10.4
WSS1
Layer 2
System IP address
10.10.40.4
WSS2
Layer 2
System IP address
10.10.50.4
WSS3
DHCP Server
DAP 1
serial_id 0322199999
model AP2330
bias = hi
g
h
DAP 1
serial_id 0322199999
model AP2330
bias = low
serial_id 0322199999
model AP2330
2
4
1
DAP 1
serial_id 0322199999
model AP2330
bias = high
3
5
Layer 2
active APs = 49
active APs = 34
active APs = 62
