Dual-Homed Direct and Distributed Connections to WSSs
Figure 9 shows an example of a dual-homed configuration in which one AP connection is direct and the other
is distributed over the network.

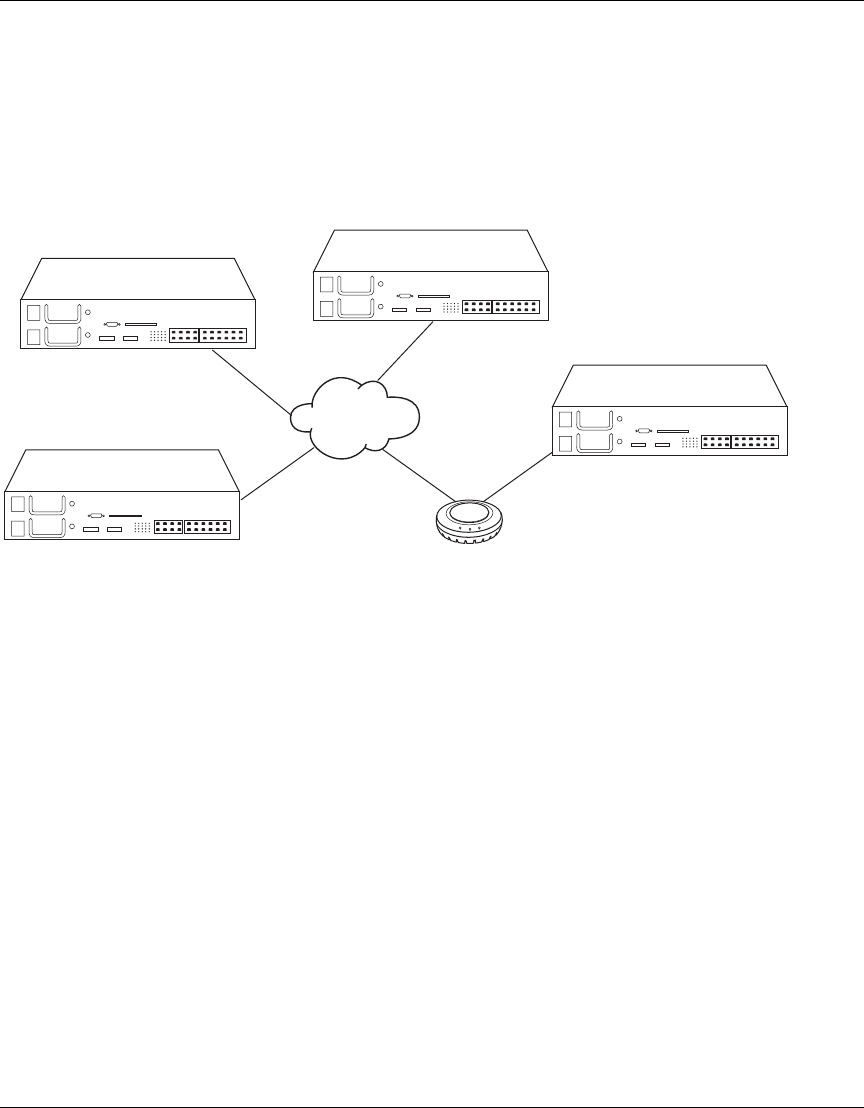

Figure 9. Dual-Homed Direct and Distributed Connections to WSSs
In this example, the AP’s port 1 is directly connected to an WSS switch. The AP always attempts to boot first
from the directly connected WSS switch. The AP attempts to boot using AP port 2 only if the boot attempt on
port 1 fails. If the active data link fails, the WSS reboots using the other link.
AP port 1
WSS
Network
backbone
WSS
WSS
WSS
AP port 2
