222 Configuring AP access points
320657-A

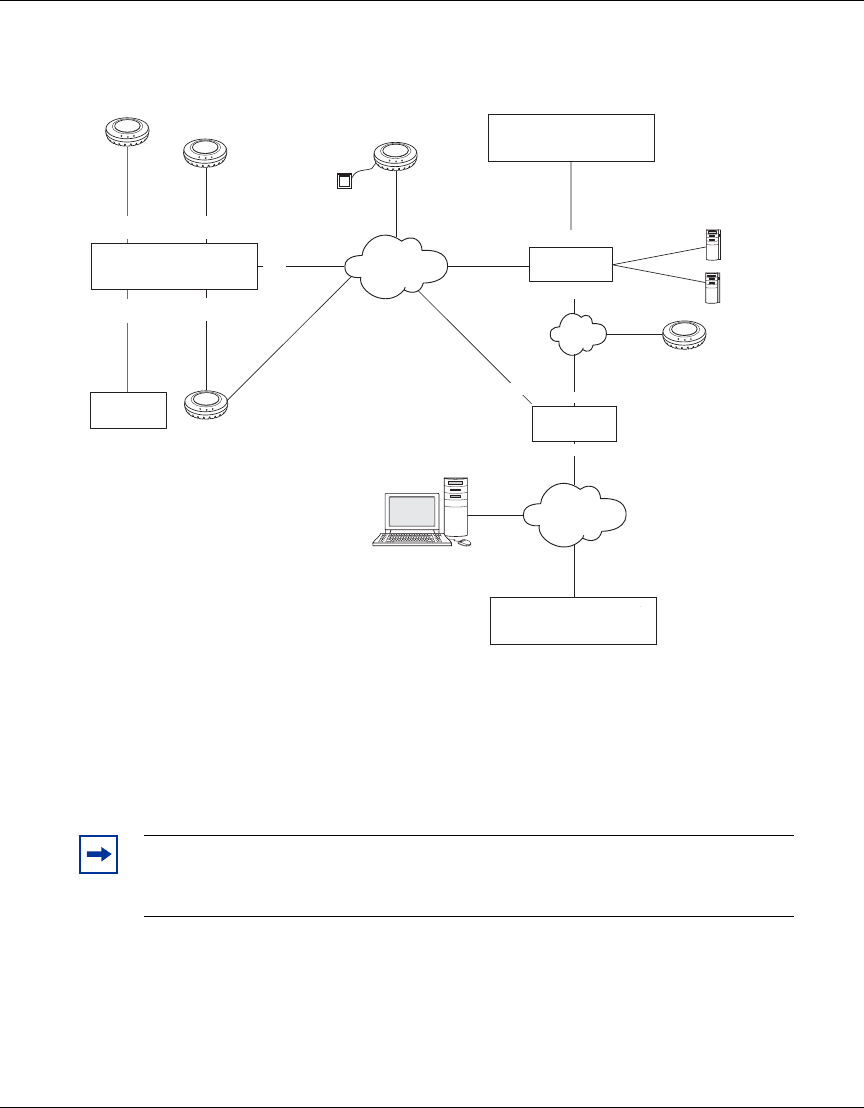

Figure 6. Example Nortel Network
To configure AP access ports, perform the following tasks, in this order:
• Specify the country of operation.
• Configure AP access ports, Distributed AP connections, and dual homing.
• If required, configure radio-specific parameters, which include the channel number, transmit power, and
external antenna model.
• Configure SSID and encryption settings in a service profile.
• Map the service profile to a radio profile, assign the radio profile to radios, and enable the radios.
Note. You do not need to set channels and power if you use RF Auto-Tuning to
set these values. You do not need to specify an external antenna model unless a
radio uses an external antenna.
AP-2330
Router
Router
Wired
authentication
client
System IP address
10.10.10.4
AP-2330
Port
1
Port
2
Port
4
WSS1
10.10.40.19/24
10.10.20.19/24
10.10.30.19/24
RADIUS
servers
10.10.70.20
10.10.70.40
10.10.60.18/24
10.10.60.19/24
WMS
Port
3
AP-2330
Layer 2
AP-2330
System IP address
10.10.40.4
WSS2
Layer 2
AP-2330
10.10.10.19/24
System IP address
10.10.50.4
WSS3
Port
5
VLANs on WSS1
VLAN 2 mgmt, port 5, 10.10.10.4/24
VLAN 4 blue, port 5, tag 20, 10.10.20.2/24
VLAN 3 red, port 5, tag 30
Layer 2
serial-id 0322199998
serial-id 0322199999
serial-id 0322199997
serial-id 0322199996
serial-id 0322199995
10.10.50.19/24
external antenna
model ANT-1060
