Equipment-to-Host Messages 3-37
3.12.2 Spooling Sequence
Messages are sent to the spool only if the Host has enabled these messages for spooling. This
precondition will not be repeated throughout this section. Assume that the messages referred to in this
section have been enabled for spooling.
While spooling is active, the Host may initiate primary messages and the Equipment will respond, if it is
in the COMMUNICATING state.

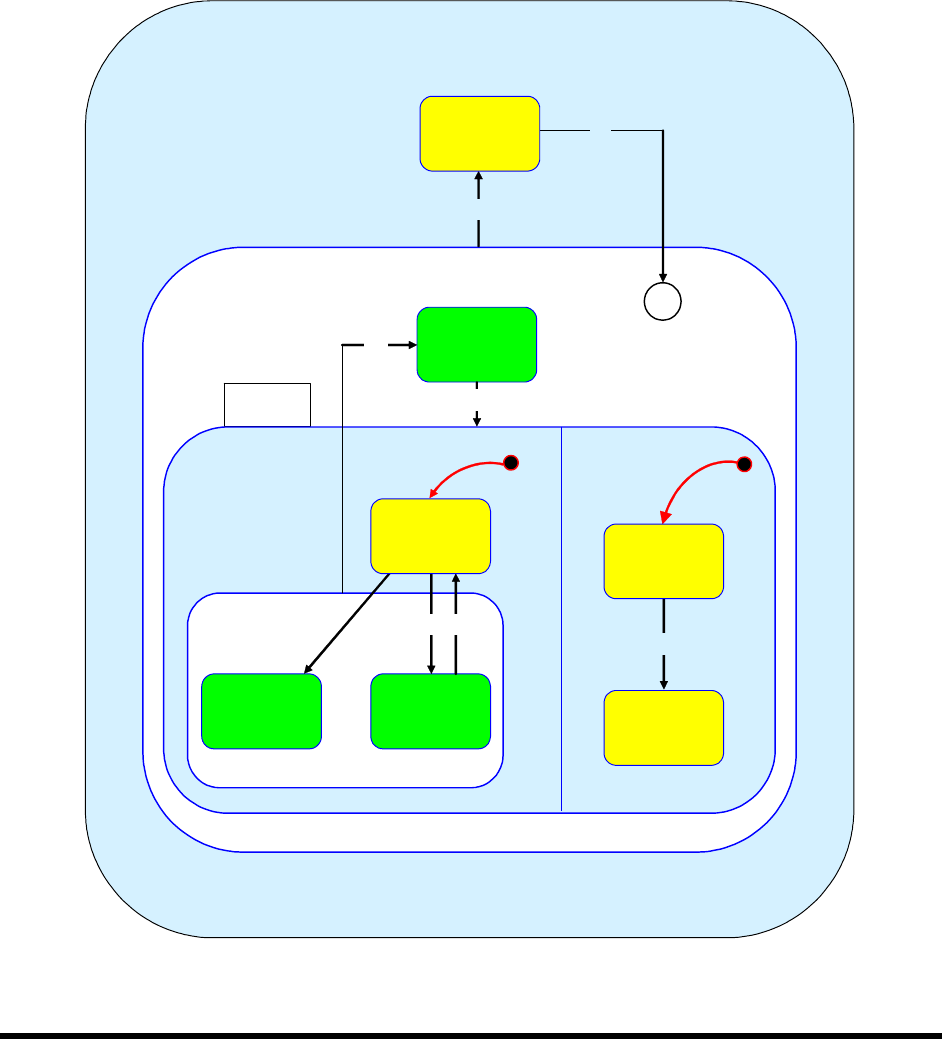

Figure 3-7 and Table 3-24 describe the spooling sequence. Refer to Table 3-24 for definition of numbers
used in the figure.
Spooling State
Power On
Spool
Active
Spool Output
H*
Spool
Inactive
Transmit
Spool
Spool
Full
2
4
5
6
78
10
Power Of
f
Spool
Not Full
Purge
Spool
1
3
No Spool
Output
9
Figure 3-7 Spooling State Diagram
