3-2 Equipment-to-Host Messages
3.1.1 Communications Finite State Description
Figure 3-1 illustrates the Communications Finite State Machine that the Equipment maintains.
"
NOTE Refer to Table 3-1 for definition of numbers used in Figure 3-1.
Communications State
Enabled
C
1
4
6
Disabled
Not
Communicating
Communicating
5
2 3

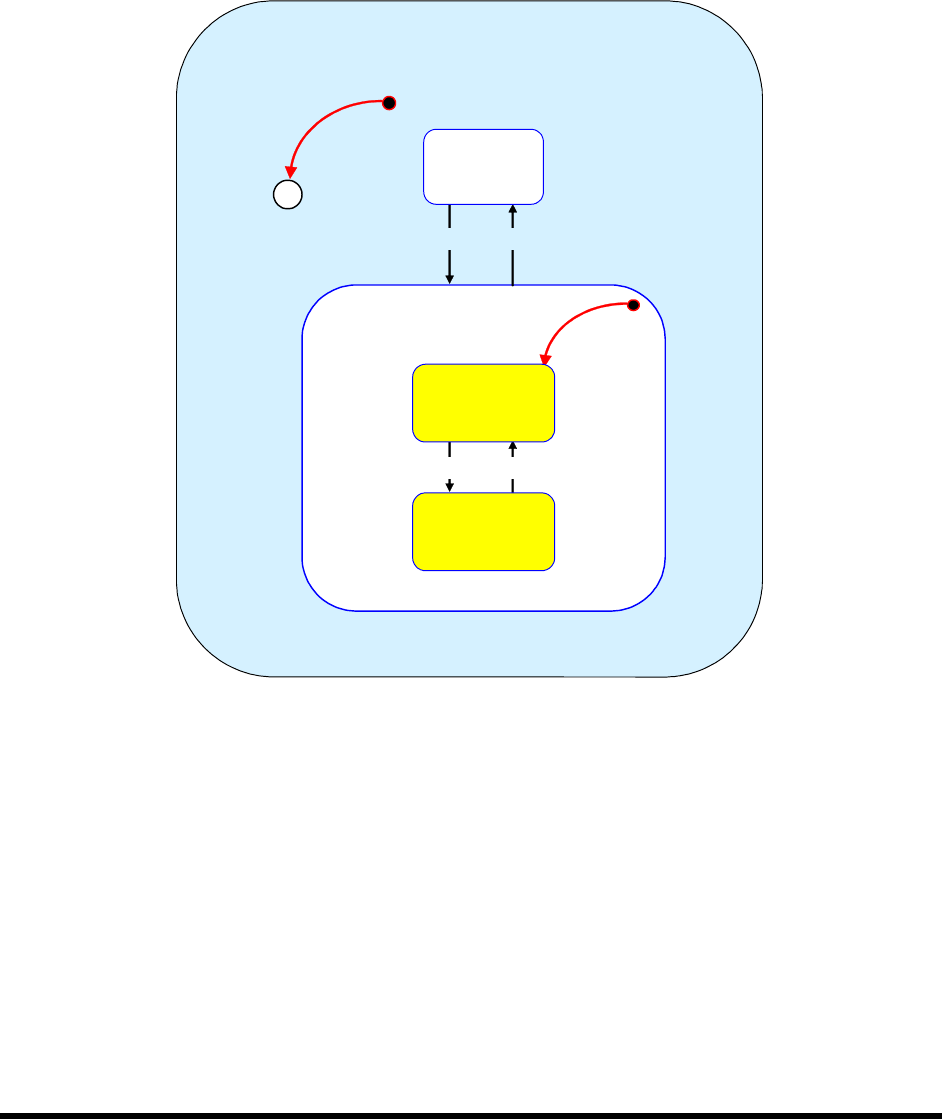

Figure 3-1 Communication Finite State Diagram
