1.11.6.4 Terminal Message Notification
After a terminal message has been received from the Host, the GEM status bar at the bottom of the FmNT
Run Window will start blinking. See Figure 1-1. GEM status bar displays the current communication,
control, and spooling state. If the user has selected the beeping option (through the SECS/GEM Setup
dialog box) a half-second interval beep is also provided to catch the user’s attention.
During run-time, the GEM status bar is displayed. The Run Window’s SECS/GEM tab is responsible for
displaying the incoming terminal message. See Figure 1-6 for all screen features.
FmNT v4.X - Run Window
Read Incoming
Message Here
Status Bar

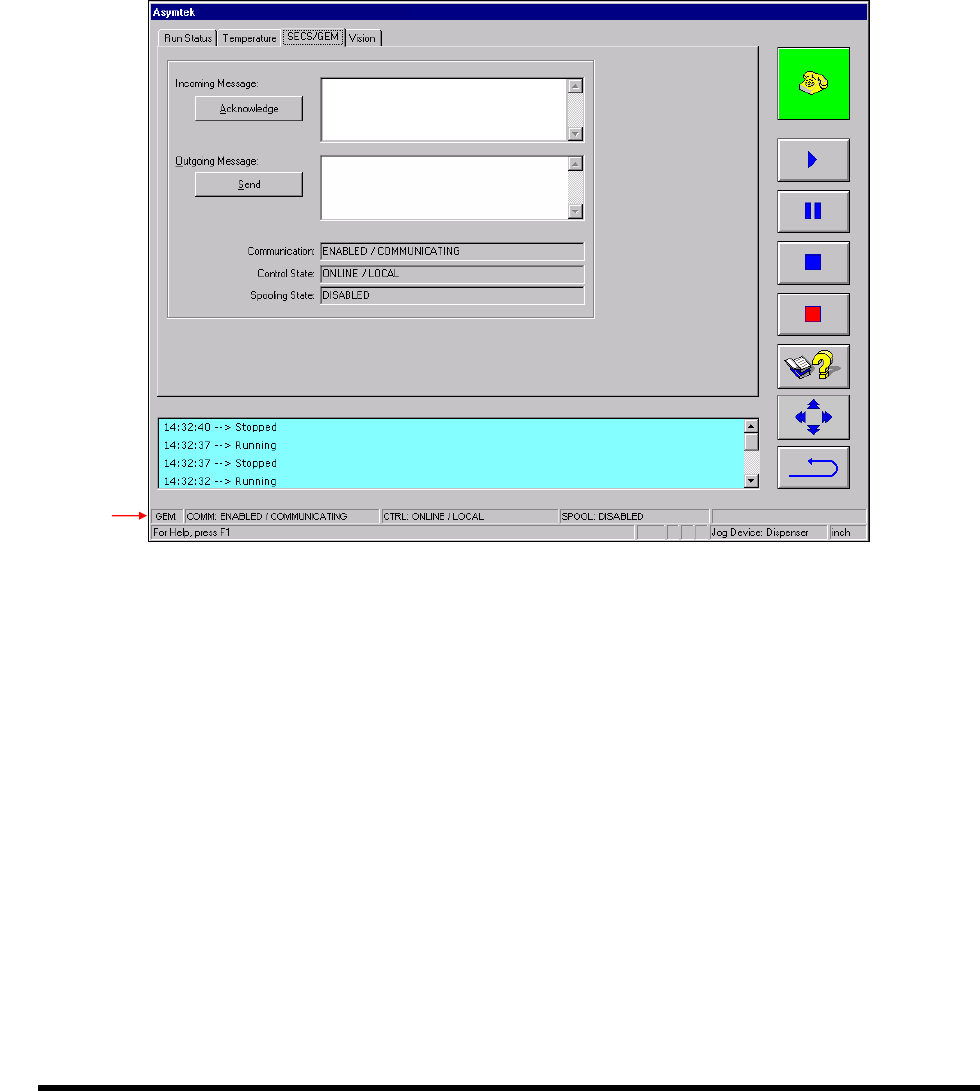

Figure 1-1 Terminal Message Notification
1-18 Equipment-to-Host Messages
