11. Open the micro-adjustment assembly (2) to the desired set-point.
Refer to Table 2 for the set-point settings.
NOTE: The preload and micro-adjustment settings will vary for different
adhesives. Consult your Nordson representative for particular adhesive
settings.
1234008A
3
4
5
6
7
9
8
1
2
11
10
0.254 mm
(0.010 in.)

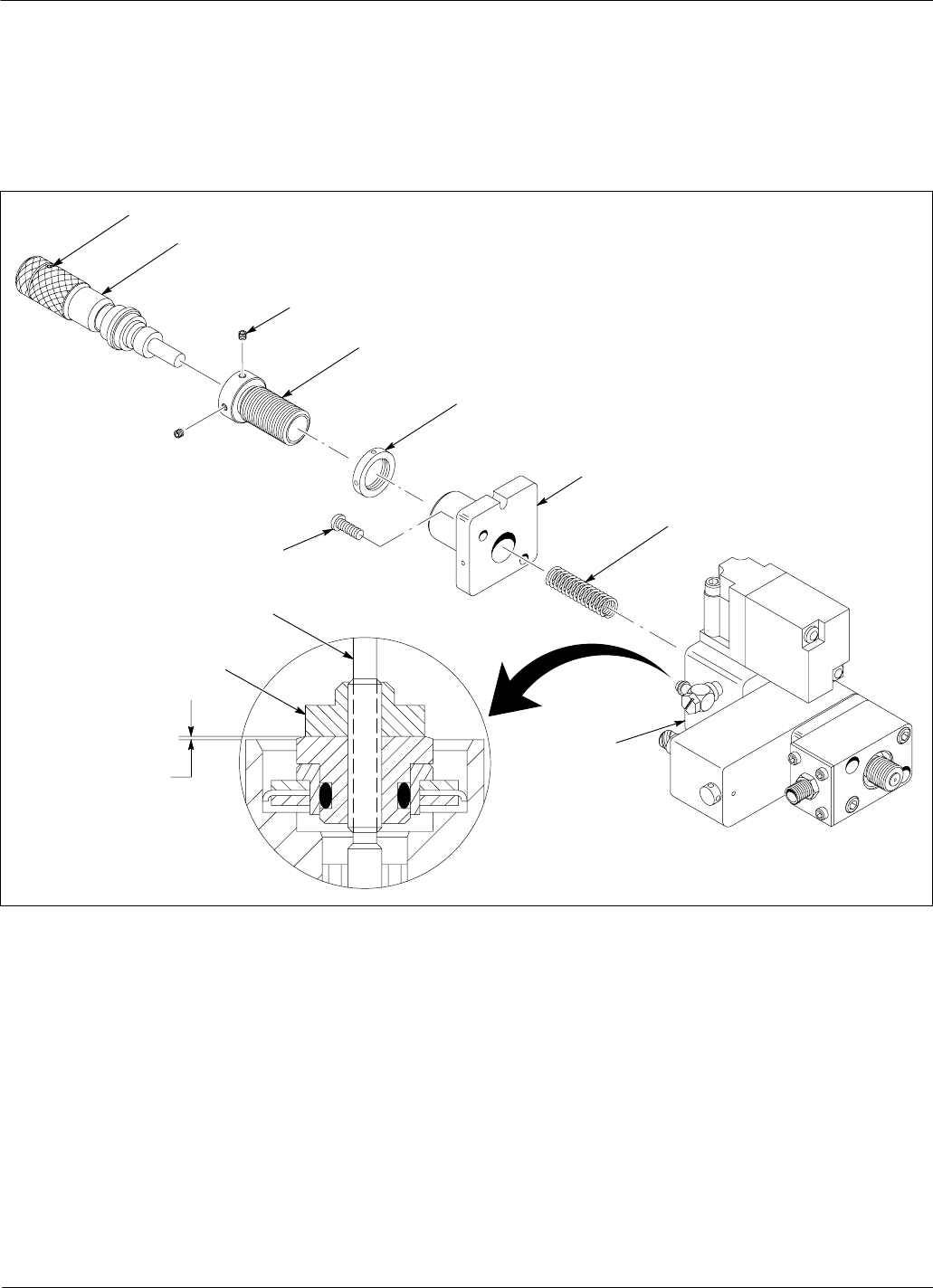

Fig. 9 Installing the micro-adjustment assembly and cap
1. Set screw
2. Micro-adjustment assembly
3. Preload set screw
4. Preload screw
5. Locking nut
6. Cap
7. Compression spring
8. Upper body
9. Fillister screws
10. Needle
11. Spring retainer
Micro-Adjustment Assembly
and Dispenser Cap
(contd)
