2. Insert the seat extension (13) into the heater (9). Rotate the seat
extension assembly to spread the conductive grease evenly and
remove air pockets.
3. Install the seat extension assembly on the upper and lower body
assembly. Use the
7
/
64
-in. hex key to secure the screws (10).
4. Wipe any grease from the extension threads.
1234006A
1
2
3
5
7
8
10
10
11
13
5
17
6
9
6
12
16
4
14
15

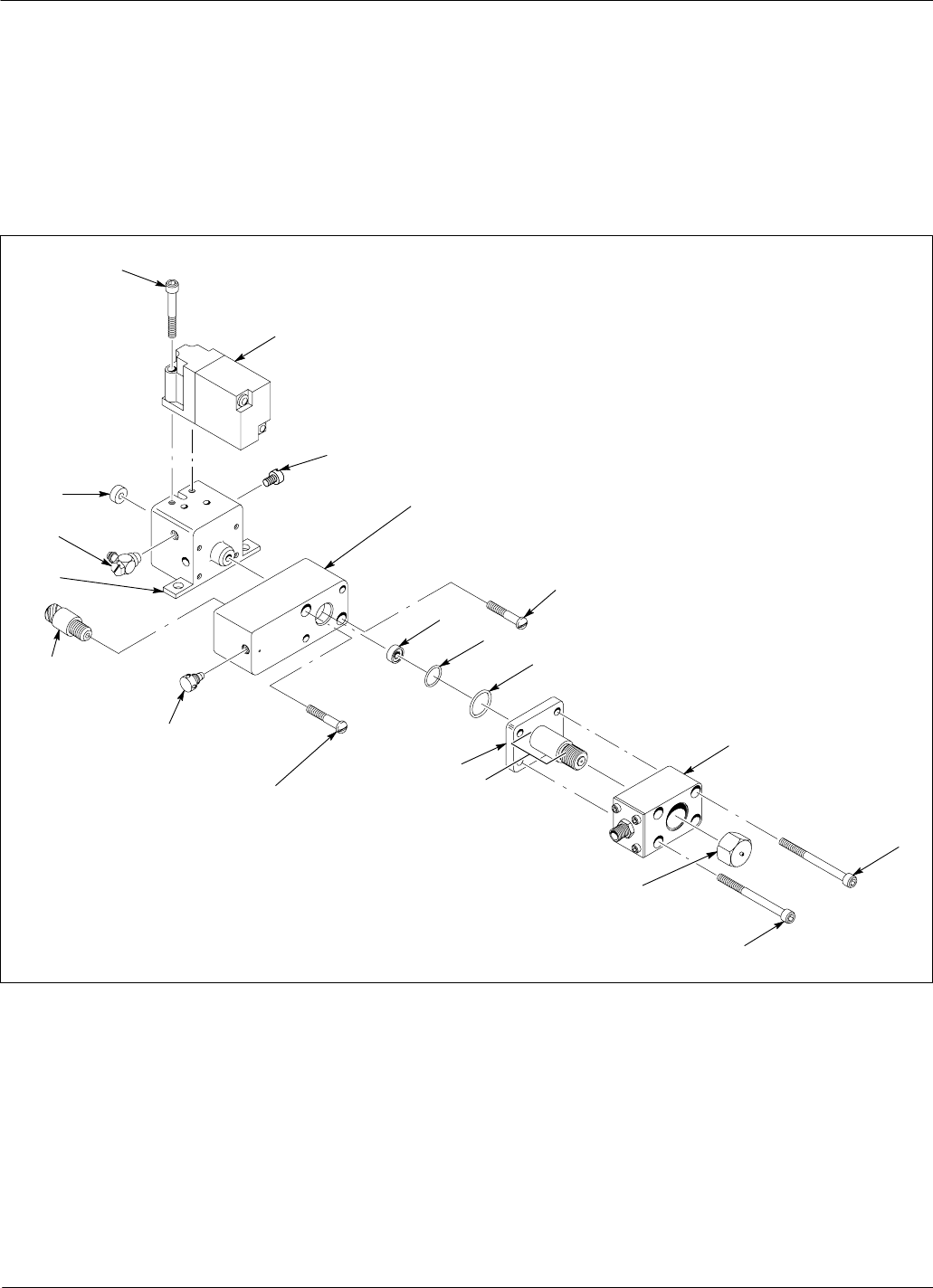

Fig. 7 Assembling the upper body, lower body, and heater
1. Socket head screws
2. Solenoid valve
3. Plug
4. Lower body
5. Fillister screws
6. U-cup seal
7. O-ring (small)
8. O-ring (large)
9. Heater
10. Screws
11. Nozzle
12. Conductive grease application
13. Seat extension
14. Purge screw
15. Syringe connector
16. Upper body
17. Fitting
Heater (contd)
