Body Assembly (contd.)
8. Clean the parts in a compatible solvent.
9. Inspect and replace these parts, if necessary:
S purge screw (11)
S syringe connector (12)
S fitting (14)
S plug (10)
1234005A
1
2
3
4
5
6
7
6
14
8
8
9
10
11
12
13

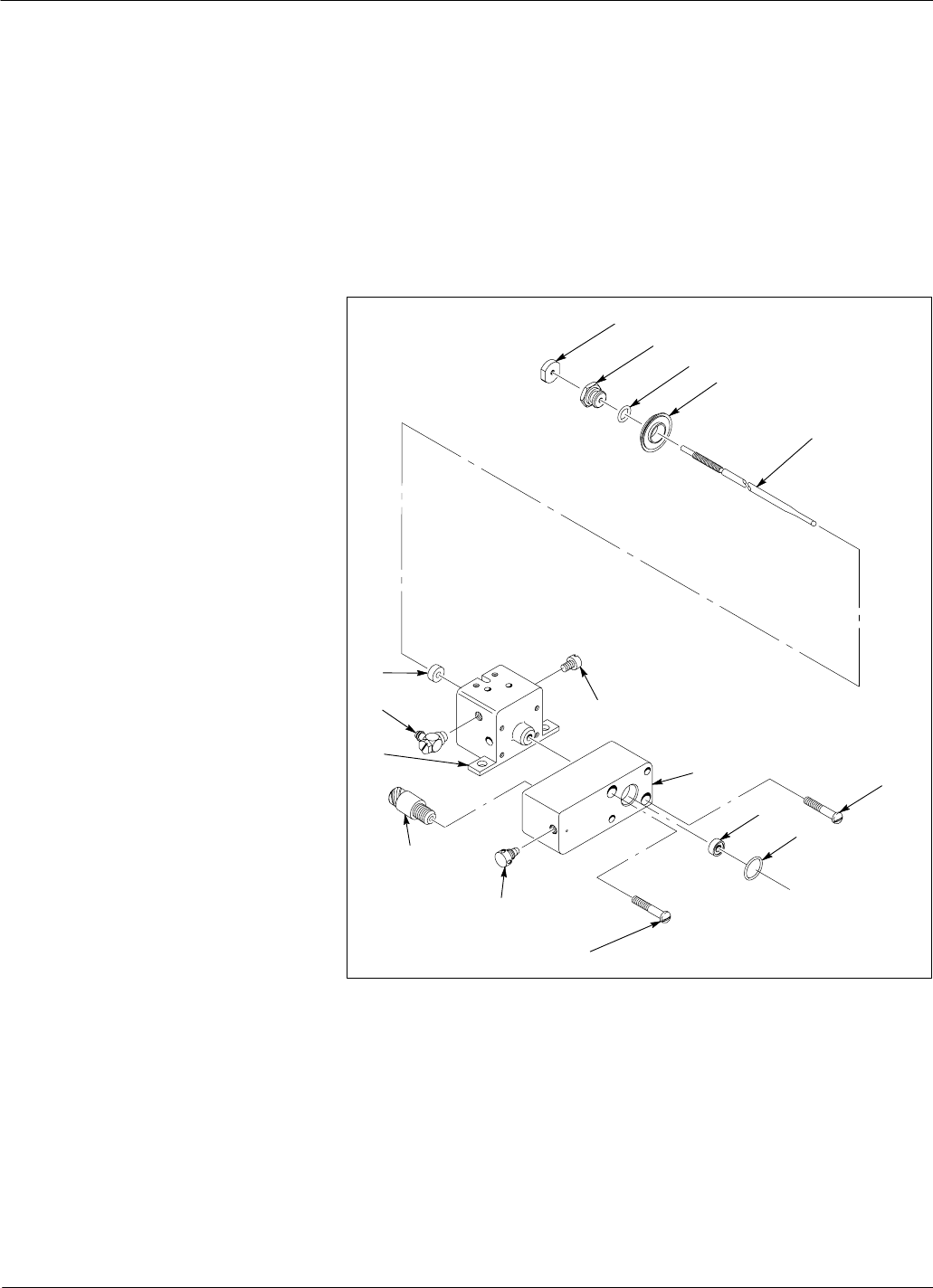

Fig. 6 Removing the needle, piston, and seals
1. Spring retainer
2. Seal lock nut
3. O-ring
4. Air piston
5. Needle
6. Fillister screws
7. O-ring
8. U-cup seals
9. Lower body
10. Plug
11. Purge screw
12. Syringe connector
13. Upper body
14. Fitting
