User guide

AccuJet  Dispenser
28
 1998 Nordson Corporation
All rights reserved
107 142B
Issued 4/98
Manual 12-34
1234004A
1
2
3
4
6
7
17
16
10
8
11
12
5
2
15
13
14
9

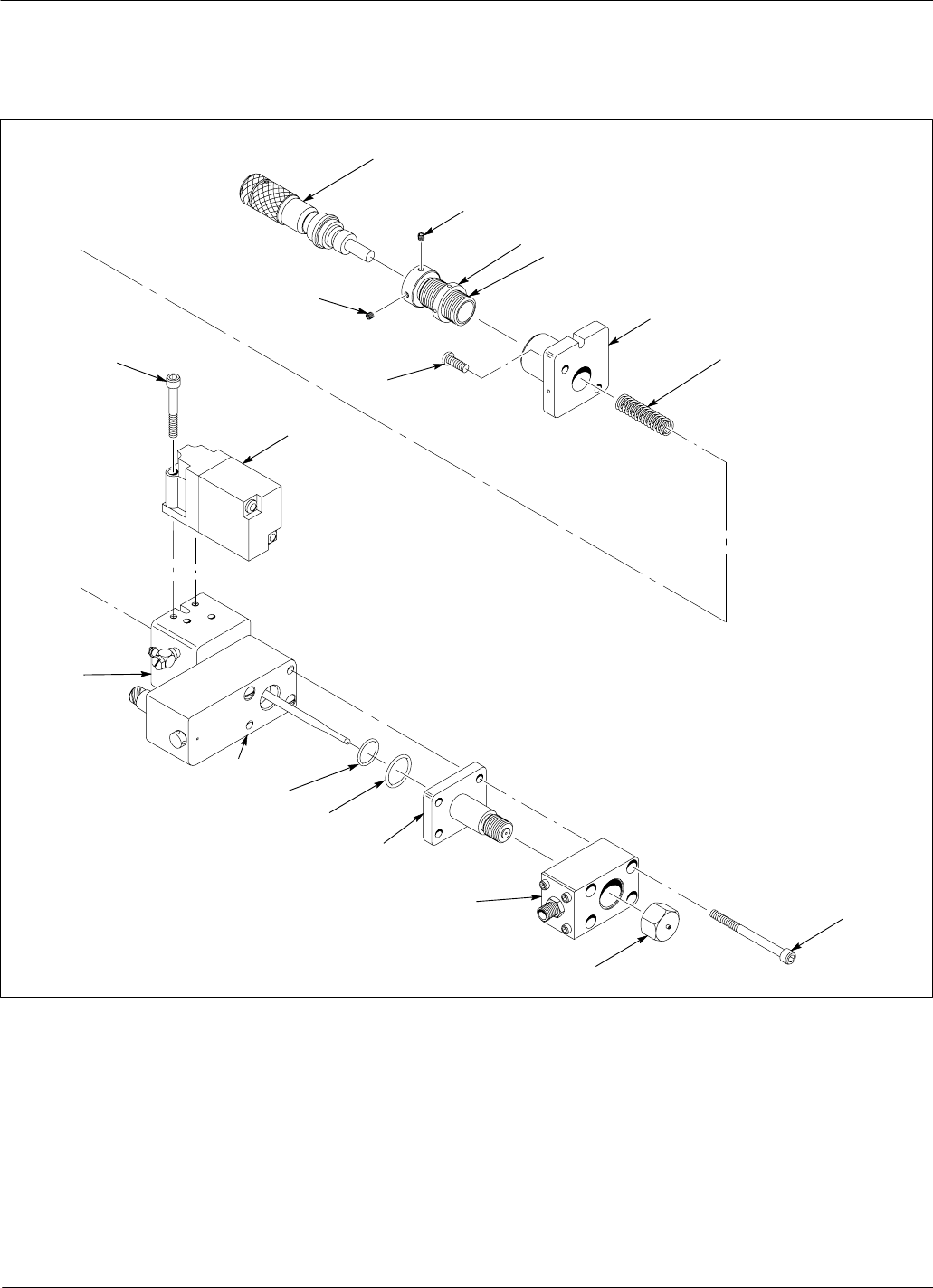

Fig. 5 Dispenser disassembly
1. Micro-adjustment assembly
2. Preload set screws
3. Preload locking nut
4. Preload screw
5. Screws
6. Cap
7. Compression spring
8. Socket head screws
9. Nozzle
10. Heater
11. Seat extension
12. O-ring (large)
13. O-ring (small)
14. Lower body
15. Upper body
16. Solenoid valve
17. Socket head screws
Disassembly (contd)
