Assembly (contd.)
10. Use the spanner wrench to lock the locking nut (3) to the face of the
upper body (17).
11. Turn the micro-adjustment cap (1) to gently seat the needle into the
extension. Open the micro-adjustment cap counterclockwise to the
desired setting (Refer to Table 2 for settings).
12. Remove the nozzle (7) from the seat extension (9).
13. Install the syringe connector (16) into the lower body (4).
14. Refer to
Operation for operating procedures.
The dispenser, tools, and nozzles come packaged in a protective
dispenser case. Figure 4 illustrates where each item should be placed in
the case.
1234003A
5
1
2
3
4

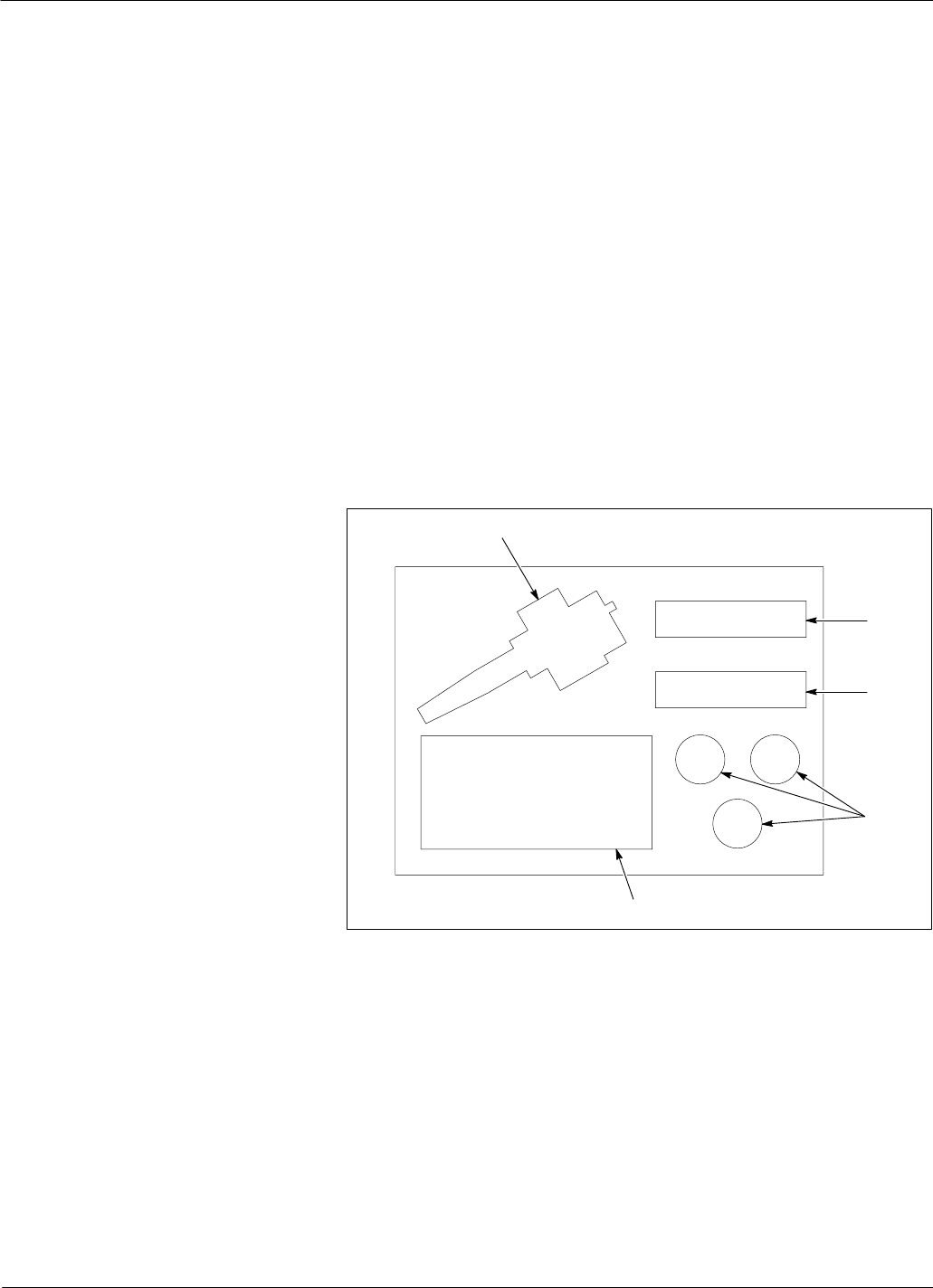

Fig. 4 Dispenser case
1. Nozzle cleaning tool box
2. Dispenser assembly wrench box
3. Nozzle cases
4. Dispenser assembly and
cleaning tool box
5. Dispenser
Storing
