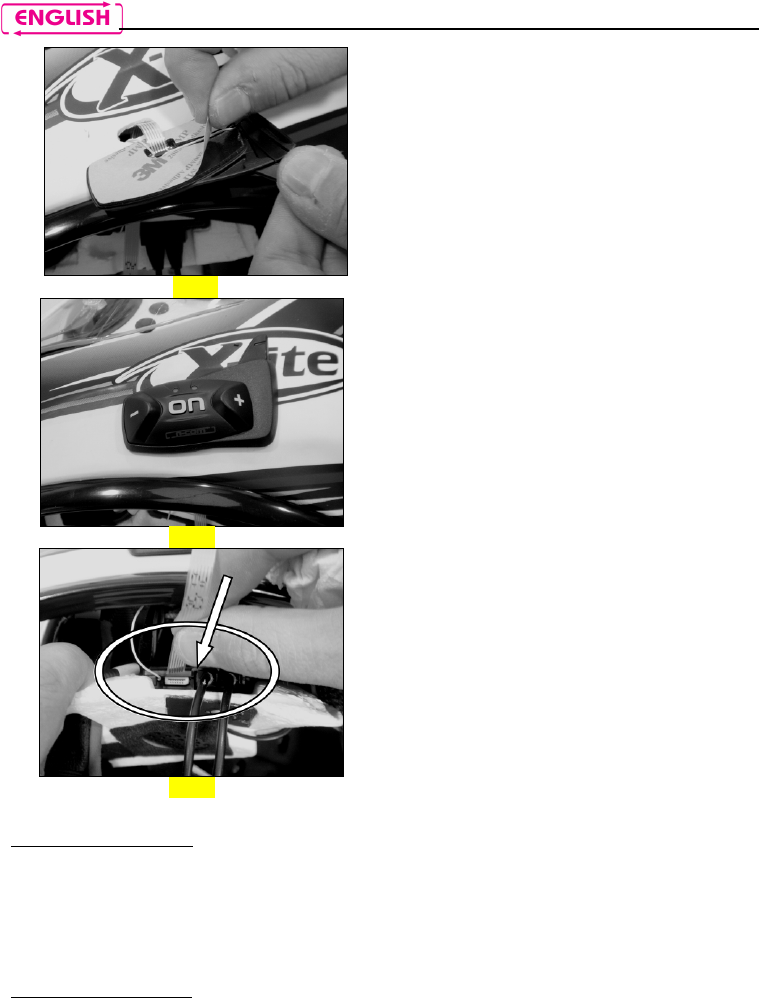

Fig. 32
Fig. 33
Fig. 34
Remove the protective film from the back of
the adhesive keyboard
using the special tab.
(Fig. 32)
Pass the antenna and keypad cable completely
through, inside the helmet.
Apply the keyboard to the shell and press
down on its entire surface to make sure that
it
sticks properly. (Fig. 33)
Note: Make sure you do not glu
e the antenna and
keypad cable underneath the keypad support.
Note: In the event that the keyboard is not
positioned correctly, peel it off right away with
extreme care and repeat the positioning.
Note: It takes up to 24 hours for the keyboard to
stick completely. During this time, do not
expose the helmet to atmospheric agents.
Hook up the “flex” cable of the adhesive
keyboard to the e-box. (Fig. 34)
Reposition the left polystyrene cheek pad in its
housing.
Only for full-face helmets
: Insert the chin strap into the polystyrene cheek pad loop.
Reposition the left and right-hand side cheek pad by following the specific instructions provided in the
helmet user manual.
Hook the rear part of the comfort padding to the helmet.
Only for full-face helmets
: Insert the chin guard (microphone side), gently placing the microphone in its
housing. Then press down on the red tab until the chin guard is locked in place on the helmet.
