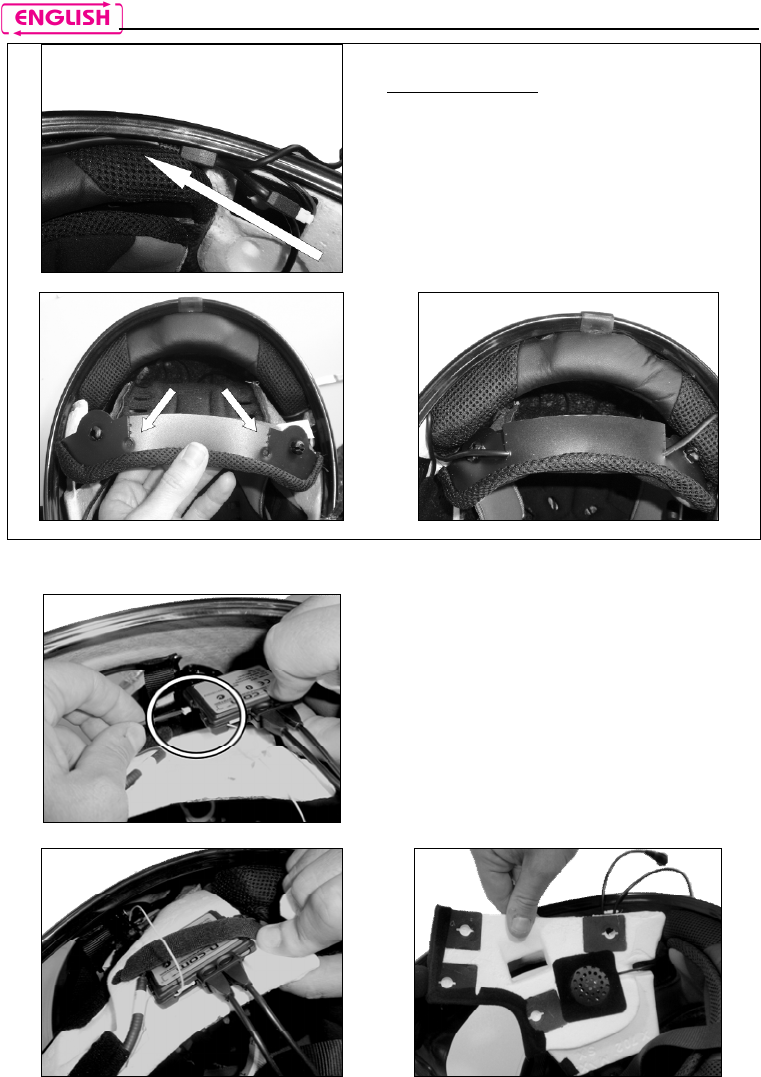

3.6. Positioning the e-box
Fig. 21
Only for X702 helmet
Position the battery connector and wiring
underneath the shell gasket (Fig. 21).
Cut along the pre-cut lines of the plastic tab on
the back of the comfort padding (Fig. 22).
Secure the wiring underneath the plastic tab.
Close the cut parts using the cable fixing
adhesives (Fig. 23).
Fig. 22
Fig. 23
Fig. 24
Connect the microphone to the e-box. (Fig. 24)
Position the e-
box in the left polystyrene cheek
pad housing. (Fig. 25)
Position the left-
hand side speaker in the cheek
pad housing and secure it using the specific
adhesive. (Fig. 26)
Fig. 25
Fig. 26
