Fixed Wireless Terminal Description and Installation
Before leaving the site
Plug in the subscriber’s telephone into the RJ–11 connector on the rear
panel. Power–up the unit and observe the POWER LED for the correct
indication as shown in Table 7.
Make a test telephone call and observe the quality of the sound and
confirm that the receiving party is receiving good quality sound as well.
Clean up the site and confirm that the installation meets with the
customer’s approval.
Give the customer the user’s guide (Operating the Fixed Wireless
Terminal), briefly describing its contents and suggest that it be kept near
the telephone equipment.

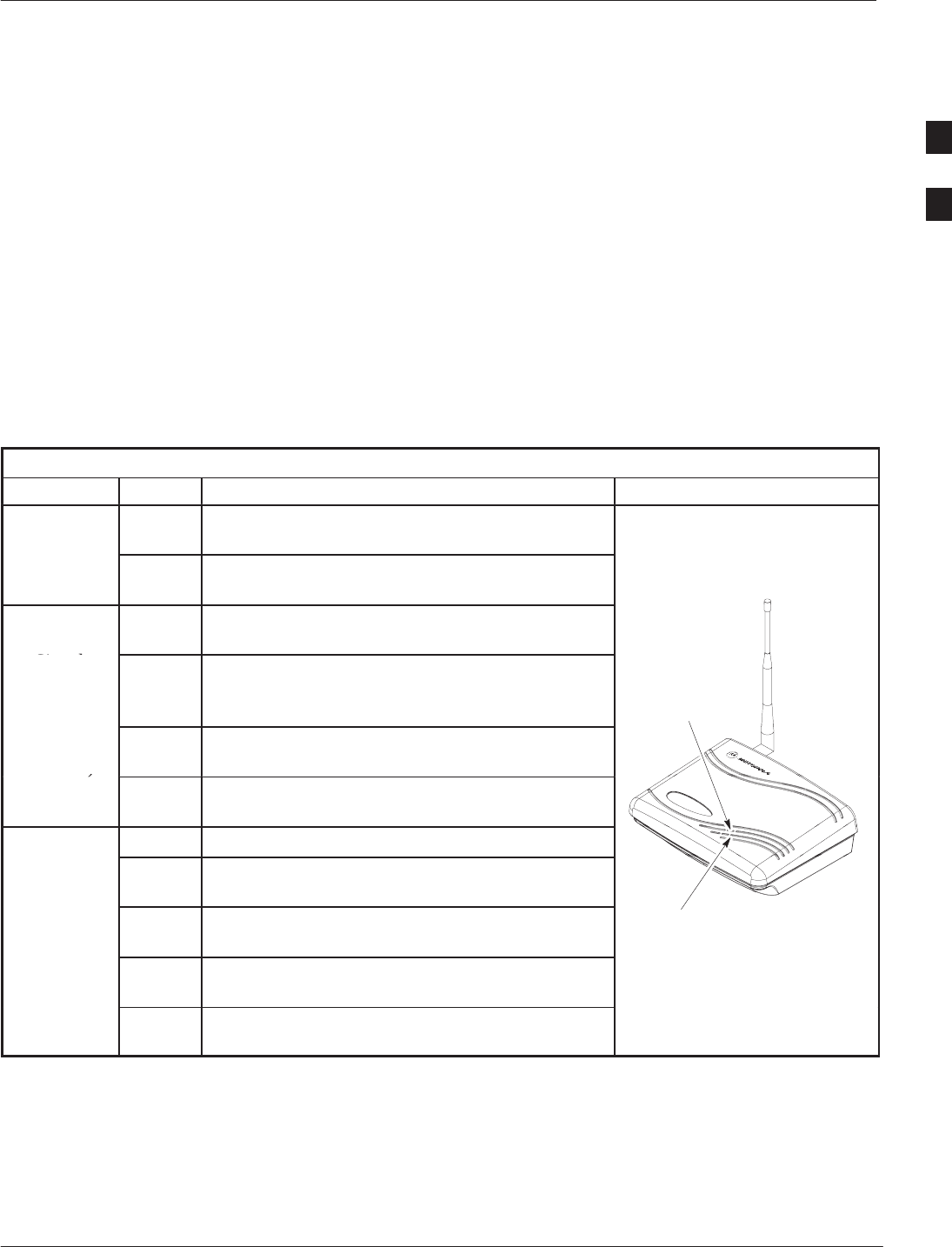

Table 7: Power, Fault, and Cellular Coverage (Service) LED Indicators
LED Color Condition / Meaning Illustration
Service
– Off. UNACCEPTABLE service condition; the
FWT is not capable of making or receiving calls.
Service
Green On (steady). BEST service condition; the FWT is
in–service with adequate receive signal.
Si l
– Off. UNACCEPTABLE service condition; the
FWT is not capable of making or receiving calls.
Signal
Strength
Testing
(requires
Green On, slowly blinking. POOR service condition; the
FWT is capable of only marginally dependable
phone operation.
SERVICE
LED
(requires
*123
function
)
Green On, fast blinking. GOOD service condition; the
FWT is capable of dependable phone operation.
)
Green On (steady). BEST service condition; the FWT is
in–service with adequate receive signal.
– Off. No power is being supplied to the FWT.
Green On (steady). NORMAL OPERATION. FWT is
on and operating from external power source.
Power
Green On (slow blinking). BACKUP BATTERY. FWT
is operating from internal backup battery.
POWER
LED
Green On (fast blinking). BACKUP BATTERY LOW.
FWT operating from internal low–backup battery.
Red On (steady). FAULT. FWT has detected a fault;
report condition to service provider.
