SC4812ET BTS Optimization/ATP CDMA LMF

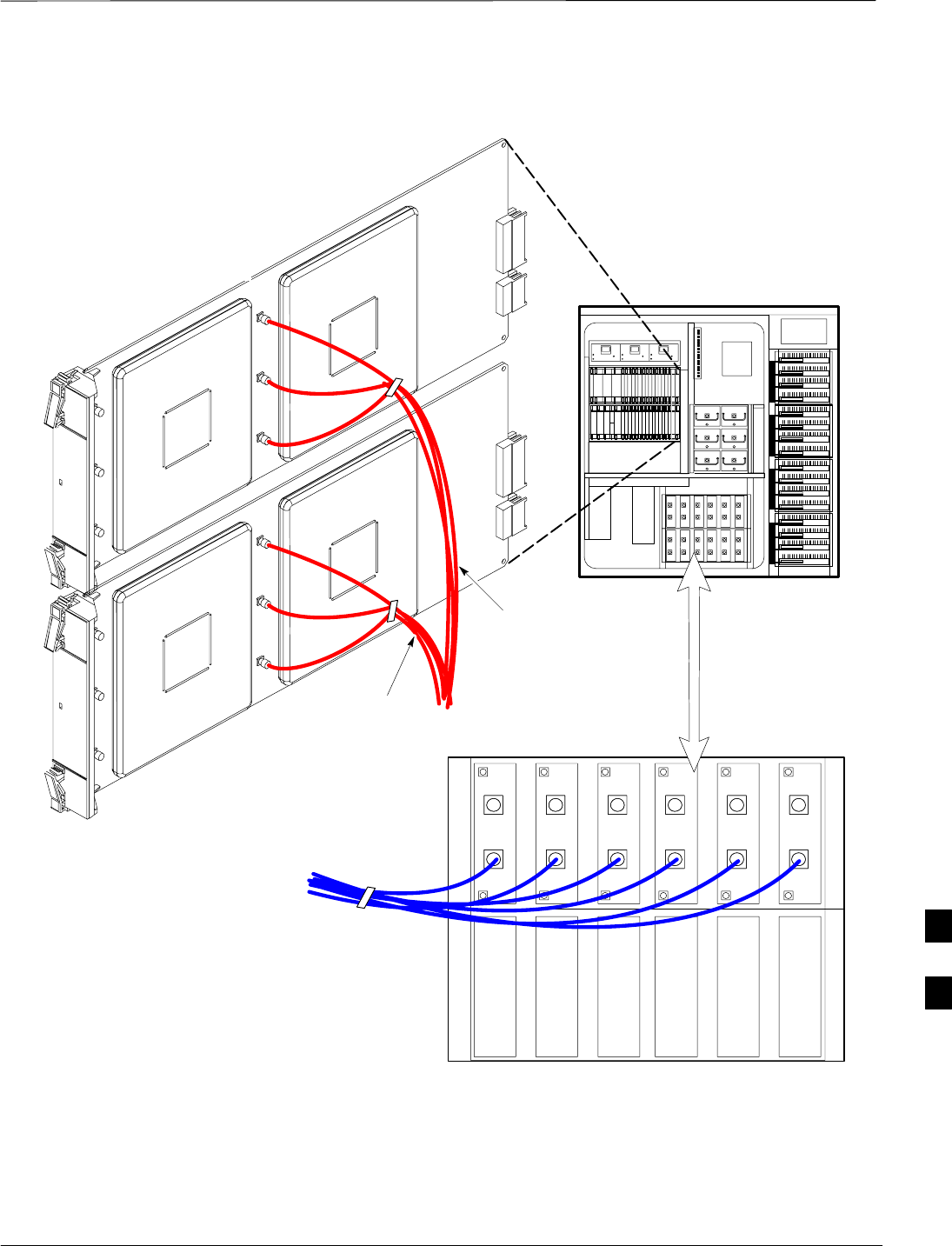

Figure H-15: DRDC To CCCP Cage MPC Boards Cable Connections
5 RU RACK
SPACE
RFDS
EBA
ETIB
SC 4812ET
RF Cabinet
FW00710
1A2A3A1B2B3B
1A 3A: CABLE # 3086659H01
1B 3B: CABLE # 3086659H01
DRDC CAGE
CABLES CONNECT
1A, 2A, 3A TO TOP
MPC BOARD
# 3086659H01
MPC BOARDS
CABLES CONNECT
1B, 2B, 3B TO
BOTTOM MPC BOARD
# 3086659H01
* Use Cable 3086659H02
For Sectors 4 6
