Gigatronics 8541C Power
Meter GPIB Address
Follow the steps in Table I-2 to verify and, if necessary, change the
Gigatronics 8541C power meter GPIB address.
This procedure assumes that the test equipment is set up
and ready for testing.
NOTE
Table I-2: Verify and/or Change Gigatronics 8541C Power Meter GPIB Address
Step Action
! CAUTION
Do not connect/disconnect the power meter sensor cable with AC power applied to the meter.
Disconnection could result in destruction of the sensing element or miscalibration.
1 Press MENU (see Figure I-2).
2 Use the arrow key to select CONFIG MENU and press ENTER.
3 Use the arrow key to select GPIB and press ENTER.
The current Mode and GPIB Address are displayed.
4 If the Mode is not set to 8541C, perform the following to change it:
Use the arrow keys as required to select MODE.
Use the  arrow keys as required to set MODE to 8541C.
5 If the GPIB address is not set to 13, perform the following to change it:
Use the arrow key to select ADDRESS.
Use the  arrow keys as required to set the GPIB address to 13.
6 Press ENTER to return to normal operation.

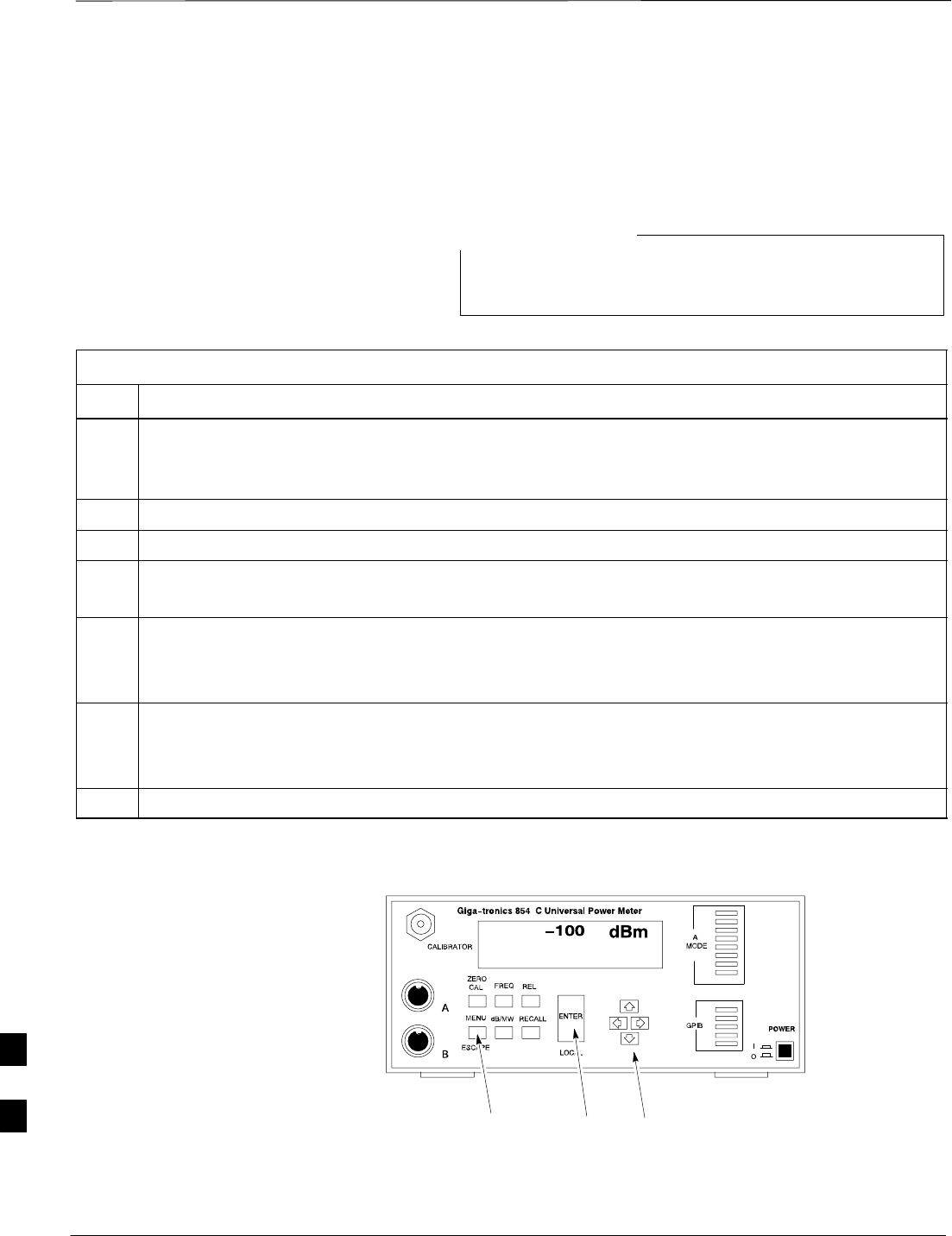

Figure I-2: Gigatronics 8541C Power Meter Detail
MENU ENTER ARROW
KEYS
REF FW00564
