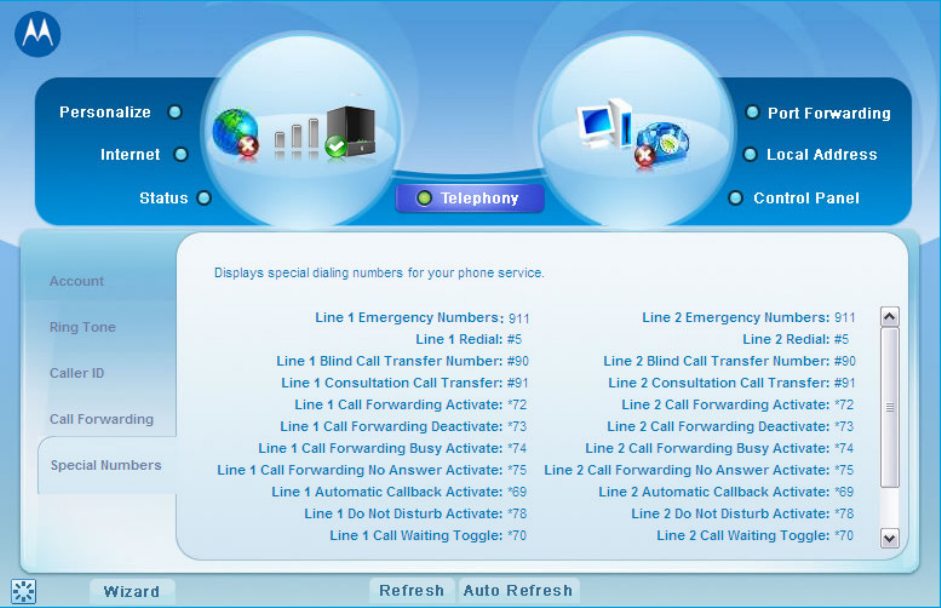

8.LAN (Local Address) Configuration If DHCP is enabled on all of the computers in your home network (LAN), you should not need to change any of the default LAN settings. Unless you have sufficient networking knowledge, we recommend not changing any LAN settings. If you need to verify LAN Configuration, you can access this information by performing the following: 1 Click the DHCP Server tab on the Home page.
Field or Button Enable DHCP Server Description If selected, the DHCP server on the gateway assigns IP addresses to the computers and other hosts on your network, if they have DHCP enabled. By default, the gateway DHCP server is enabled. If there is another DHCP server running on your network (on another router), you must disable one of the DHCP servers. If you do not select, you must carefully configure the IP address, Subnet Mask, and DNS settings of every host on your network.
Lease Reservation It manages lesae reservation to allow the same client gets the same IP address at all time. Give the client a Host Name, register its MAC address and reserve a set of fixed IP address for this client. Click Apply to save the setting and this client will be assigned the reserved IP address next time.
9.Port Forwarding This section contains two parts: Basic and Forwarding. Port forwarding is the forwarding of network ports from one network device to another. This is commonly done using a NAT (network address translation) enabled router or server and another computer within the network. Basic The UPnP Internet Gateway Device (IGD) is an “edge” interconnect device between a residential Local Area Network (LAN) and the Wide Area Network (WAN).
2. Click Apply to save the setting. Forwarding This function is to forward inbound connections destined to ports on the BLADE WiMAX interface, to a specific client on your local network. You can specify a corresponding destination LAN port ranges as well. Port forwards can be used to support a web server, or other special service, offered on your local network. Followthe steps below to configure the Forwarding. 1. Fill in the Service name and selecthe protocol type.
2. Continue fill in the rest boxes. The WAN Port Start and WAN Port End refer to the range of the BLADE WAN port. LAN IP refers to the local PC’s IP address. The LAN Port Start and LAN Port End refer to the range of the BLADE LAN port, and they are registered for the WAN PCs to recognize. 3. Click Apply to save the setting.
10. Control Panel Control panel has three sections: Software, Certificate, and URL Filter. It manages the firmware upgrade and device software, verifues the certificate for network connection, and enables the URL filter. Software You can upgrade the firmware by clicking the Choose button and find the one you want to upgrade, then click Upgrade. The Current Software Version shows the software that is being run on your BLADE.
System This page controls the user interface configuration. You may change the language used in user interface and the auto refresh interval as shown below.
About As you can see from the sample web page below, this button shows basic product information of the RSU. You may find model ID, software/hardware version, etc.
.Troubleshooting LEDs are Off Check that the AC power adapter is properly plugged into the outlet and into the Gateway. Check that the electrical outlet is working. electrical A Computer Cannot Send or Receive Data Check that the Ethernet cable is properly connected to the Gateway unit and the computer.
.Configuring TCP/IP This chapter is needed for setup procedures. Refer to the section titled “Basic Configuration” on Chapter 3 for more information regarding this chapter. All client computers on your network must be configured for TCP/IP (the protocol that controls communication among computers).
2. Click Control Panel to display the Control Panel window. The display varies, depending on your Windows XP view options. If the display is a Category view as shown below, continue with Step 3. Otherwise, skip to Step 5.
3 Click Network and Internet Connections to display the Network and Internet Connections window: 4 Click Network Connections. 5 If a classic view similar to below is displayed, double-click Network Connections to display the LAN or High-speed Internet connections. 6 Right-click the Local Area Connection. If more than one connection is displayed, be sure to select the one for your network interface.
7 Select Properties from the pop-up menu to display the Local Area. 8 On the Local Area Connection Properties window, select Internet Protocol (TCP/IP) if it is not selected.
10 Be sure Obtain IP address automatically and Obtain DNS server address automatically are selected. 11 Click OK to close the TCP/IP Properties window. Click OK to close the TCP/IP Properties window. When you complete the TCP/IP configuration, return to the Setup procedure “User Interface Overview” on Chapter 3. C Co onnffiig guurriinng g TTC CPP//IIPP iinn W Wiinnd do ow wss V Viisstta a 1. On the Windows desktop, click Windows Logo on the left bottom cornor to display the Start window.
2. When Network windows appears, click Network and Sharing Center from the action bar on the top of the window.
3 .After you click Network and Sharing Center, the window below appears. Follow by clicking Manage Network Connection from the task bar on the left.
4. The network connections appear. Drag your mouse to the Local Area Connection and right click the mouse button. A series of tasks display. Click Properties.
5. A series of protocols appear. Among them, check the Internet Protocol Version 4 (TCP/IPv4) and click Properties. 6. TCP/IPv4 Properties appears. Check Obtain an IP address automatically, and Obtain DNS server address automatically. Click OK to save the settings.
7. The settings are done. Click OK to exit.
