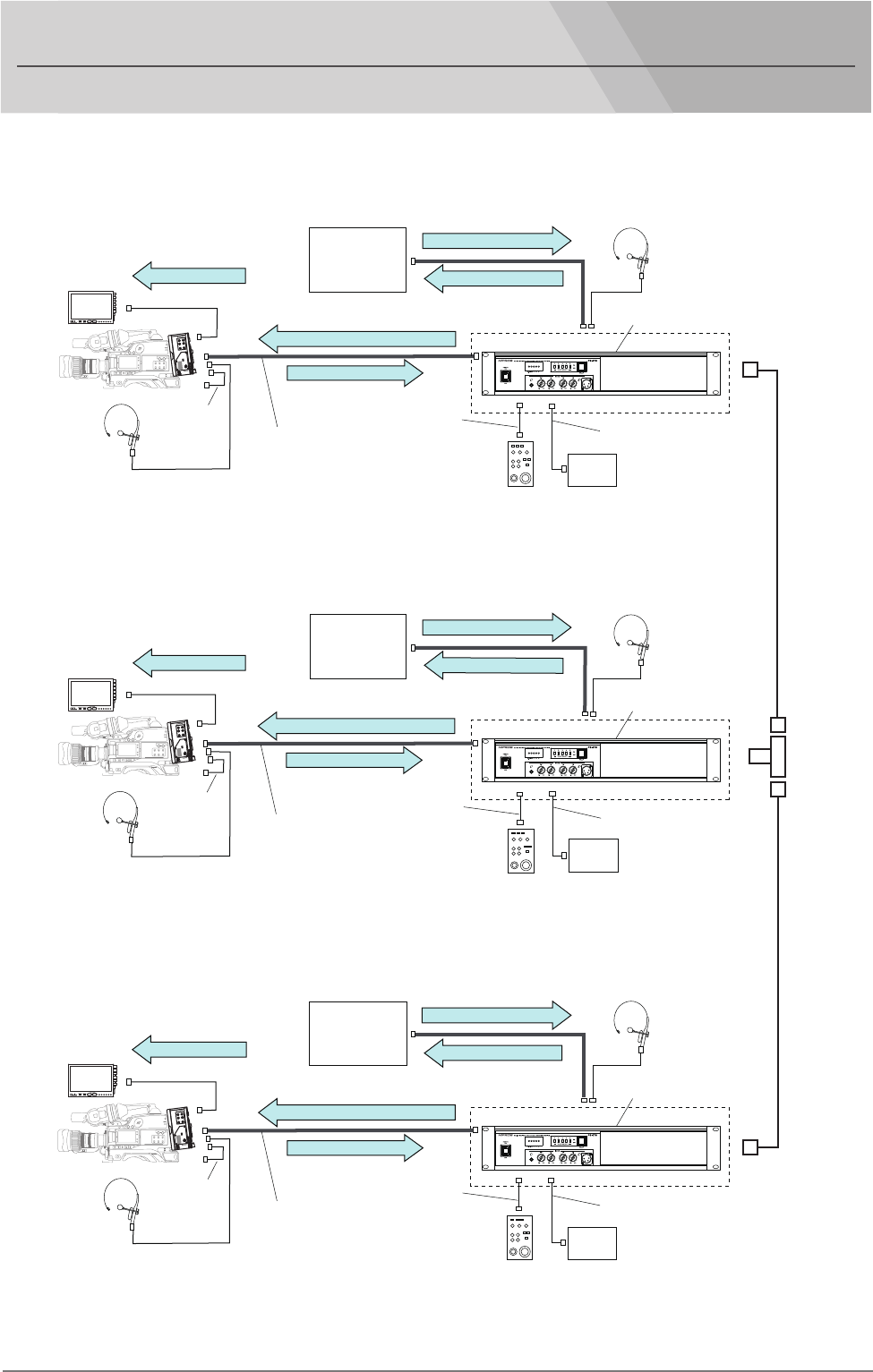

Multi-Camera System Connection Guide
BNC cable for
Incom connector
BNC cable for
Incom connector
Incom
Connector
Incom
Connector
●HD-SDI cable
（BNC）
●PS-570/1
●Rack Mount kit HS-RA90
Blank panel
Switcher
●Camcorder
●PS-470/1
●Headset DL-400
●Headset DL-400
●Optical fiber cable
（Max 2km）
Tally/Return/Power/Incom/Genlock/Remocon
Tally/Return/Genlock
HD-SDI2/SD-SDI
HD-SDI/SD-SDI/Incom
●6-Pin cable VC-450
●Camera １
●Camera View Finder
LVM-89W
Tally/Return/Power
●Camera remote controller
●Reference sync signal
generator
●Reference sync signal
Dedicated cable
(Supplied with
camera remote controller）
T-type BNC
Connector
●PS-570/1
●Rack Mount kit HS-RA90
Blank panel
Switcher
●Headset DL-400
Tally/Return/Genlock
HD-SDI2/SD-SDI
●Camera 2
●Reference sync signal
generator
●Reference sync signal
●PS-570/1
●Rack Mount kit HS-RA90
Blank panel
Switcher
●Headset DL-400
Tally/Return/Genlock
HD-SDI2/SD-SDI
●Camera 3
●Reference sync signal
generator
●Reference sync signal
HEADSET1
TALLY
POWER
ON
OFF
OFF ON
INCOM/
DC 12V IN
HEADSET2
OPTICAL FIBER
CAMERA ADAPTER
MINI MAX
MINI MAX
MINI MAX
MINI MAX
MIC
H.P
SIDE
TONE
HEADSET1 HEADSET2
TALLY
HD
LS
●Camcorder
●PS-470/1
Tally/Return/Power/Incom/Genlock/Remocon
HD-SDI/SD-SDI/Incom
●6-Pin cable VC-450
HEADSET1
TALLY
POWER
ON
OFF
OFF ON
INCOM/
DC 12V IN
HEADSET2
OPTICAL FIBER
CAMERA ADAPTER
MINI MAX
MINI MAX
MINI MAX
MINI MAX
MIC
H.P
SIDE
TONE
INCOM
HEADSET1 HEADSET2
TALLY
HD
LS
●Camcorder
●PS-470/1
Tally/Return/Power/Incom/Genlock/Remocon
HD-SDI/SD-SDI/Incom
●6-Pin cable VC-450
HEADSET1
TALLY
POWER
ON
OFF
OFF ON
INCOM/
DC 12V IN
HEADSET2
OPTICAL FIBER
CAMERA ADAPTER
MINI MAX
MINI MAX
MINI MAX
MINI MAX
MIC
H.P
SIDE
TONE
INCOM
HEADSET1 HEADSET2
TALLY
HD
LS
Optical Fiber Studio System PS-470/1 PS-570/1
PS-470/1 PS-570/1 システム構成例
COLORINPUTRGBMARKER
MONO
16:9
4:3
PEAKING
●Camera View Finder
LVM-89W
COLORINPUTRGBMARKER
MONO
16:9
4:3
PEAKING
●Camera View Finder
LVM-89W
COLORINPUTRGBMARKER
MONO
16:9
4:3
PEAKING
Tally/Return/Power
Tally/Return/Power
PS-470/1 PS-570/1 OPTICAL FIBER STUDIO SYSTEM
CLASS 1 LASER PRODUCT
Multi-Camera System Connection Guide
●HD-SDI cable
（BNC）
●Headset DL-400
●Optical fiber cable
（Max 2km）
●Camera remote controller
Dedicated cable
(Supplied with
camera remote controller）
●Camera remote controller
Dedicated cable
(Supplied with
camera remote controller）
●HD-SDI cable
（BNC）
●Headset DL-400
●Optical fiber cable
（Max 2km）
