Manual

23

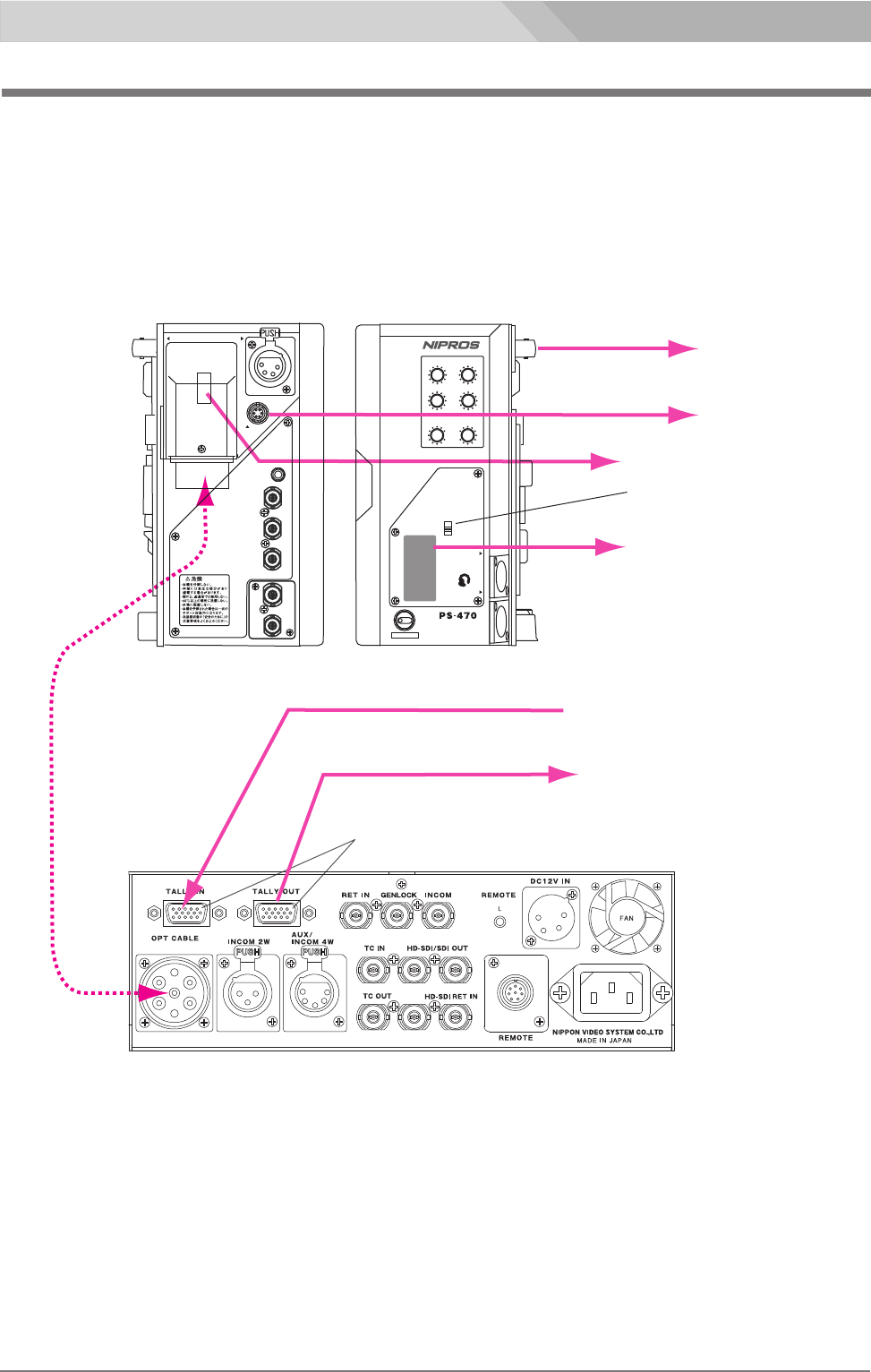

タリー表示を行う場合はTALLY INにスイッチャー等からの信号をHD D-sub15P-15Pケーブルで接続します。
複数台のPS-570を接続する場合はTALLY OUT を他のPS-570へHD D-sub15P-15Pケーブルで接続します。
1
from
switcher or
other PS-570
to
other PS-570
TALLY IN/OUT connector
(HD D-sub 15-pin)
Input the tally signals to the TALLY IN connector connecting to a switcher by the HD D-sub 15-pin cable.
Connection
PS-470/1 PS-570/1 接続方法
タリー信号の接続
TALLY signal connection
GEN
LOCK
REMOTE L
RET
OUT
HD-SDI/
SDI IN
TC
IN
TC
OUT
MADE IN JAPAN
TALLY DC OUT
IF OUT
HEADSET1
TALLY
POWER
ON
OFF
OFF ON
INCOM/
DC 12V IN
HEADSET2
OPTICAL FIBER
CAMERA ADAPTER
MINI MAX MINI MAX
MINI MAX MINI MAX
MIC
H.P
SIDE
TONE
INCOM
HEADSET1 HEADSET2
TALLY
HD
LS
TALLY ON/OFF switch
TALLY indicator
TALLY status indicator
In case of multi-camera operation, connect the TALLY OUT connector to other PS-570 by the HD D-sub
15-pin multi cable.
HD-SDI
to
HDF-700
TALLY
OUT
to
LVM-89W
IF OUT
