CA audio signal monitoring and setting
2
Set the CA AUDIO OUT (1/2), MIC/LINE, select switch to the appropriate position
according to the rated level of the equipment connected to the CA AUDIO OUT 1/2 connectors.
Check the input level by AUDIO IN 1/2 level meters.
Set the CA/PGM select switch to the CA position.
Adjust the audio level of the headphone by the MONI. volume.
LINE
LINE
MIC
MIC
CA AUDIO
２
１
ST
CA
PGM
MONI
OUT
MONI.VOL
MONI
OVER OVER
CA AUDIO
LANC
TALLY
OPT
HD/SDI OUT 1
IN OUT
HD-Y/VIDEO
OUT
HD/SDI IN1 HD/SDI
RET
12 1
2
AUDIO IN
CA
AUDIO OUT
PGM

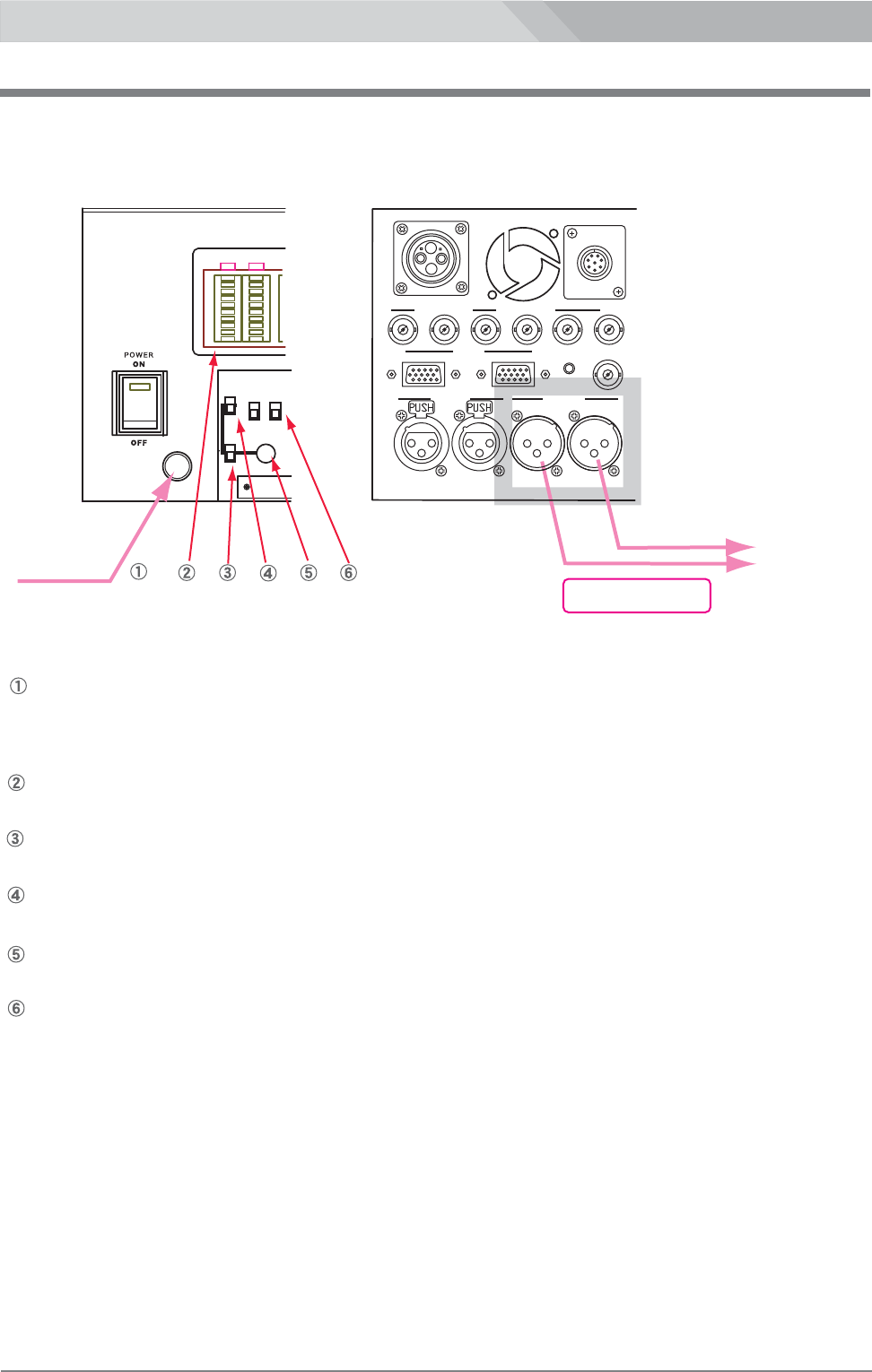

Connect a headphone to the MONI connector to monitor the CA audio signal
and input the audio signal to the AUDIO IN 1/2 connector of LS-700 or turn on the 1 kHz ON/OFF
switch of LS-700.
MONI
headphone
connector
(φ 6.3)
Select the audio monitor channel 1, 2, or 1/2stereo by the MONI select switch.
to
switcher,
audio mixer,
VTR,
etc.
(rear panel)
(front panel)
Adjustments and Settings for LS-800
HEADPHONE
CA audio signal
Optical Fiber Camera Adaptor LS-700/Optical Fiber Base Station LS-800
LS-700/LS-800
LS-800
