Instruction User Manual

40
And connect the AC IN 100/200V(85-240V) connector to the AC outlet with the supplied AC power
cable.
1
Power Supply connection

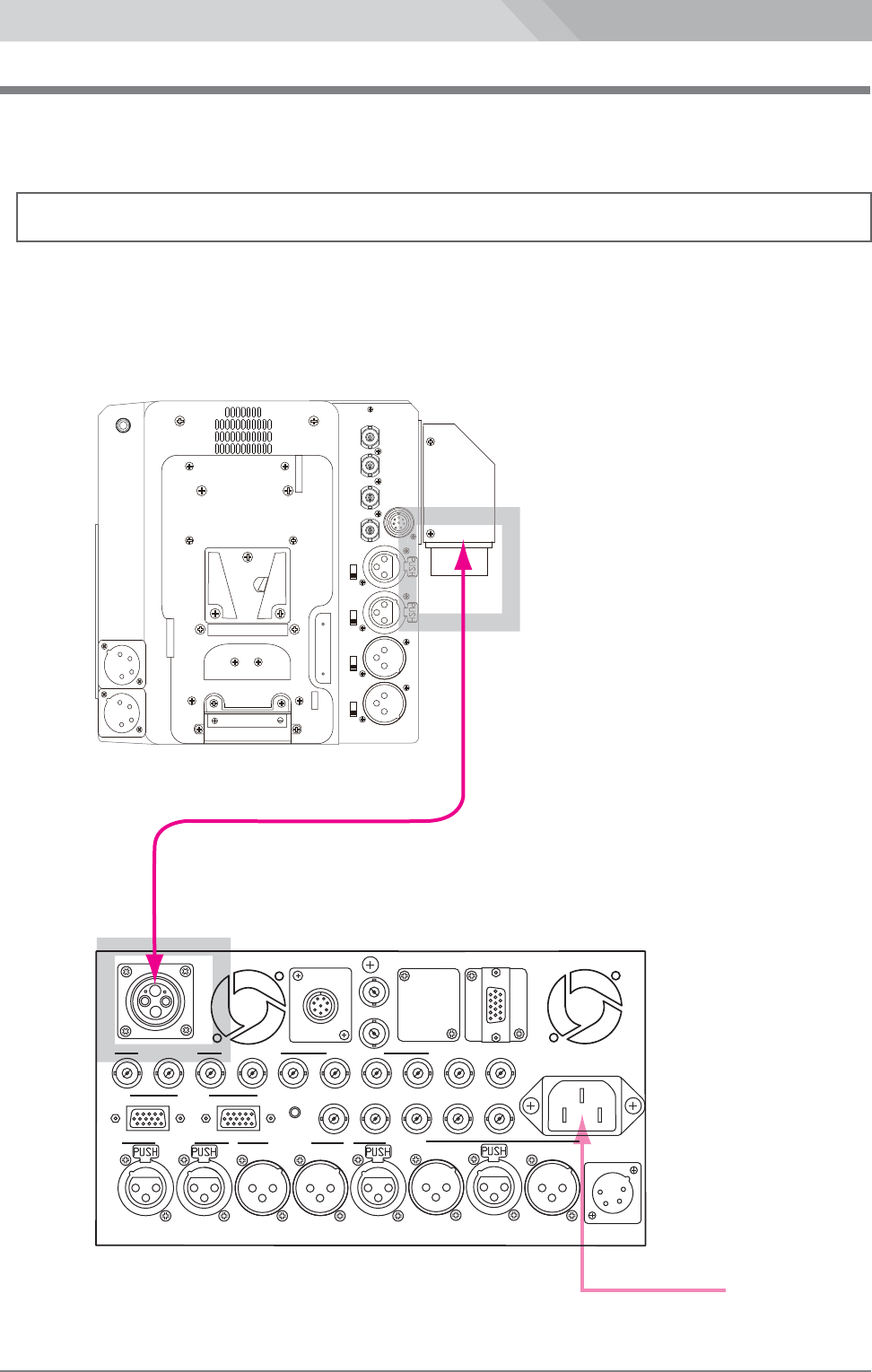

DC power supply to LS-700
The DC power to LS-700 is supplied from the Optical Fiber Base Station LS-800 via the optical fiber cable.
Connect both the OPT connectors of LS-700 and LS-800 with an optical fiber cable.
Optical fiber cable
PRONPTER/
REF.VIDEO
OUT
RET1/2
HD-Y/
VIDEO
OUT
HD-Y/
VIDEO
IN
LINE
P48
MIC
LINE
MIC
LINE
MIC
AUDIO
IN 1
LINE
P４８
MIC
AUDIO
IN 2
PGM AUDIO
OUT 1
PGM AUDIO
OUT 2
TALLY
OUT
REMOTE
MO
T
E
AC IN
100/200V(85-240V)
LANC
TALLY
OPT
REF. INHD/SDI OUT 1
PROMPTER/
IN OUT
VIDEO OUT
HD-Y/VIDEO
OUT
RET1 IN
TC IN
TC OUT
REMOTE
HD/SDI IN1 HD/SDI OUT 2
HD-Y/VIDEO
REF. VIDEO IN
RET2 IN
HD-Y/VIDEO
HD/SDI IN2
RET RET
INTERCOM
12 1
2
MADE IN JAPAN
AUDIO IN
CA
AUDIO OUT
DC IN
12V(12V-18V)
PGM
2W PROD
2W ENG
INTERCOM 4W
LS700
LS-800
OPT connector
OPT connector
AC 100/200V
AC IN
100/200V(85-240V)
supplied AC power cable
Optical Fiber Camera Adaptor LS-700/Optical Fiber Base Station LS-800
LS-700/LS-800
