Instruction User Manual

31

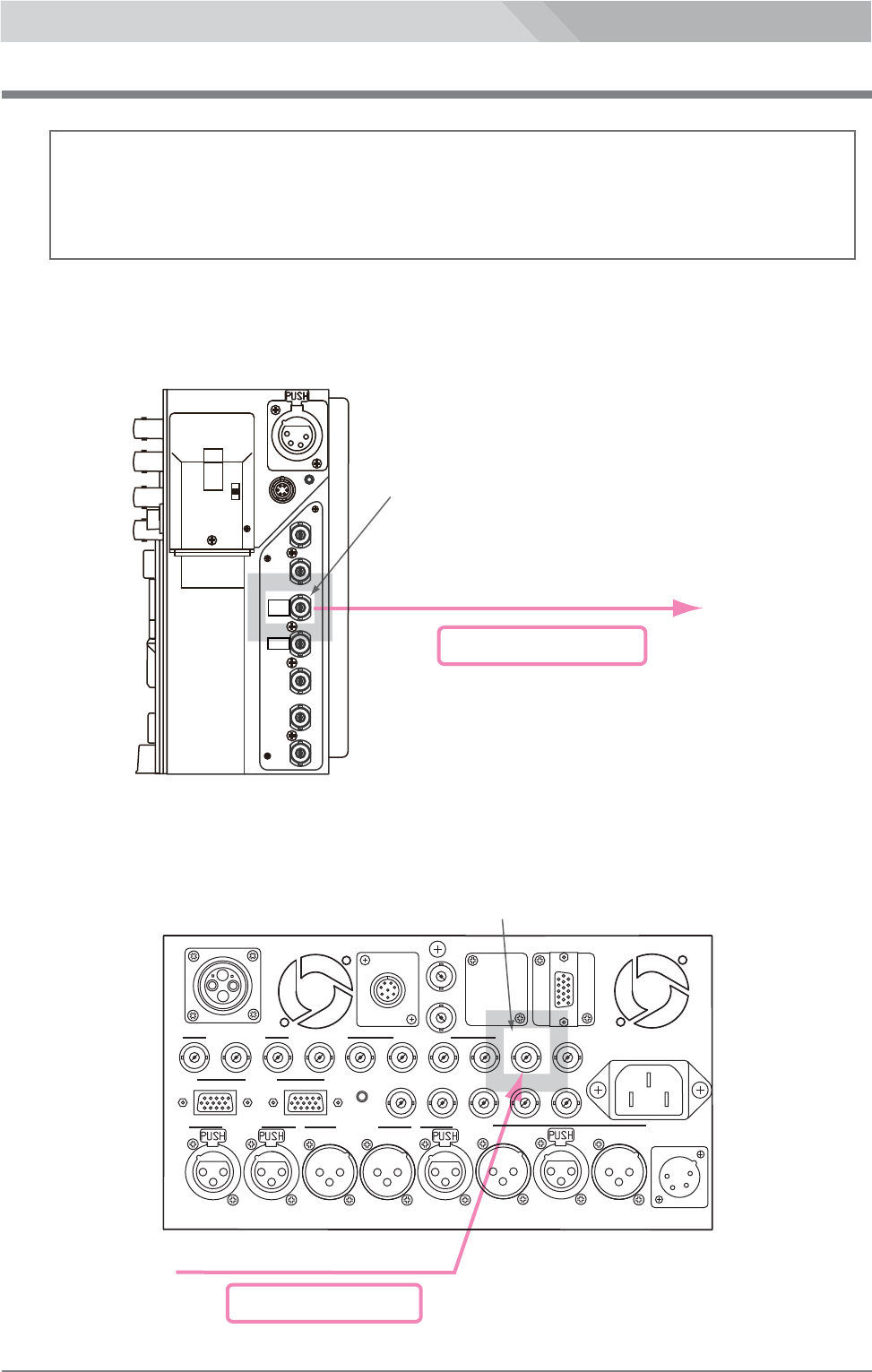

RET HD-SDI IN 2 connector
2
Connect the HD/SD-SDI output signal from a video camera, etc. to the RET HD/SDI IN2 connector with
a BNC cable.
Connect the RET HD-SDI OUT2 connector to a prompter with a BNC cable.
1
to
prompter,
etc.
RET
HD-SDI
OUT2 (BNC)
PROMPTER VIDEO signal (3G/HD/SD-SDI) connection
from
video camera,
etc.
NOTE : In case of using the prompter with the 3G/HD/SD-SDI input, connect the RET HD-SDI
OUT 2 connector of LS-700 to a promptor and connect the 3G/HD/SD-SDI signal from
an external video camera, etc. to the RET HD/SDI IN 2 connector of LS-800.
AC IN
100/200V(85-240V)
LANC
TALLY
OPT
REF. INHD/SDI OUT 1
PROMPTER/
IN OUT
VIDEO OUT
HD-Y/VIDEO
OUT
RET1 IN
TC IN
TC OUT
REMOTE
HD/SDI IN1 HD/SDI OUT 2
HD-Y/VIDEO
REF. VIDEO IN
RET2 IN
HD-Y/VIDEO
HD/SDI IN2
RET RET
INTERCOM
12 1
2
MADE IN JAPAN
AUDIO IN
CA
AUDIO OUT
DC IN
12V(12V-18V)
PGM
2W PROD
2W ENG
INTERCOM 4W
3G/HD/SD-SDI signal
3G/HD/SD-SDI signal
LS-700
LS-800
Optical Fiber Camera Adaptor LS-700/Optical Fiber Base Station LS-800
LS-700/LS-800
IF OUT
RET
HD-SDI
OUT2
HD-SDI
IN2
REF.
OUT
HD-SDI
IN1
RET
HD-SDI
OUT1
LANC
TC
IN
TC
OUT
DC OUT 15V (MAX3A)
▲
OFF
H
L
