Instruction User Manual

LS-800
20
Optical Fiber Base Station LS-800

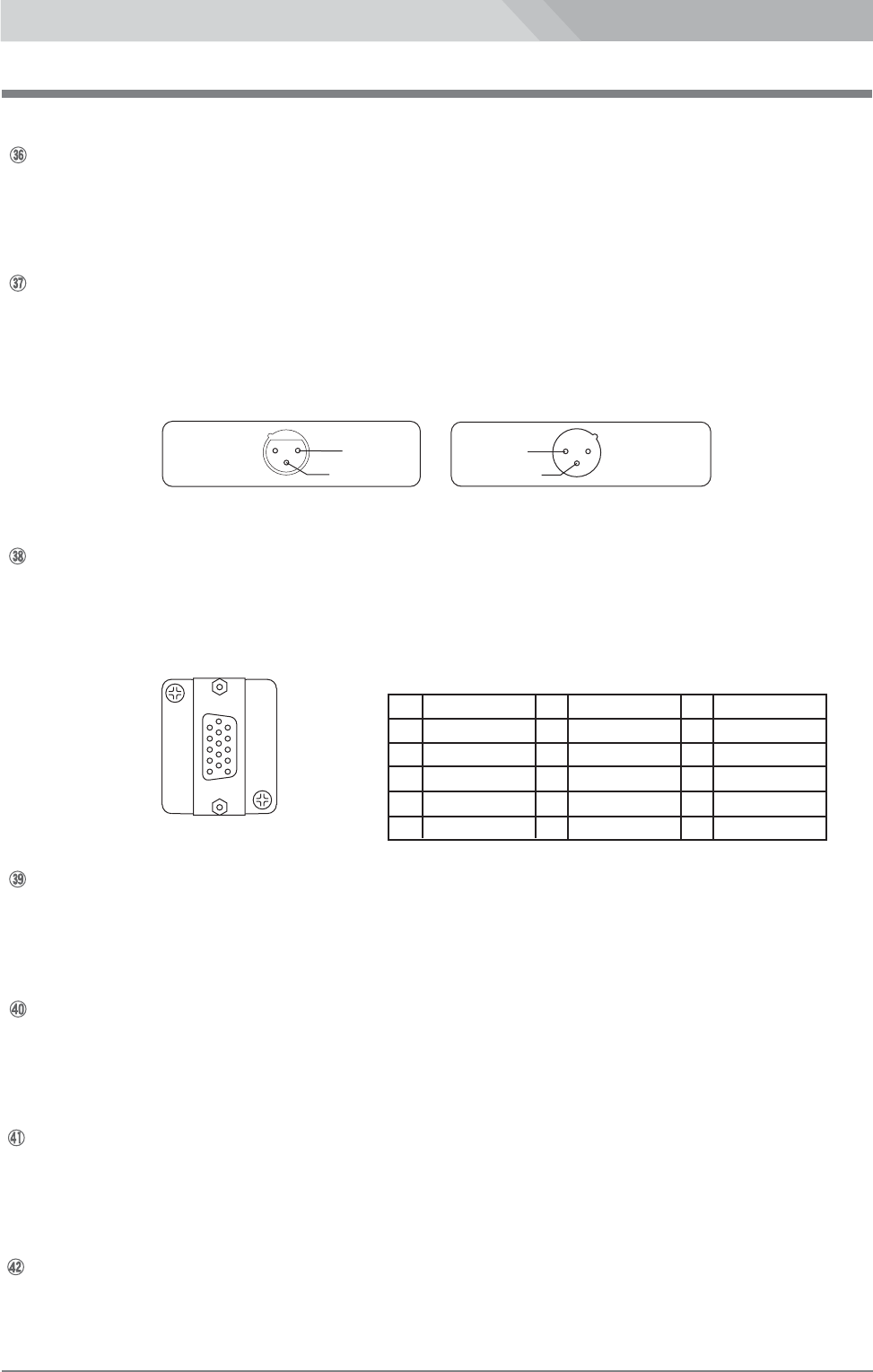

Rear panel
INTERCOM 2W PROD connectors (XLR 3-pin, male and female)
Connect to an external 2-wire intercom line for a producer.
INTERCOM 4W connector (D-sub 15-pin, female)
Connect to an external 4-wire intercom line.
Connect to the AC power supply with the supplied AC power cable.
AC IN 100/200V(85-240V) Connector
Connect to the external DC 12V power supply.
DC IN 12V (12V-18V) connector (XLR 4-pin, female)
FAN
Works when the POWER switch is turned on.
INTERCOM 2W ENG connectors (XLR 3-pin, male and female)
Connect to an external 2-wire intercom line for an engineer.
INTERCOM 4W Connector (D-sub 15-pin, female)
Pin Assignment
INTERCOM 4W
1PIN : GND
2PIN : NC
3PIN : SIGNAL
1PIN : GND
2PIN : NC
3PIN : SIGNAL
XLR 3-pin, female
XLR 3-pin, male
Pin assignment
LANC Connector (φ 2.5 mini-jack)
Connect with the LANC remote controller.
No. Signal
1 COM(GND)
2 PROD IN H
3 PROD IN L
4 PROD OUT H
5 PROD OUT L
No. Signal
6 NC
7 NC
8 NC
9 NC
10 NC
No.
Signal
11 COM(GND)
12 ENG IN H
13 ENG IN L
14 ENG OUT H
15 ENG OUT L
