Instruction User Manual

LS-800
19
Optical Fiber Base Station LS-800

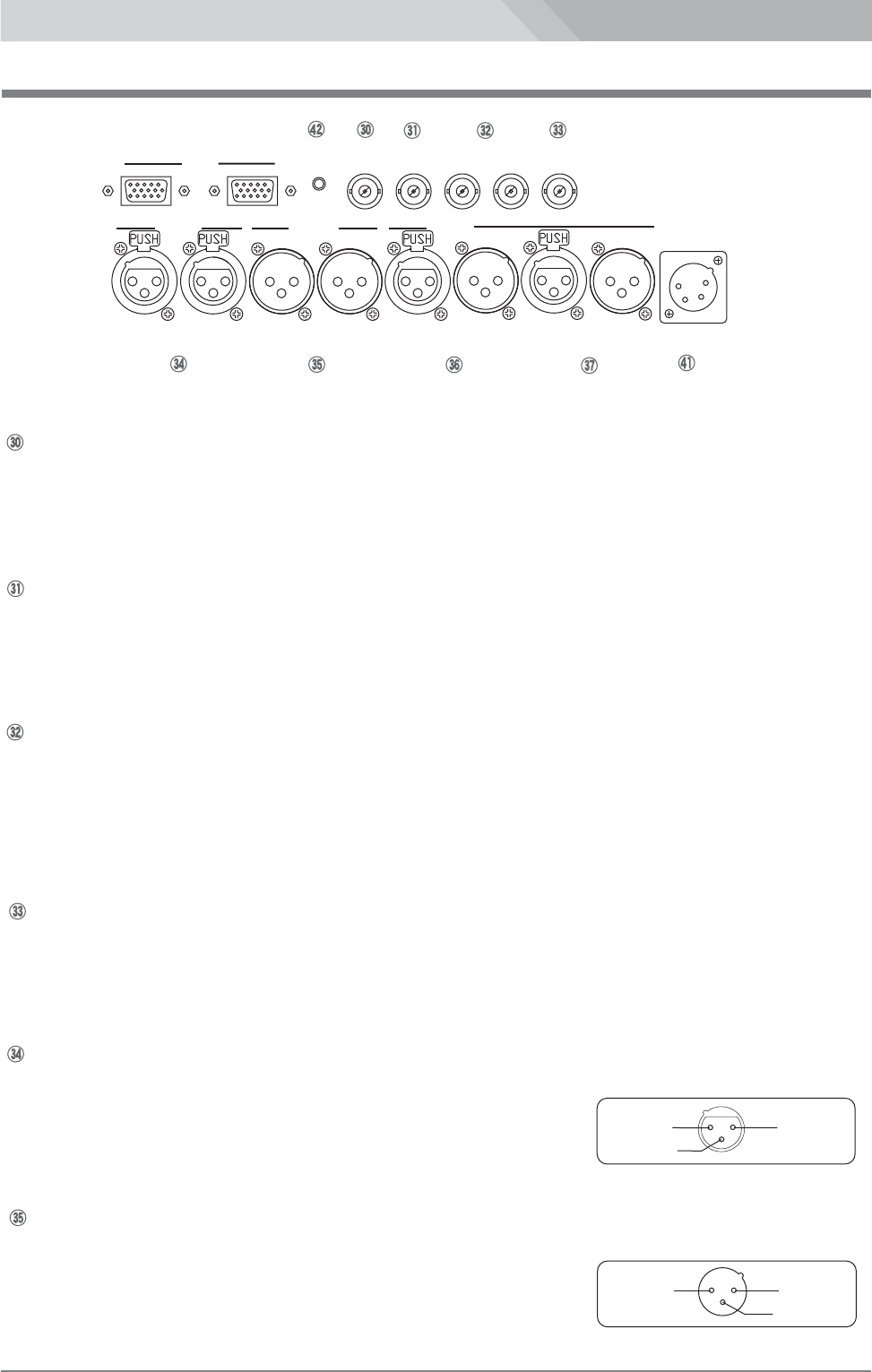

Rear panel
INTERCOM
12 1
2
MADE IN JAPAN
AUDIO IN
CA
AUDIO OUT
DC IN
12V(12V-18V)
PGM
2W PROD
2W ENG
LANC
TALLY
PROMPTER/
IN OUT
VIDEO OUT
HD-Y/VIDEO
OUT
RET1 IN
REMOTE
HD-Y/VIDEO
REF. VIDEO IN
RET2 IN
HD-Y/VIDEO
HD-Y/VIDEO OUT connector (BNC)
Outputs the HD-Y or compoosite video signal from LS-700.
HD-Y/VIDEO RET 1 IN ／ HD-Y/VIDEO RET 2 IN connectors (BNC)
Input the HD-Y or composite return video signal from a switcher. The return signal selected by the RET
1/2 select switch of LS-700 can be output from the RET 1/2 HD-Y/VIDEO OUT connector of LS-700.
PROMPTER/ REF. VIDEO IN connector (BNC)
Input a composite video signal for a prompter or a reference video signal.
REMOTE VIDEO OUT connector (BNC)
Outputs the composite video signal input to LS-700 from a camera via the 8-pin remote control cable.
PGM AUDIO IN 1/2 connectors (XLR 3-pin, female)
Input the audio signal from a switcher, an external audio equipment,
or etc.
CA AUDIO OUT 1/2 connectors (XLR 3-pin, male)
Output the audio signal from LS-700.
1PIN : GND
2PIN : HOT
3PIN : COLD
1PIN : GND
2PIN : HOT
3PIN : COLD
Pin assignment XLR 3-pin,female
Pin assignment XLR 3-pin,male
