TALLY Signal Connection
Connection
The Front TALLY indicator lights up when the tally input signals are as follows.
1
2
Connect the tally output signal from a camcorder, a camera adaptor, switcher, etc. to the TALLY 1 connector
or TALLY 2 connector.
TALLY 1 コネたはTALLY 1 コネカメタリ出力
The brightness of the Rear TALLY(RED) can be selected by the TALLY OFF/L/H display select swith as follows.
3
Input voltage of theTALLY 1 connector = 2 - 4 V : GREEN
4 - 5 V : RED
0 - 2 V : OFF
The Rear TALLY indicator lights up only to RED when the tally input signals are as follows.
H : The tally indicator lights up brightly
L : The tally indicator is dimmed to the lower brightness.
OFF : The tally indicator is turned off.
TALLY 2 コネ、ター入力信が接ON/OFF 使
ーはー入力信号の電圧に, ン(2∼4V), (4∼5V)に点灯
ーはーの
ー()は切替で OFF(消灯)/L(low)/H(high) 切替え
4
In case of using the TC TALLY :
Connect the SDI(HD/SD) 1 or RET IN connector to input the HD/SD-SDI video signal.
TCを使用す場合はHD/SD-SDI ビデ信号(エTC信号)を接続/入
When the TC TALLY is set on the MENU, the input signal of the TALLY 1/2 connectors doesnt work.
TC TALLY がで設定は、TALLY 1/2 力は動作ん。
Input signal of the TALLY 2 connector = short(0 V) : RED
open : OFF
Input voltage of the TALLY 1 connector = 4 - 5 V : RED
0 - 2 V : OFF
Input signal of the TALLY 2 connector = short(0 V) : RED
open : OFF

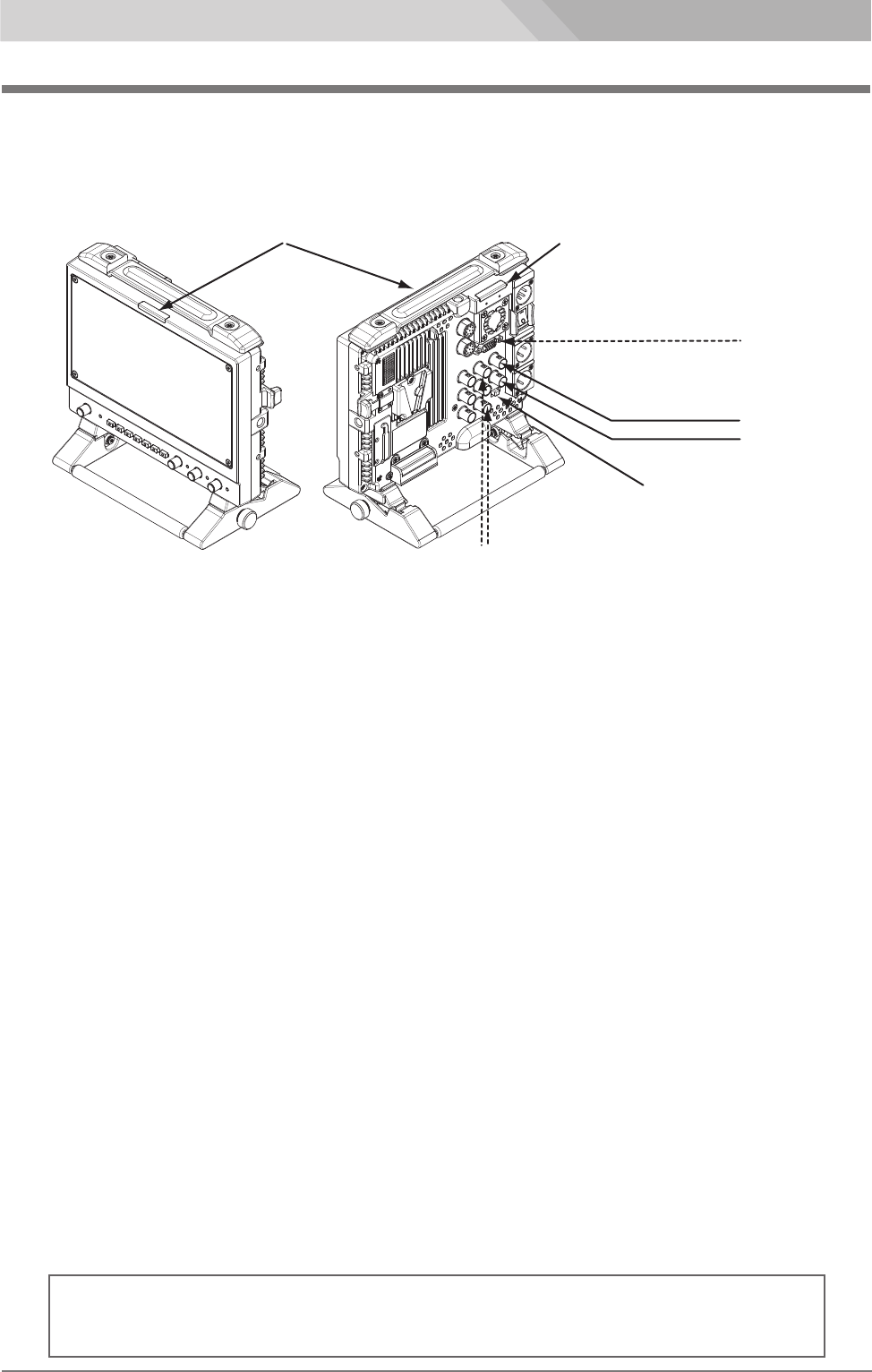

HD Monitor HDM-70WV
Display select switch
OFF/L(low)/H(high)
TALLY 1 (BNC)
TALLY 2 (BNC)
Rear TALLY indicator, RED only
Front TALLY indicator, RED and GREEN
tally signal
in VF signals
tally signal
I/F (D-sub 15-pin)
embedded TC signal in SDI signal
SDI IN 1 (BNC)
SDI RET IN (BNC)
