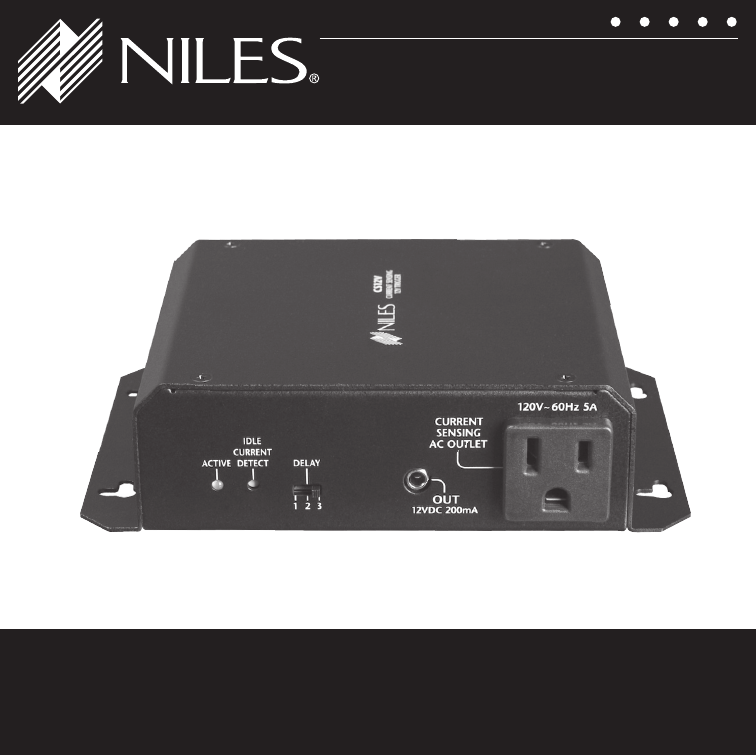

I N S TA L L AT I O N G U I D E CURRENT SENSING 12VOLT TRIGGER CS12V DS00430A-1 CS12V.
CONGRATULATIONS! Thank you for choosing the CS12V from Niles. With proper installation and operation, you should enjoy years of trouble-free use. Niles manufactures the industry’s most complete line of custom installation components and accessories for audio/video systems. To see the complete Niles product assortment, visit us on the Internet at: www.nilesaudio.
INTRODUCTION A current sensing trigger enables you to activate voltage controlled devices by simply turning another device on. For example, you can trigger an electric lift by turning your television on. The CS12V provides this capability in a compact, easy to install package. The CS12V is compatible with virtually any electrical device because of its ability to sense the current draw of whatever is plugged into it.
INSTALLATION CONSIDERATIONS CS12V PRODUCT OVERVIEW See Figure 1 1. AC Plug – Supplied 3 prong 16 gauge power cord provides power to CS12V 2. Active light – Bicolor LED indicates when CS12V is active 3. Idle Current Detect button – Sets current sensing “memory” for the component’s off position 4. Delay – Provides three different delays for 12 volt triggering (0 seconds, 5 seconds and 10 seconds) 5. 12V DC output – 3.5mm jack provides 12V DC/ 200mA output 6. Current Sensing AC outlet – Trigger device (i.e.
Figure 1: CS12V Product Overview 1 LR11473 AC IN 120V~60Hz 8A~ 2 3 4 5 6 120V~60Hz 5A,600W~ IDLE CURRENT ACTIVE DETECT CURRENT SENSING AC OUTLET DELAY 1 2 3 OUT 12VDC 200mA (CONTINUED ON NEXT PAGE) NILES AUDIO CORPORATION – 1-800-BUY-HIFI DS00430A-1 CS12V.
PLACEMENT OF THE CS12V Place the CS12V conveniently close to the component it will be connected to. Generally, the CS12V is placed in a concealed location because its indicator lights are only used during installation. Placement possibilities include: 1. Table-top – on the floor or shelf behind the equipment Figure 2. 2. Wall-mount – affixed to the back of the equipment cabinet or a nearby wall Figure 3. Figure 2: Table-top (on the floor or shelf behind the equipment).
INSTALLATION Before you begin, make sure the AC power and 12VDC power cables will both reach an unswitched AC outlet. If necessary, terminate the wire that will be used for 12VDC triggering with a 3.5mm mono plug, with the tip being positive and the sleeve as ground Figure 4. IMPORTANT Make all final connections to the CS12V before connecting the AC power supply. Figure 4 1. Plug the component’s AC power cable into the current sensing outlet. 2. Plug the 12VDC trigger output cable into the 12VDC output 3.
��������������������������� ����� ����������� ��������� Figure 5: Setup of CS12V ������ �������� ������ �������� �������� ��������� ��������� ��������� Figure 6 Figure 7 6 DS00430A-1 CS12V.
OPERATION SETTING THE OFF STATE OF THE CONNECTED COMPONENT Operating the CS12V is a simple matter of setting the “OFF” state of the connected component. Many components exhibit a small current draw even when they’re turned off. To calibrate the CS12V to properly account for this residual current draw: 1. Make sure the component is plugged into the current sensing outlet of the CS12V and is turned off. 2.
SPECIFICATIONS Trigger Voltage Output: 200mA Unit Dimensions: 6" wide x 1 3/4" high x 4 1/2" deep Shipping Weight: 1 lb. 8 DS00430A-1 CS12V.
LIMITED WARRANTY NILES AUDIO CORPORATION (“NILES”) WARRANTS ITS ACTIVE PRODUCTS (THOSE REQUIRING AC OR BATTERY POWER) TO THE ORIGINAL PURCHASER TO BE FREE OF MANUFACTURING DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF TWO YEARS FROM DATE OF PURCHASE. THIS WARRANTY IS SUBJECT TO THE FOLLOWING ADDITIONAL CONDITIONS AND LIMITATIONS.
