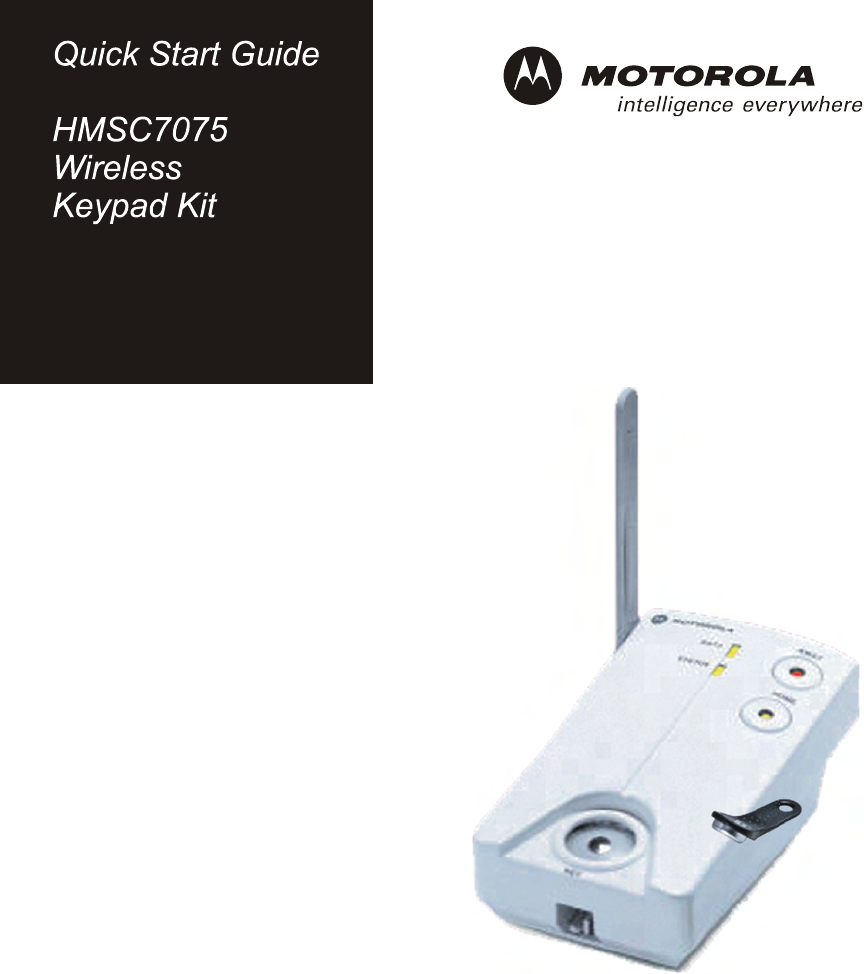

Introduction Congratulations on your purchase of the Motorola Wireless Keybpad Kit. This module enables you to arm or disarm your entire Motorola homesight™ system at once upon entry or exit of your home. Its security design ensures that only a registered Keypad Key can set the system. Using Your Home/Away Module Position the Keypad module at an entrance to the house, near the garage door, laundry room door, or front door.
Package Contents A WA Y DAT A STATUS H OME KEY Keypad Module (2) Keypad Keys Tabletop Mounting Base Hardware Mounting Kit 2 AA Batteries 12V Power Discovery Adapter Tool Installation Overview To install your Keypad module: 1 Choose an appropriate location for the Keypad module as described in Installation Hints. 2 Install batteries or plug the AC adapter into the wall and the module. 3 Register the module with your Wireless System Controller using a process called discovery.
Installing Your Wireless Keypad Your module can either be mounted on a wall or sit on a horizontal surface using the included tabletop mount adapter. Wall Mount Your Wireless Keypad Warning: When mounting near a window, drilling too close to the glass could break the glass and possibly cause it to shatter. The window extends deeper into the frame than can be seen; therefore, ensure your screw is beyond the glass before drilling.
Table Mount Your Wireless Keypad The module can be placed on any horizontal surface. 1 Make sure you have completed the discovery process. 2 Ensure that fresh batteries have been installed or that the AC adapter is connected. DA TA S TA HO M KEY 3 Attach the tabletop adapter by pressing it on to the underside of the Keypad module.
Troubleshooting Problem Solution Module will not register with the Wireless System Controller • Ensure that the module's AC adapter is plugged in or has fresh batteries. • Ensure that the Wireless System Controller is powered and online. • Ensure that you are pressing the Discovery button. • Reposition the module closer to the Wireless System Controller. • Try another location.
Regulatory Information CAUTION: Changes or modifications not expressly approved by Motorola for compliance could void the user’s authority to operate the equipment. FCC Compliance Class B Digital Device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment.
Limited Warranty Wireless Keypad Motorola, Inc., Connected Home Solutions ("Motorola") Limited Warranty.
