Link Box Quick-Setup-Guide 2011-October-17 LAERDAL MEDICAL AS Link Box – Quick-Setup-Guide 1/7
CONTENT DESCRIPTION AND SYSTEM SETUP............................................................................ 3 SAFETY INSTRUCTIONS ............................................................................................. 3 User Environment .................................................................................................... 3 Power Connection and Hazardous Voltage ................................................................... 4 Servicing ..........................................

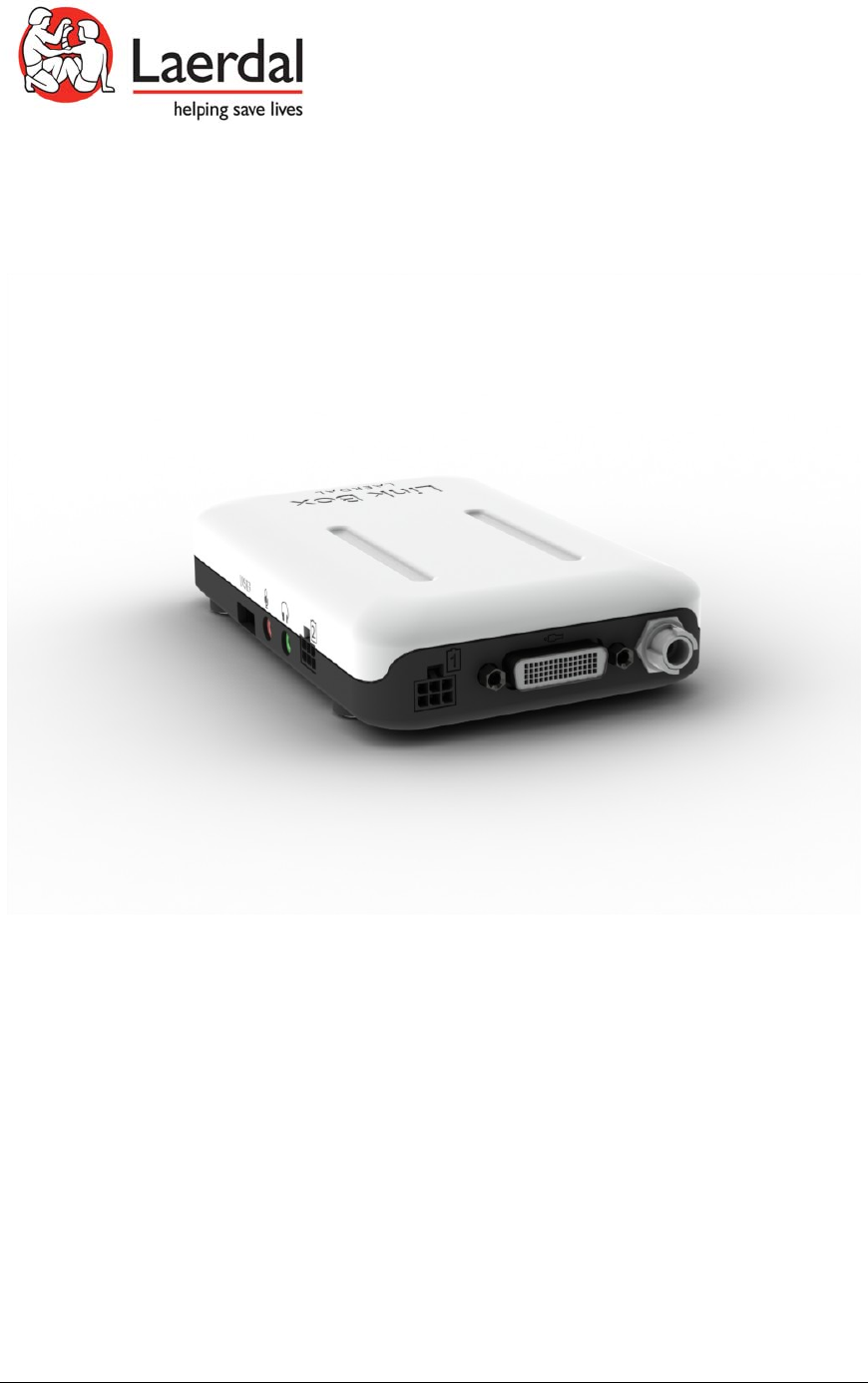

DESCRIPTION AND SYSTEM SETUP The Link Box is a vital signs simulation unit. Connected to an applicable medical training simulator, like Nursing Anne or ALS Simulator, the Link Box provides different physiological parameters to the simulator. The Link Box replaces the existing Laerdal VitalSim Vital Signs Simulator. The Link Box may be operated by the remote control SimPad. With the system you are able to perform medical simulations, preparing yourselves for real-life situations.
Power Connection and Hazardous Voltage The product or its accessories may have a hazardous voltage inside. Never attempt to open this product, or any peripherals connected to the product, where this action requires a tool.
SET UP YOUR SIMULATOR WITH LINK BOX Connect Link Box to simulator Connect the simulator cable, supplied with the Link Box, to Link Box itself and the simulator. The position where it connects to the simulator to simulator will vary from simulator to simulator. Connect blood pressure tube to Link Box Connect the transparent tube from the simulator, if such equipped, to the white blood pressure connector on the Link Box.
Power the Link Box To mains using AC/DC adapter The Link Box must be powered from the mains using the supplied AC/DC adaptor. Connect Link Box with other accessories as needed CPRmeter USB accessories Audio input – line in Audio output – line out START-UP 1. 2. 3. 4. Make sure the simulator cable, a power source (and the blood pressure tube if desired) are connected to the Link Box Press the ON/OFF button on the Link Box for at least half a second, turn the Link Box on.
FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits.
