TECHNOLOGY FOR THE MIND NeuroTek Elite Series Deluxe EyeScan Quickstart Guide Important: Please read all instructions completely before operating this device ©NeuroTek 2020 Version 1.
Liability Disclaimer This product is a tool designed to assist the clinician in the administration of (EMDR). The purchaser/clinician agrees to accept full responsibility for any harmful results and/or undesirable consequences obtained from the use of this machine. The manufacturer of this machine shall not be held liable for adverse affects caused to clients resulting from the administration of EMDR or any other form of therapy using this machine.
Product Features 22 LED lights in 4 color options and two modes: Colors -Blue, Green, Teal, & Purple Scan Mode – the lights go completely back and forth along the entire lightbar Ends Mode – the lights alternate illumination at each end of the lightbar only Easily able to adjust LED brightness, audio volume, pulser intensity, and overall speed settings from controller (options from 1-10) Standard Tac doubles as wireless remote control for the EyeScan One available tone for audio stimulation with headset Sta
Deluxe EyeScan Getting Started Thank you for purchasing the NeuroTek Elite Series Deluxe EyeScan. Your Eyescan can be controlled with any NeuroTek Tac. The Standard Tac has and adjustment range of 1–10. Advanced and Deluxe Tacs have an adjustment range of 1-20. If using with wired devices, plug the Pulsers and/or Headset into the Tac.
Troubleshooting Guide If your EyeScan does not respond to inputs and you cannot end a session or make adjustments, there is a reset feature that will allow you to reboot the device. Your settings and profiles are not effected. The reset button is just above the headset icon and can be activated using a paper clip. You will feel the button click. Release the button and the EyeScan will restart.

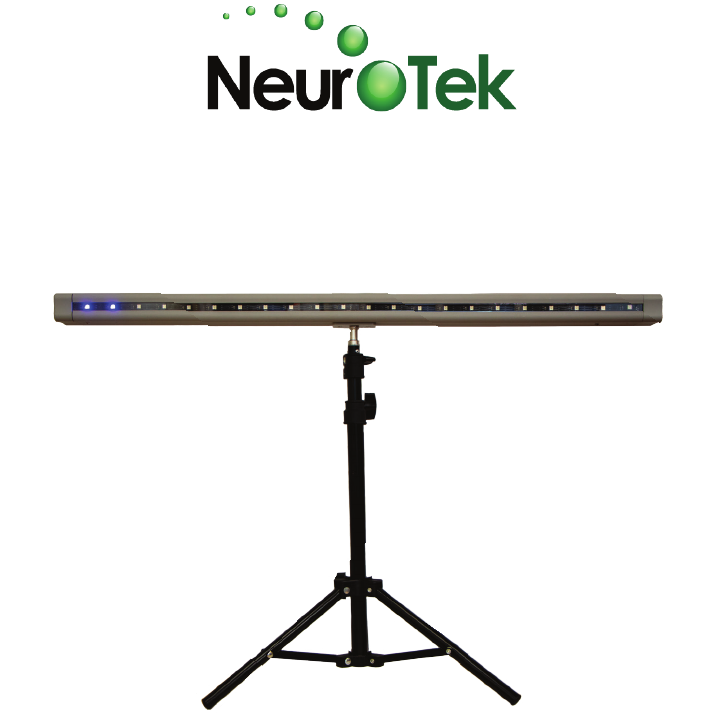

TECHNOLOGY FOR THE MIND NeuroTek Tripod with Quick Release System for all EyeScans Quickstart Guide Important: Please read all instructions completely before operating this device ©NeuroTek 2020 Version 1.
Limited Warranty The manufacturer warrants this equipment to the original purchaser against defective material or workmanship during the warranty period from the date of purchase. The manufacturer’s responsibility under this warranty is limited to the repair or replacement of defective parts. The warranty period: One (1) year on all parts and components. The manufacturer reserves the right to determine whether the part or parts failed because of defective material, workmanship or other causes.
EyeScan Tripod Quick Release Platform ➊Quick Release platform assembly The EyeScan docking plate fits into the Quick Release platform as shown Connects to EyeScan Connects to the Tripod The quick release mechanism is controlled by this gold button which is activated by release bar. ©NeuroTek 2020 Version 1.
You can test it by pressing the two pieces together which will push the button on the quick release trigger that shuts when the two pieces meet. ➋ Attaching the Tripod and EyeScan The Tripod attaches to side with the lever ©NeuroTek 2020 Version 1.
The EyeScan connects to the docking plate which then goes into the platform attached to the tripod Once attached, the EyeScan can be removed and replaced from the docking plate by pulling the docking plate lever. ©NeuroTek 2020 Version 1.
Troubleshooting Guide If the lever won’t move it may be locked into place. Please unlock by moving the gold lever back to the unlock position. If EyeScan is not level, please ensure everything is in a tight position on the tripod and on the quick release attachment. The EyeScan can be used on the tripod with or without the quick release attachment by screwing the EyeScan directly onto the base of the tripod. For further assistance please email us at: emdrtools@neurotekcorp.com, or call 727-372-0104.
FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
11435 Challenger Ave Odessa, FL 33556 727-372-0104 www.neurotekcorp.com ©NeuroTek 2020 Version 1.
