Installation and Operation Manual Audio/Video Matrix Switch SM-nXm-C5AV-LCD

NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5

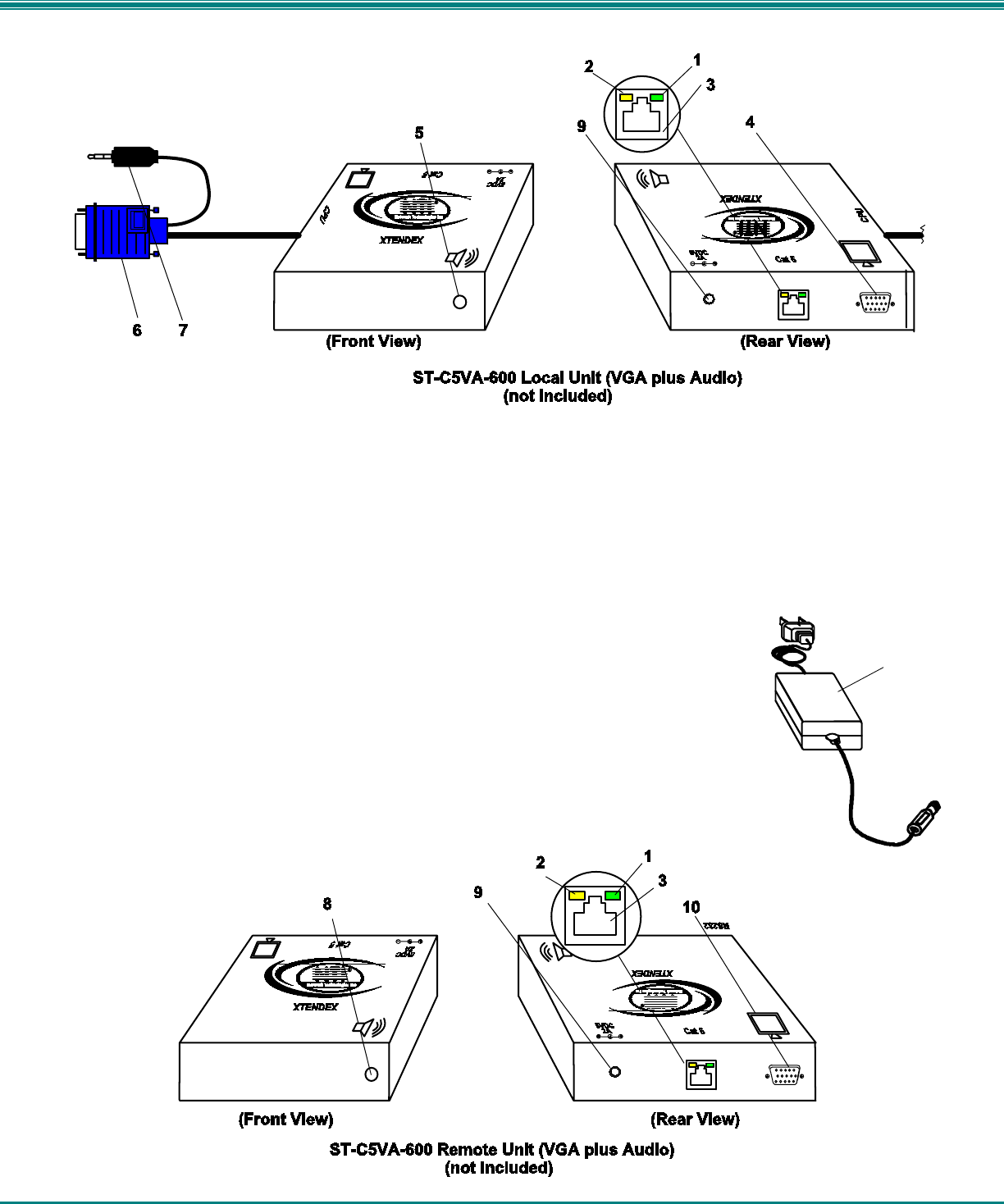

XTENDEX Features and Functions

1. Green LED- communication indicator- blinks when there is valid communication between the local and remote units.

2. Yellow LED- power indicator- illuminates when power has been supplied to the unit

3. Cat 5- RJ45 female- for connecting the CAT 5 cable

4. Video Connector- 15HD female- for connecting the local user's monitor

5. Audio Jack- 3.5mm stereo audio jack- for connecting to local speakers

6. Video Connector- blue 15HD male- for connecting to the video port on the CPU or KVM switch

7. Audio Plug- 3.5mm stereo audio plug- for connecting to CPU audio line out

8. Audio Jack- 3.5mm stereo audio jack- for connecting to remote speakers

9. 9VDC- 1.0A- connection jack for the AC adapter

10. Video Connector- 15HD female- for connecting the remote user's monitor

11. AC Adapter- to power the Remote and Local Units (1 for each required)

9 VDC

ADAPTER
