User's Manual

150Mbps/300Mbps Wireless-N AP / Repeater / Router client User Manual

button for a few seconds (2-6s) with a pencil when it is working, then release and it will

restore settings to the factory configuration.

The other way to restore factory settings is through the same user interface used in setup.

Click on ‘System management’- ‘Restore’, and click on the ‘Restore’ button.

2.4. Hardware Installation Procedures

The procedures to install the 150Mbps/300Mbps Wireless-N AP/ Repeater / Router client

please refers to the following picture

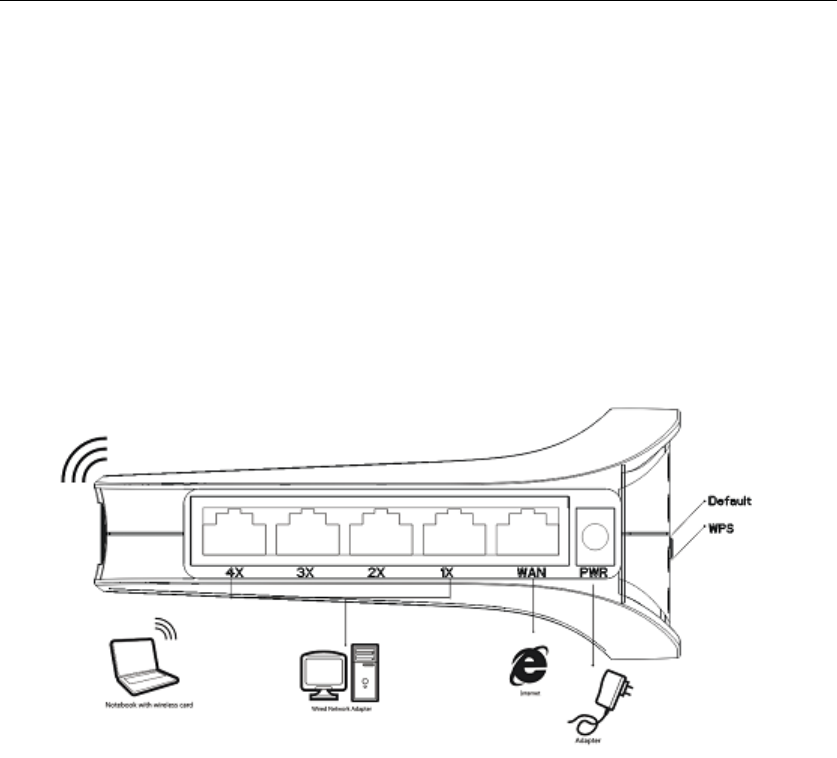

Figure 2-3

 Attach one end of an Ethernet cable to your computer’s Ethernet port, and the other end

to one of the LAN ports of your router.

 Connect another Ethernet cable from your Cable/DSL modem to the WAN port of your

router.

 Connect the single DC output connector of the power adapter to the power jack on the

back of the router and plug the Power Adapter into an AC outlet.
