10
Connect Your Speakers
The USB to audio cable with RCA and 3.5-mm mini jack connectors
lets you connect all types of speakers to your Music Extender.
To connect your speakers to the XAU2511:
• USB speakers. Connect your speakers directly to the XAU2511
USB port.
• Hi-Fi audio system. Connect your system to the XAU2511 USB
port using the RCA connectors on the provided USB to audio
cable.
• Speakers with a mini jack connector. Connect your speakers
to the XAU2511 USB port using the 3.5-mm mini jack connector
on the provided USB to audio cable.

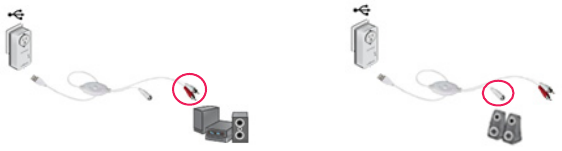

RCA connectors 3.5 mm mini jack
