ProSafe Wireless-N Access Point WNAP210 Reference Manual
Advanced Configuration 4-15
v1.0 March 2009
Configuring the WNAP210 as a Wireless Repeater
To configure the WNAP210 as a wireless repeater as shown in Figure 4-9:
1. Select Configuration > W
ireless Bridge > Bridging and Repeating. The Bridging and
Repeating screen displays.
2. Configure the operating mode of the
access points.
• Configure WNAP210 (AP1) on LAN Segment 1 in Repeater mode with the r
emote MAC
address of AP2.
• Configure WNAP210 (AP2) in Repeater mode
with MAC addresses of AP1 and AP3.
• Configure the WNAP210 (AP3) in Repeater mode with
the remote MAC address of AP2.

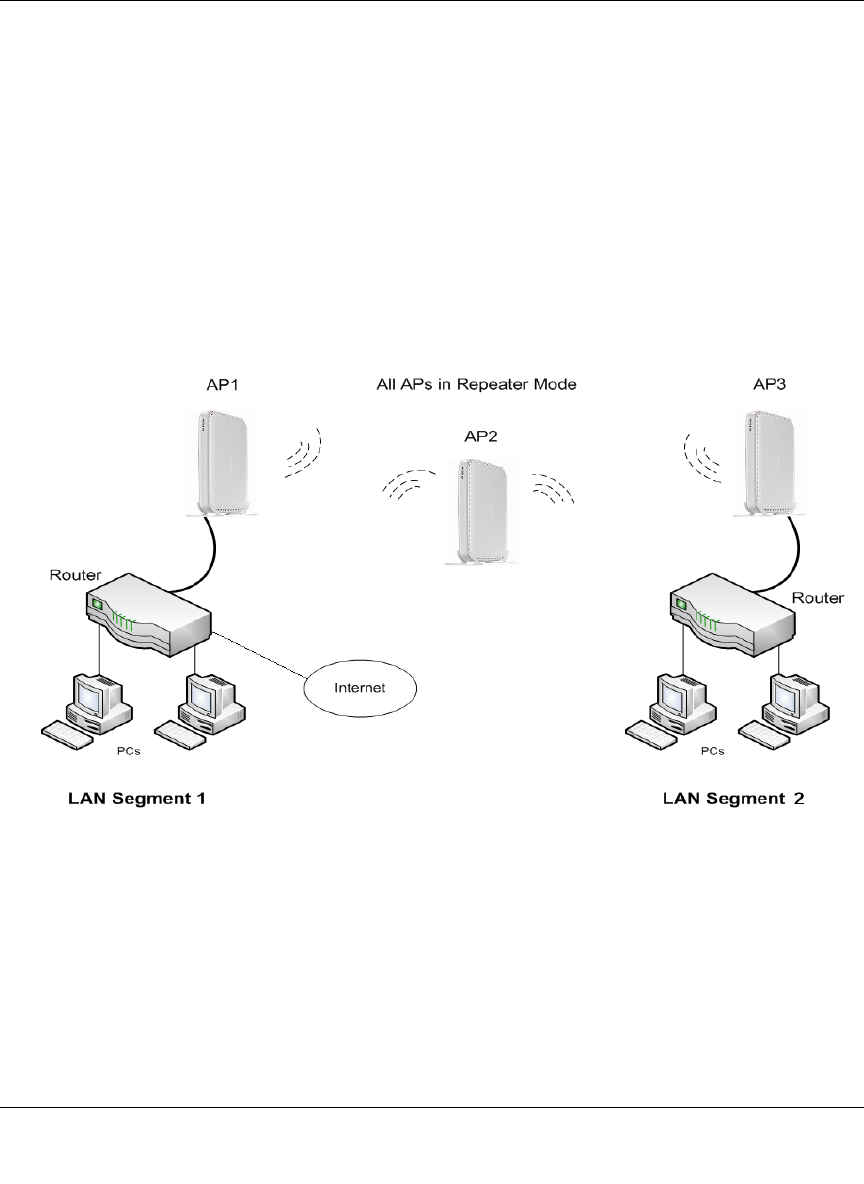

Figure 4-9
3. Verify the following parameters for all access points:
• The access points are configured to operate in
the same LAN network address range as the
LAN devices.
• All access points must be on the same LAN. That is, all
the LAN IP addresses of the
access points must be in the same network.
