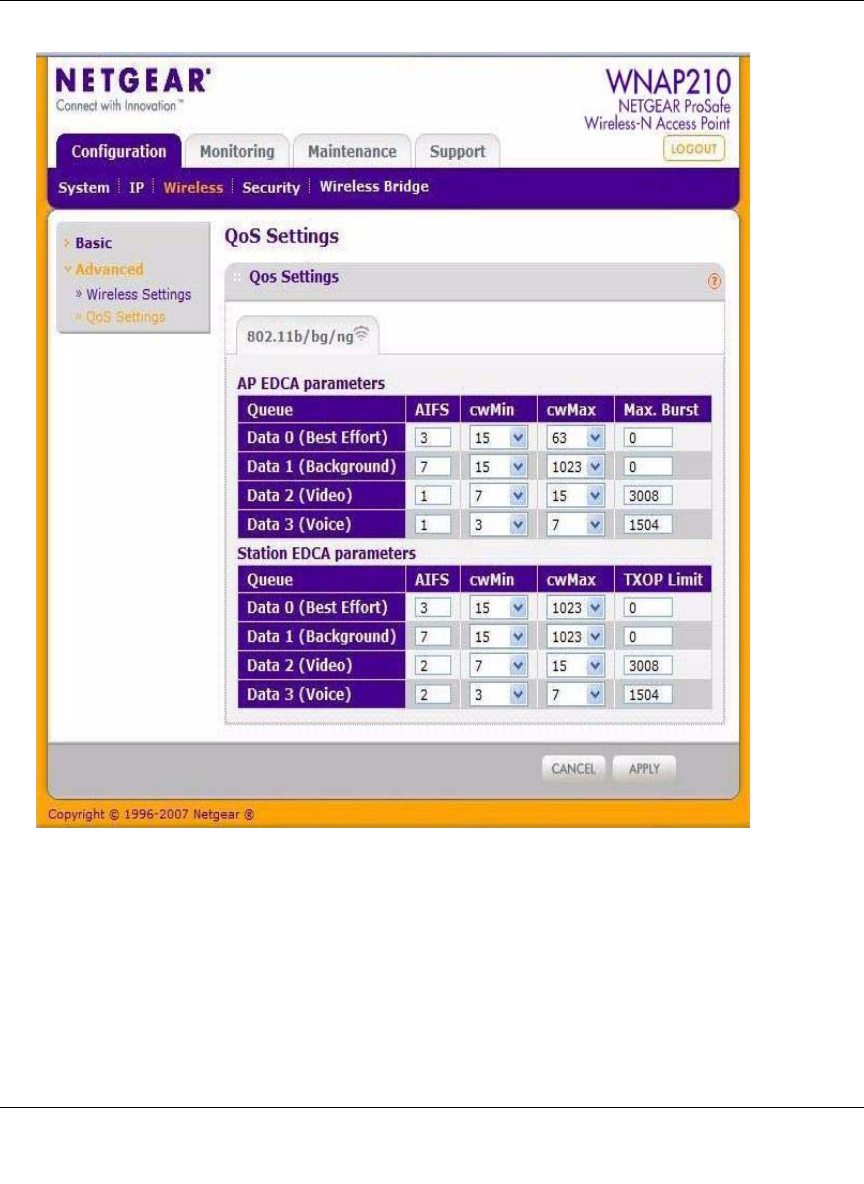

Figure 4-4
ProSafe Wireless-N Access Point WNAP210 Reference Manual
Advanced Configuration 4-7
v1.0 March 2009
The QoS options on the WNAP210 are as follows:
• AP EDCA paramete
rs. Specify the AP EDCA parameters for different types of data
transmitted from the access point to the wireless client.
• S
tation EDCA parameters. Specify the Station EDCA parameters for different types of data
transmitted from the wireless client to the access point. If WMM is disabled, you cannot
configure Station EDCA parameters.
