ProSafe Wireless-N Access Point WNAP210 Reference Manual
Advanced Configuration 4-3
v1.0 March 2009
Hotspot Settings
If you want the wireless access point to capture and redirect all HTTP (TCP, port 80) requests, use
this feature to redirect the requests to the specified URL. For example, a hotel might want all
wireless connections to go to its server to start a billing transaction.

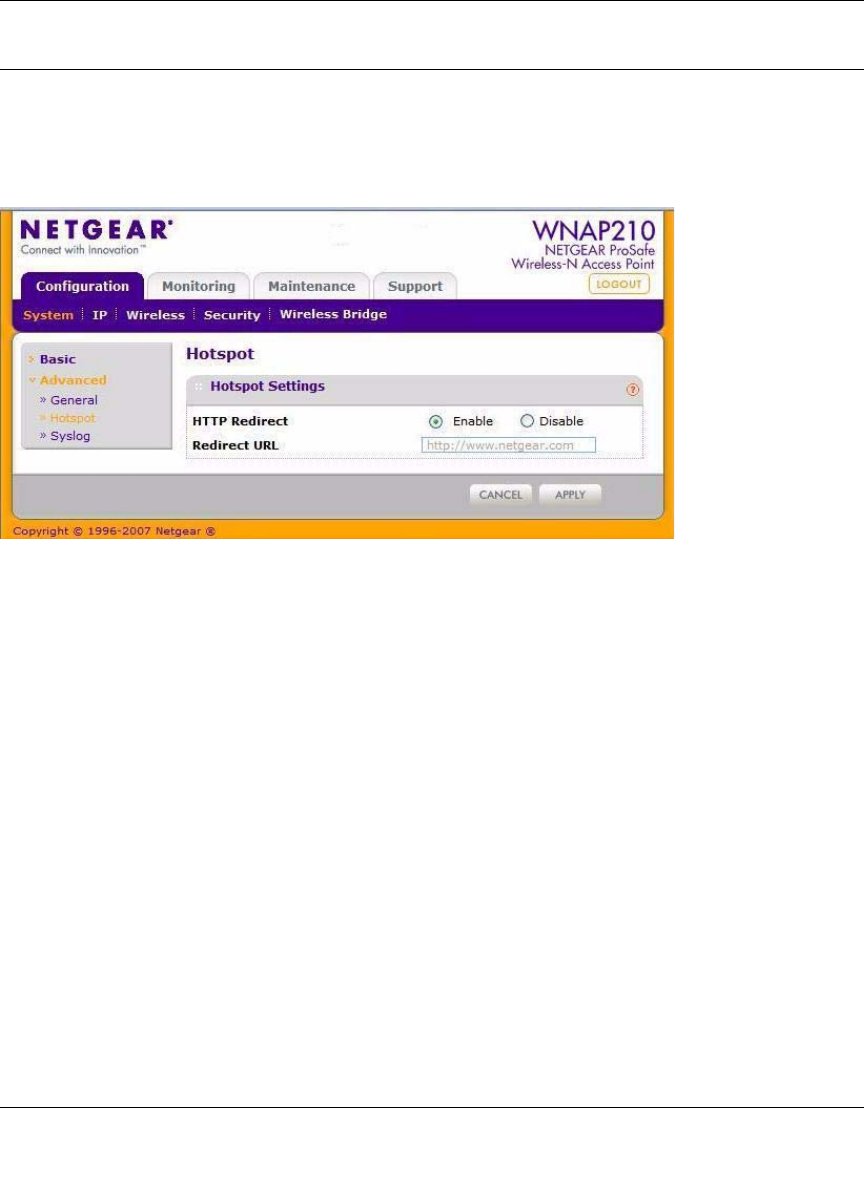

Figure 4-2
Note: The redirection will occur only the first time a wireless client opens a web browser.
To set up a hotspot server:
1. Select Configuration > System >
Advanced. The Hotspot screen displays, as shown in
Figure 4-2.
2. For HT
TP Redirect, enter the URL of the Web server to which you wish to redirect HTTP
(port 80) requests.
3. Click Ap
ply. All port 80 requests will now be redirected to the specified URL.
