ProSafe Wireless-N Access Point WNAP210 Reference Manual
2-38 Installation and Configuration
v1.0 March 2009
To configure WPA-PSK:
1. From the Network Authentication dro
p-down list, select WPA-PSK. By default, Data
Encryption will be set to TKIP.
2. En
ter the preshared key passphrase (network key).
3. Wireless Client Security Separation is set
to No (disabled) by default. If this feature is
enabled, associated wireless clients will not be able to communicate with each other. (This
feature is intended for hotspots and other public access situations.)
4. Click Ap
ply to save your settings.
Configuring WPA2-PSK
Not all wireless adapters support WP
A2. Furthermore, client software is required on the client.
Make sure your client card supports WPA2. Consult the product document for your wireless
adapter and WPA2 client software for instructions on configuring WPA2 settings.

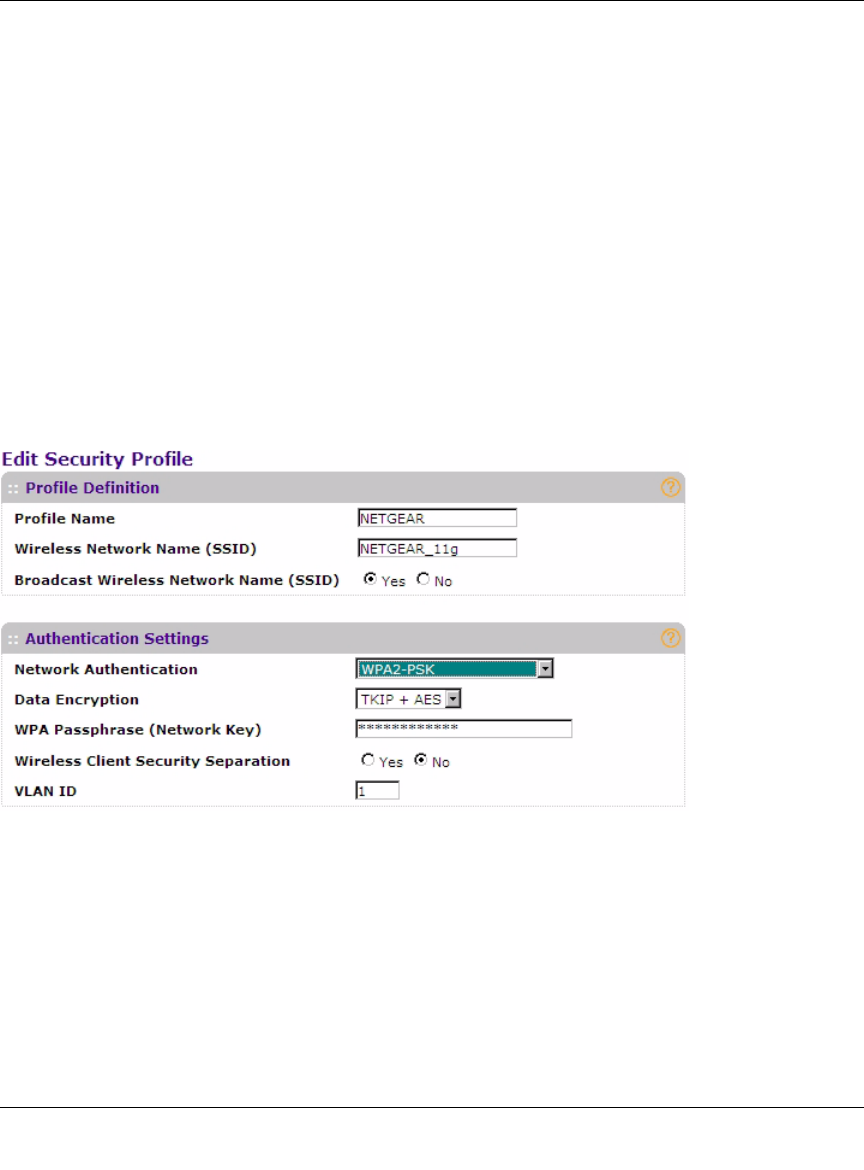

Figure 2-21
To configure WPA2-PSK:
1. From the Network Authentication dro
p-down list, select WPA2-PSK.. By default, Data
Encryption is set to AES.
2. En
ter the preshared key passphrase (network key).
