ProSafe Wireless-N Access Point WNAP210 Reference Manual
2-36 Installation and Configuration
v1.0 March 2009
Configuring WPA and WPA2 with RADIUS
Not all wireless adapters support WP
A and WPA2. Client software is required on the client:
• Windows XP and Windows 2000 with Service Pack 3, or later
, do include the client software
that supports WPA. The wireless adapter hardware and driver must also support WPA.
• Service Pack 3 does not include the client software
that supports WPA2. Make sure that your
client card supports WPA2. The wireless adapter hardware and driver must also support
WPA2.
Consult the product documentation for your wireless ad
apter, WPA client software for instructions
on configuring WPA settings, and WPA2 client software for instructions on configuring WPA2
settings.

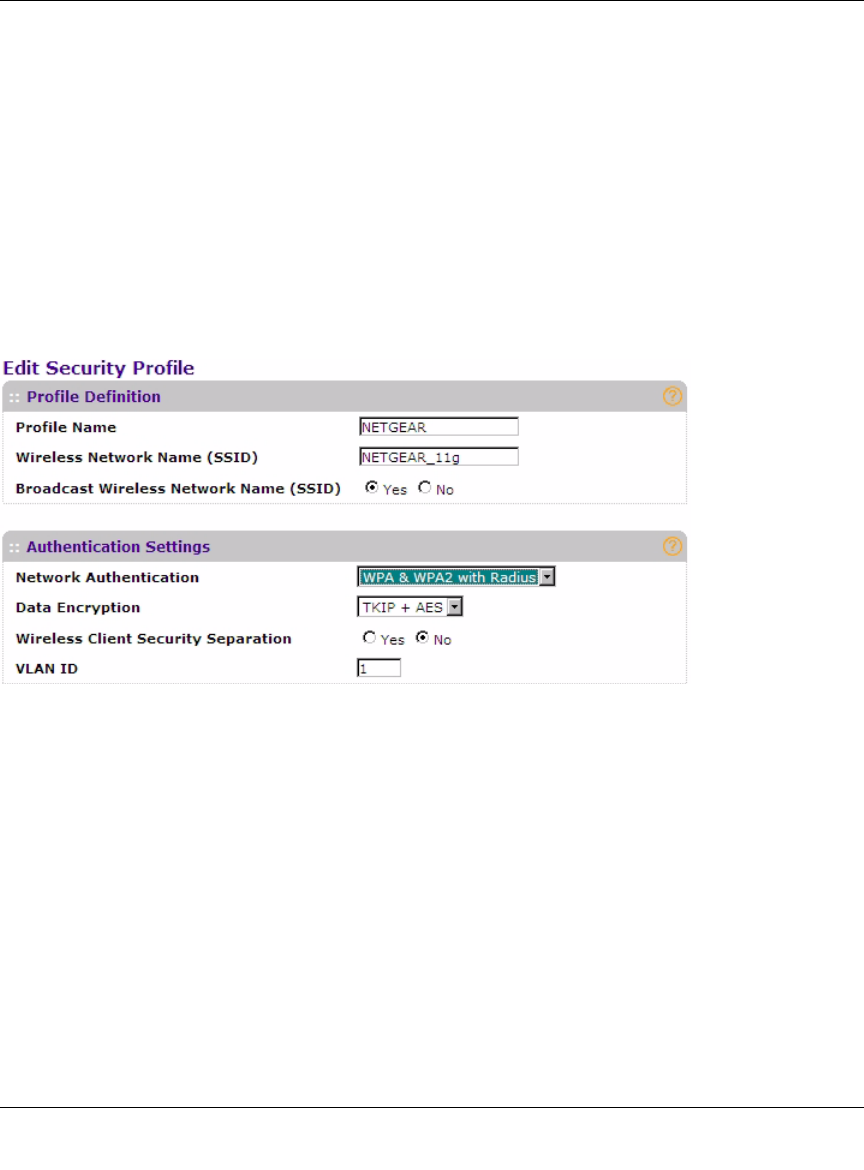

Figure 2-19
To configure WPA and WPA2 with RADIUS:
1. Select Configuration > Security > Advanced >R
ADIUS Server Settings. The RADIUS
Server Settings screen displays.
2. Enter the RADIUS sett
ings as shown in “Configuring the RADIUS Server Settings” on
page 2-27.
3. Click Ap
ply to save your RADIUS settings.
4. Select Secu
rity Profile Settings. The screen for the profile settings you selected displays.
When the Security Profile screen displays, select the security profile you want to modify and
click Edit.
