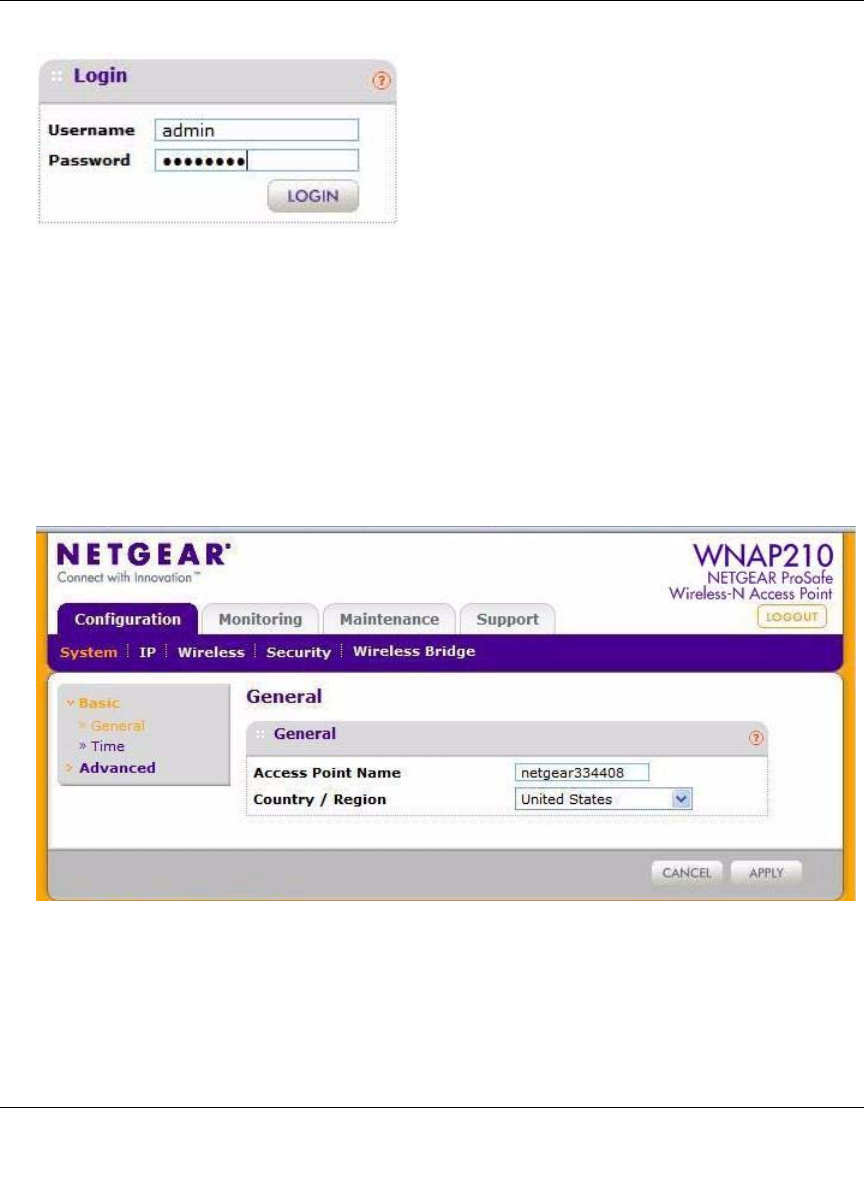

Figure 2-2
ProSafe Wireless-N Access Point WNAP210 Reference Manual
Installation and Configuration 2-5
v1.0 March 2009
3. Login. The general screen of the the access point displays as shown in Figure 2-3. The default
settings should be suitable for most users and environments.
• When the wireless access point is connected to the Inte
rnet, you can select the
Documentation link under the Web Support menu to view the documentation for the
wireless access point.
• Select LOGOUT to exit
the access point setup screens. (You arel automatically logged
out of the wireless access point after 5 minutes of no activity.)
Figure 2-3
4. Enter the access point name of the WNAP210.
