Manage Your Network
83
Orbi High-Performance AC3000 Tri-band WiFi System
4. Click the ADVANCED tab.

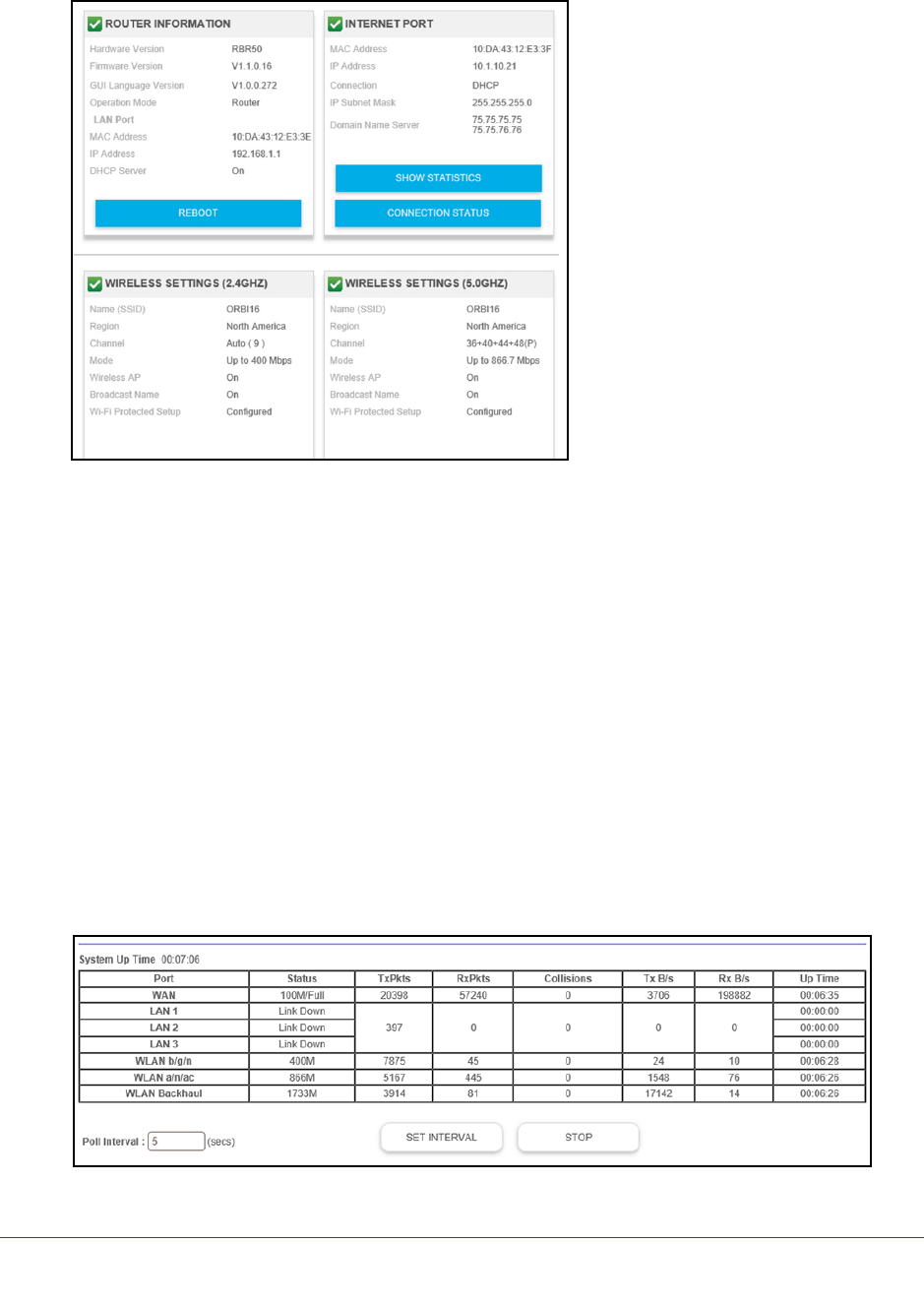

Display Internet Port Statistics
To display Internet port statistics:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
4. The BASIC Home page displays
5. Click the ADV
ANCED tab.
6. In the Internet Port pane, click the Show Statistics button.
