Specify Network Settings
77
Orbi High-Performance AC3000 Tri-band WiFi System
Note: To avoid interference with other routers or gateways in your network,
we recommend that you use different WiFi settings on each router.
You can also turn off the WiFi radio on the other router or gateway and
use the Orbi only for WiFi client access.
8. Click the Apply button.
The IP address of the router changes, and you are disconnected.
9. T
o reconnect, close and restart your browser and enter orbilogin.com.
Generate a New Backhaul Password
The backhaul password is a security key that is used in WiFi communication between the
router and the satellite. You can generate a new backhaul password. After you generate a
new backhaul password, you must use the Sync button to build a new backhaul connection
so that the router and satellite can communicate with each other using WiFi.
To generate a new backhaul password:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.

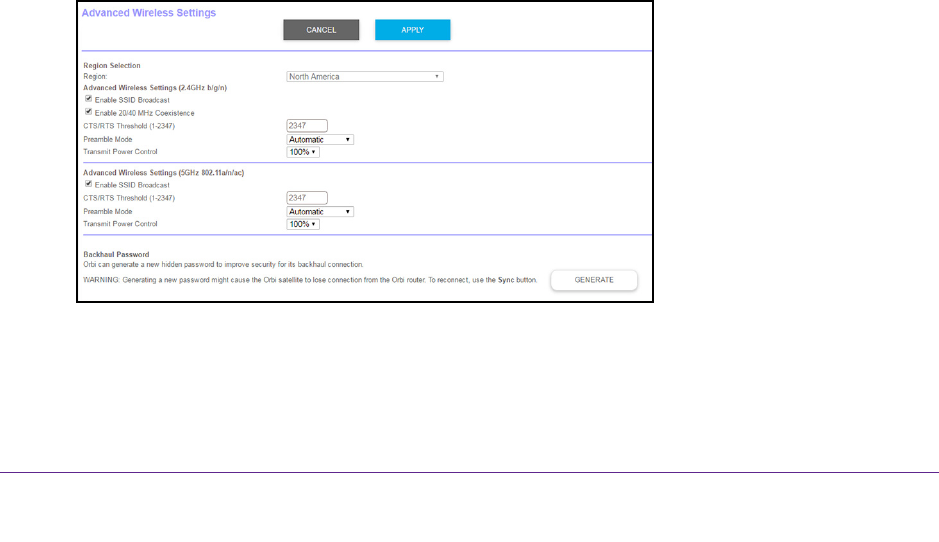

4. Select ADV
ANCED > Advanced Setup > Wireless Settings.
5. In the Backhaul Password section, click the GENERATE button.
The router generates a new backhaul password.
